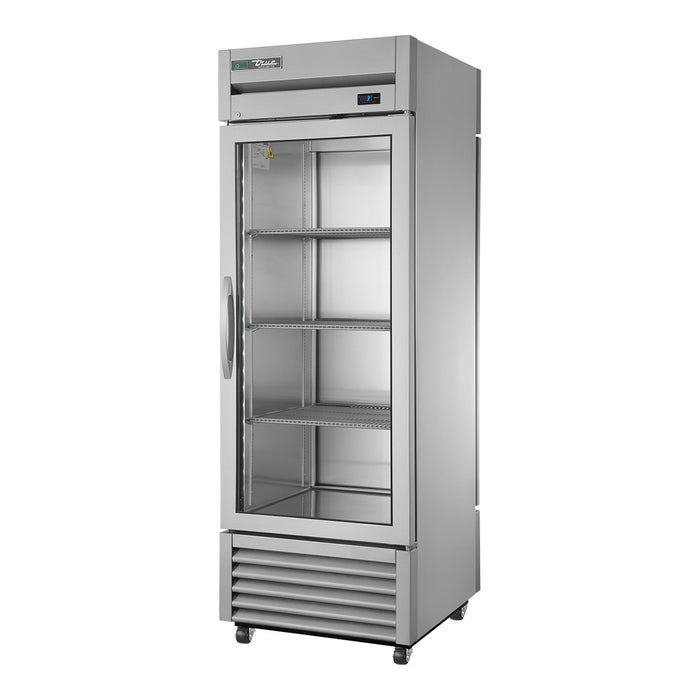

True T-23G-PT-HC - Pass-Through Upright Fridge, Glass Front Door, Solid Rear Door 686mm 438L
The True T-23G-PT-HC has a door on both sides, so the kitchen can stock it from the back while front-of-house staff take what they need from the front. The front door is glass with LED lighting behind it, letting servers see what's ready, while the rear door is solid. Inside are 438 litres of net storage at 0.5°C to 3.3°C on 4 shelves. At 818 mm deep it is 68 mm deeper than the single-sided T-23G-HC, so check the space or wall opening it will sit in.
Key features:
- Pass-through design: a glass swing door at the front and a solid swing door at the rear
- Stainless steel front and rear, with aluminium sides
- 438 litres net (651 litres gross) on 4 adjustable heavy-duty PVC-coated shelves
- LED interior lighting and locks as standard
- Forced-air refrigeration to keep temperatures even through the cabinet
- Digital temperature control with R290 hydrocarbon refrigerant
- Self-closing doors with "Positive seal" magnetic gaskets
- Bottom-mounted compressor and coil, with True's patented RCU feature to help reduce debris on the coil
- Heavy-duty lock-in-place castors
Specifications:
- Model: True T-23G-PT-HC (order code T-23G-PT-HC~FGD01)
- Capacity: 438 litres net, 651 litres gross
- Dimensions: 686 W x 818 D x 2074 H mm (depth excludes 41 mm for the door handle)
- Weight: 146 kg
- Temperature range: 0.5°C to 3.3°C
- Test conditions: 25°C room at 60% relative humidity, to EN 23953 (temperature class M1)
- Refrigerant: R290
- Power: single-phase 220–240 V, 50–60 Hz, 1.3 A running current, 299 W, supplied with a 2.74 m power cord
- Energy use: 1.64 kWh per 24 hours (602 kWh per year)
- Doors: 1 glass door at the front, 1 solid door at the rear; right-hinged as standard or left-hinged
- Shelves: 4 supplied, 582 x 591 mm each, internal net height 1300 mm
- Display area: 0.69 square metres
- Interior: clear-coated aluminium with a stainless steel base
- Defrost: automatic
- Castors: heavy-duty lock-in-place, 64 mm diameter (83 mm high)
- Packed size for delivery: 909 x 788 x 2134 mm, 157 kg
Good to know before you buy:
- Access: the unit is 686 mm wide and 818 mm deep, plus 41 mm for the handle. Packed, it is 909 x 788 x 2134 mm and 157 kg. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include moving it inside or unpacking, so measure the route in.
- Door space: both doors need room to swing open. Air is drawn in at the front and vented at the rear, so keep the front grille clear.
- Power: single-phase 220–240 V, 1.3 A while running, 2.74 m cord.
- Pricing: This model is priced on application. Ask us for a quote.
Compare similar models:
- True T-23G-PT-HC 1G-1G: glass doors on both sides, 1.38 square metres of display area
- True T-23PT-HC: solid doors front and rear, rated for rooms up to 40°C
- True T-23G-HC: single-sided version with one glass door, 750 mm deep
- True T-23G-2-HC: single-sided, with two half-height glass doors
Common questions:
What is a pass-through fridge for?
It has doors on both faces, so one side can load it and the other side can unload it. That suits a fridge set between a prep kitchen and a servery, where both teams need access without crossing paths.
Is it suited to a hot kitchen?
True tests this model at 25°C and 60% relative humidity, as a glass-door display unit. For a hotter spot, the all-solid T-23PT-HC is rated Climate Class 5 for rooms up to 40°C.
Do the doors lock?
Yes. Locks are standard on this model.
See all our upright fridges.
Warranty: True 5-year parts and labour warranty, including the compressor.
