Commercial Rack Conveyor Dishwashers

When do you need a rack conveyor dishwasher?

When a pass through dishwasher can no longer keep up. A rack conveyor dishwasher moves racks automatically through the machine, so staff simply load one end and unload the other in a continuous flow. It is the standard choice for hotels, clubs, hospitals, aged care, schools and large restaurants serving hundreds of covers.

How to choose a rack conveyor

Capacity

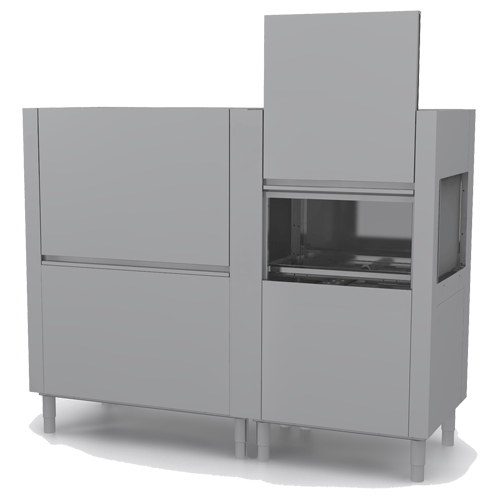

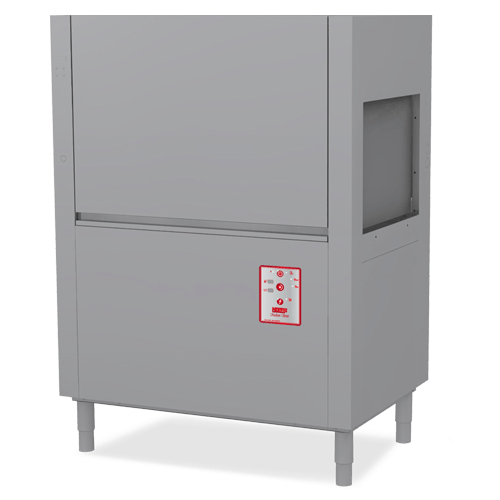

The Norris Madison IR120 washes up to 120 racks an hour, and the larger IR200 is built for even higher volumes. The Fagor CCO-120 compact conveyor suits kitchens with limited space, while the Fagor CCO-180 Concept conveyor is built for high-volume operations.

Direction of travel

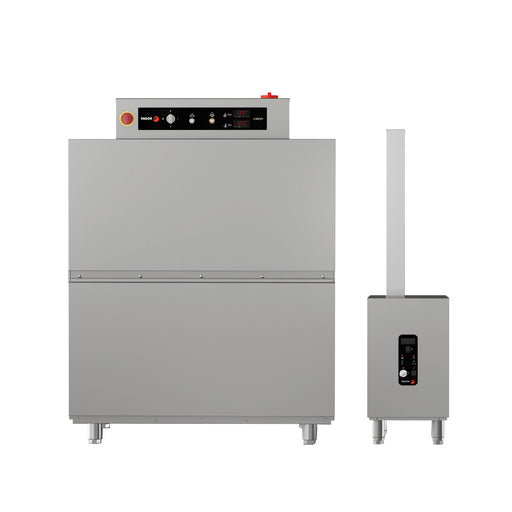

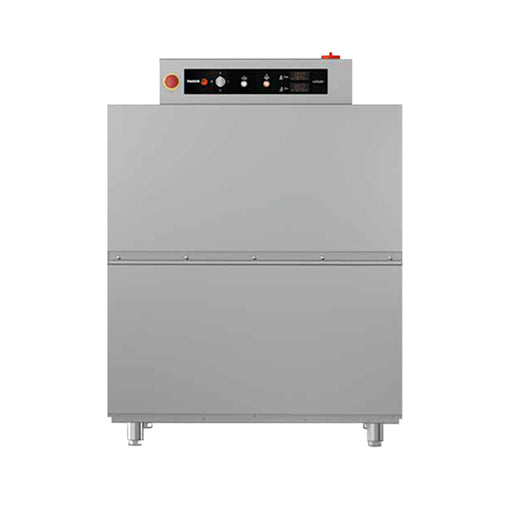

Conveyors are built to run left-to-right or right-to-left to suit your dish area layout. The Fagor models come in right entrance (CCO-120DCW, CCO-180DCW) and left entrance (CCO-120ICW, CCO-180ICW) versions.

Drying units

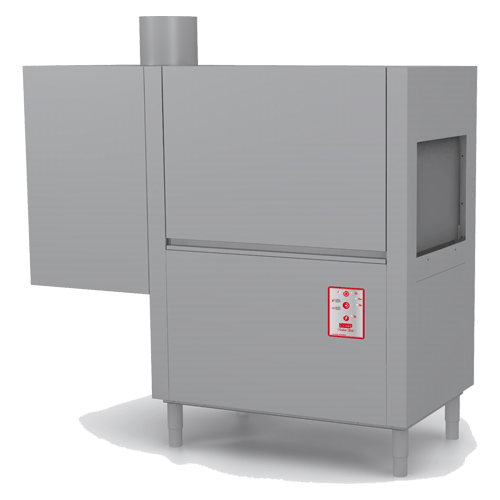

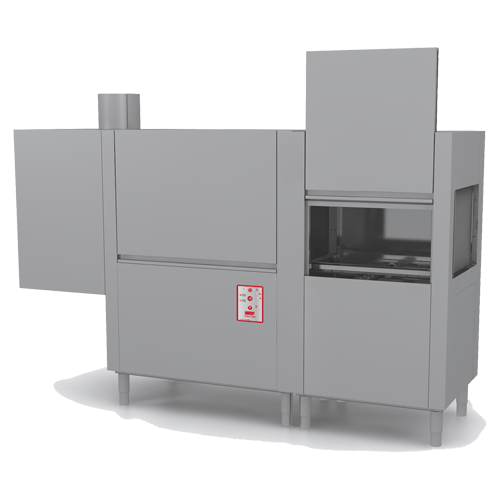

A drying unit at the exit end blows hot air over the clean ware, so it comes out dry and ready to use and less steam escapes into the kitchen. The Norris Madison IR120 and IR200 are available with drying units.

Build and hygiene

The Fagor conveyors are built in AISI-304 stainless steel with removable wash arms and rinse jets for cleaning, wash temperatures of 50°C to 65°C and rinse temperatures of 70°C to 85°C, an emergency stop and a door safety lock.

Planning the installation

A rack conveyor is a major installation. Plan the space, direction of flow, inlet and outlet tabling, water, drainage, power (usually 3-phase) and steam extraction with your installer before ordering. We are happy to help with product information for your layout.

Made to order and quoted models

The Norris Madison IR120 and IR200 are supplied on a quote basis. Click Get a Quote on these models for current pricing and delivery timing.

Delivery, warranty and our price-beat guarantee

We deliver Australia-wide by tailgate truck. Every machine comes with the manufacturer's warranty, and prices are shown ex GST with the GST-inclusive price alongside. Found a lower price? Send us the link under our Price-Beat Guarantee and we'll send you a one-off discount code.

Rack conveyor FAQs

How many racks an hour do I need?

Count the racks you wash in your busiest hour across plates, cups, cutlery and trays, and allow room to grow. If you are under around 60 racks an hour, a pass through dishwasher is usually enough.

Do you deliver Australia-wide?

Yes. We deliver to every state by tailgate truck. Installation by licensed trades is required.
