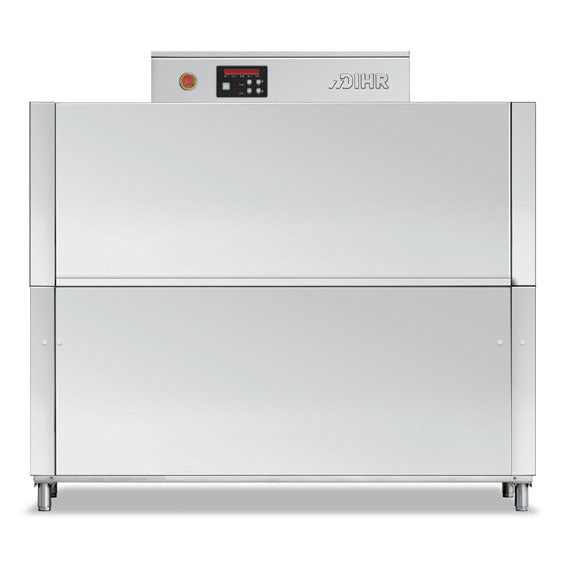

Dihr RX 164E - Compact Rack Conveyor Dishwasher 150 Racks per Hour

Dihr RX 164E - Compact Rack Conveyor Dishwasher 150 Racks per Hour

The Dihr RX 164E is a compact rack conveyor dishwasher with a prewash zone, for busy restaurants, hotels, aged care and staff canteens washing large volumes of crockery. It processes 86 to 150 racks per hour through prewash, wash and rinse, with racks moving automatically from right to left. Compared with the RX 101E it adds the prewash stage and roughly 50% more output, in a longer 1880mm body.

Key features:

• 86 to 150 racks per hour, prewash plus wash plus rinse
• Right to left operation
• DRIVE speed variator with 5 conveyor speeds
• Traction system with built-in clutch to prevent derailing
• Simple, intuitive touch control panel
• Insulated, counterbalanced double-skin door with anti-drop safety system
• Self-cleaning vertical wash pumps, protected from electrical overloads
• AISI 304 stainless steel boilers and stainless steel wash and rinse arms
• Sloped radial wash tanks, automatic drain valve, built-in rinse aid and detergent dispensers with booster pump

Specifications:

• Model: Dihr RX 164E
• Output: 86 to 150 racks per hour
• Rack size: 500 x 500mm, maximum item height 450mm
• Dimensions: 1880 W x 715 D x 1565 H mm (1900 mm with the door open)
• Weight: 270 kg
• Power: 23.6 kW, three phase
• Non-return valve to prevent water backflow
• Made in Italy

Good to know before you buy:

• Power: 23.6 kW on three-phase power. It must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: it needs water and drain connections made by a licensed plumber.
• Layout: it runs right to left, so plan your dirty and clean sides, inlet and outlet tabling and loading space around that.
• Access: at 1880mm long and 270 kg, check access into your kitchen. Delivery is by tailgate truck to the front of your premises.

Compare similar models:

• Dihr RX 101E: shorter 1080mm conveyor without prewash, 66 to 100 racks per hour
• Dihr RX 246: 100 to 250 racks per hour with reinforced double rinse and HACCP monitoring
• Dihr RX 296: 135 to 300 racks per hour, 2700mm long

Common questions:

What does the prewash zone do?
It adds a prewash stage ahead of the wash and rinse zones. Dihr rates the RX 164E at 86 to 150 racks per hour, against 66 to 100 for the RX 101E without prewash.

Which way do racks travel?
Scots Ice lists the RX 164E as right to left operation. Contact us with your kitchen plan to confirm the configuration and get a quote.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial rack conveyor dishwashers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
