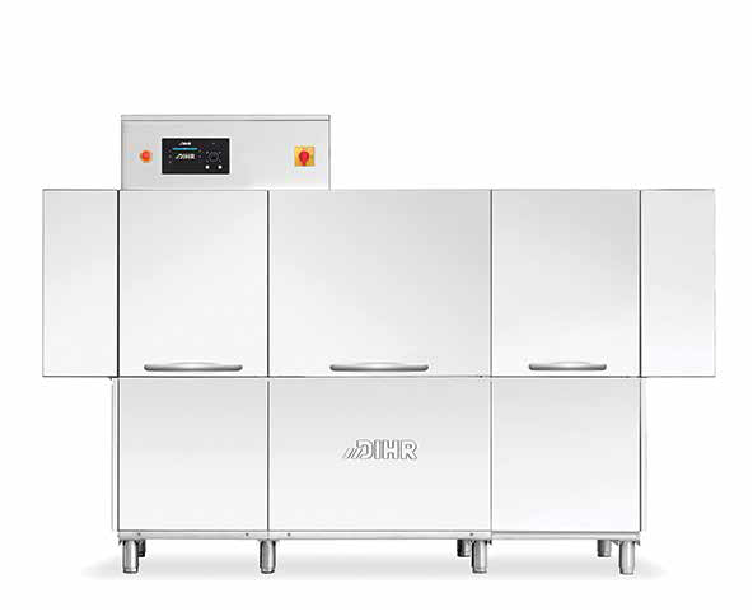

Dihr RX 296 - Rack Conveyor Dishwasher 300 Racks per Hour

Dihr RX 296 - Rack Conveyor Dishwasher 300 Racks per Hour

The Dihr RX 296 is the highest-output rack conveyor in the Dihr range we carry, built for large hotels, hospitals, event venues and institutional kitchens. It processes 135 to 300 racks per hour with a reinforced double rinse, and an integrated HACCP interface constantly monitors key operating parameters. It shares its features with the RX 246 but is 600mm longer (2700mm), with higher output.

Key features:

• 135 to 300 racks per hour, wash plus pre-rinse and rinse
• Reinforced double rinse
• 5.7 inch TFT display with soft-touch keypad and IPX5 rated electronic board
• Integrated HACCP interface that constantly monitors key operating parameters
• SMART DRIVE speed variator with 5 speeds; traction system with built-in clutch to prevent derailing
• Acid-proof AISI 316 stainless steel boilers, fully insulated to reduce heat loss
• Acid-proof radial wash tanks in AISI 316 stainless steel
• Self-cleaning vertical wash pumps, protected from electrical overloads
• 1-DRAIN centralised drain; rinse aid and detergent dispensers

Specifications:

• Model: Dihr RX 296
• Output: 135 to 300 racks per hour
• Rack size: 500 x 500mm, maximum item height 450mm
• Dimensions: 2700 W x 805 D x 1830 H mm (2120 mm with the door open)
• Weight: 400 kg
• Power: 21.58 kW, three phase
• Made in Italy

Good to know before you buy:

• Access: at 2700mm long and 400 kg, this machine needs a clear route into your kitchen and suitable moving equipment. Delivery is by tailgate truck to the front of your premises.
• Power: 21.58 kW on three-phase power. It must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: it needs water and drain connections made by a licensed plumber, with a single centralised drain.
• Layout: plan inlet and outlet tabling, loading space and the direction of travel before you order.

Compare similar models:

• Dihr RX 246: same features in a 2100mm body, 100 to 250 racks per hour
• Dihr RX 164E: compact 1880mm conveyor with prewash, 86 to 150 racks per hour
• Dihr RX 101E: compact 1080mm conveyor, 66 to 100 racks per hour

Common questions:

How does it differ from the RX 246?
Both have the double rinse, HACCP interface and AISI 316 tanks and boilers. The RX 296 is 2700mm long versus 2100mm, and is rated at 135 to 300 racks per hour versus 100 to 250.

How do I order one?
Rack conveyors are set up to suit your layout. Contact us with your kitchen plan and we will confirm the configuration and quote.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial rack conveyor dishwashers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
