Adler DWA2040 - ECO40 Undercounter Glasswasher, 355 x 430 Rack

Adler DWA2040 - ECO40 Undercounter Glasswasher, 355 x 430 Rack

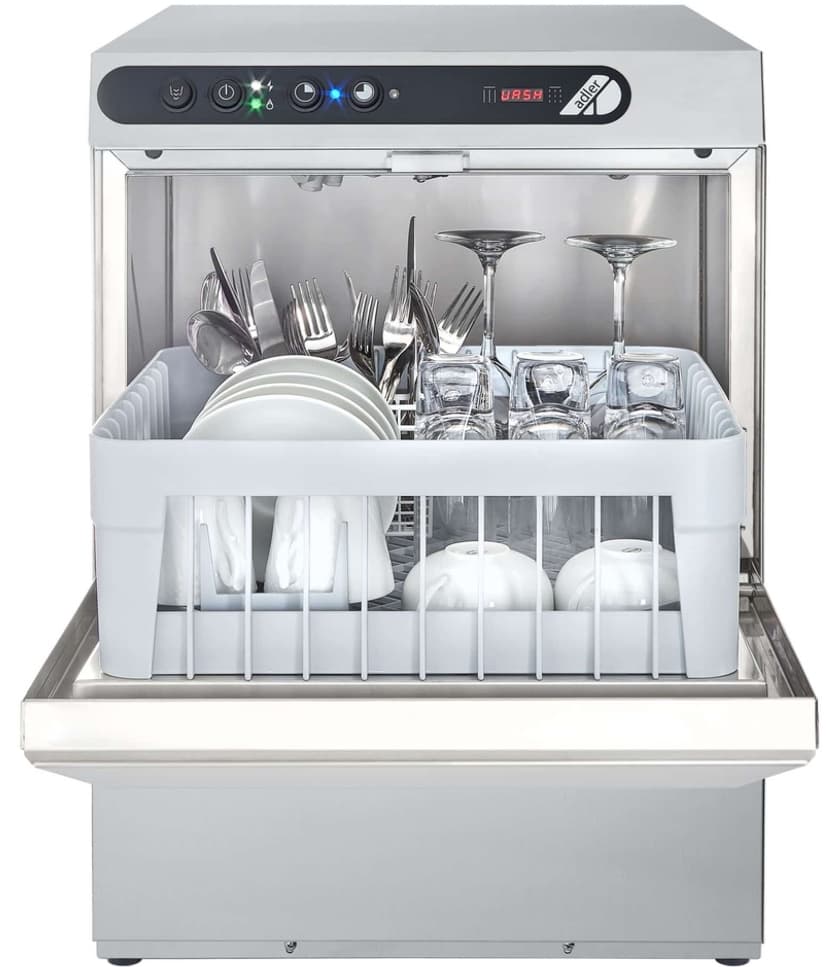

The Adler ECO40 is a compact Italian undercounter glasswasher for bars, cafes and clubs, just 480mm wide so it fits where a full-size dishwasher won't. It takes a 355 x 430mm rack with 270mm of clearance and runs 1 or 2 minute cycles, with built-in rinse aid and detergent pumps, a drain pump and a digital temperature display. ICE rates its water use at 1.7 litres per cycle. It is the smallest Adler machine; the ECO50 (DWA2050) takes 500 x 500mm racks and taller items.

Key features:

• Internal clearance of 270mm
• 2 wash cycles: 1 minute and 2 minutes
• Rinse aid and detergent pumps
• Drain pump
• Digital temperature display

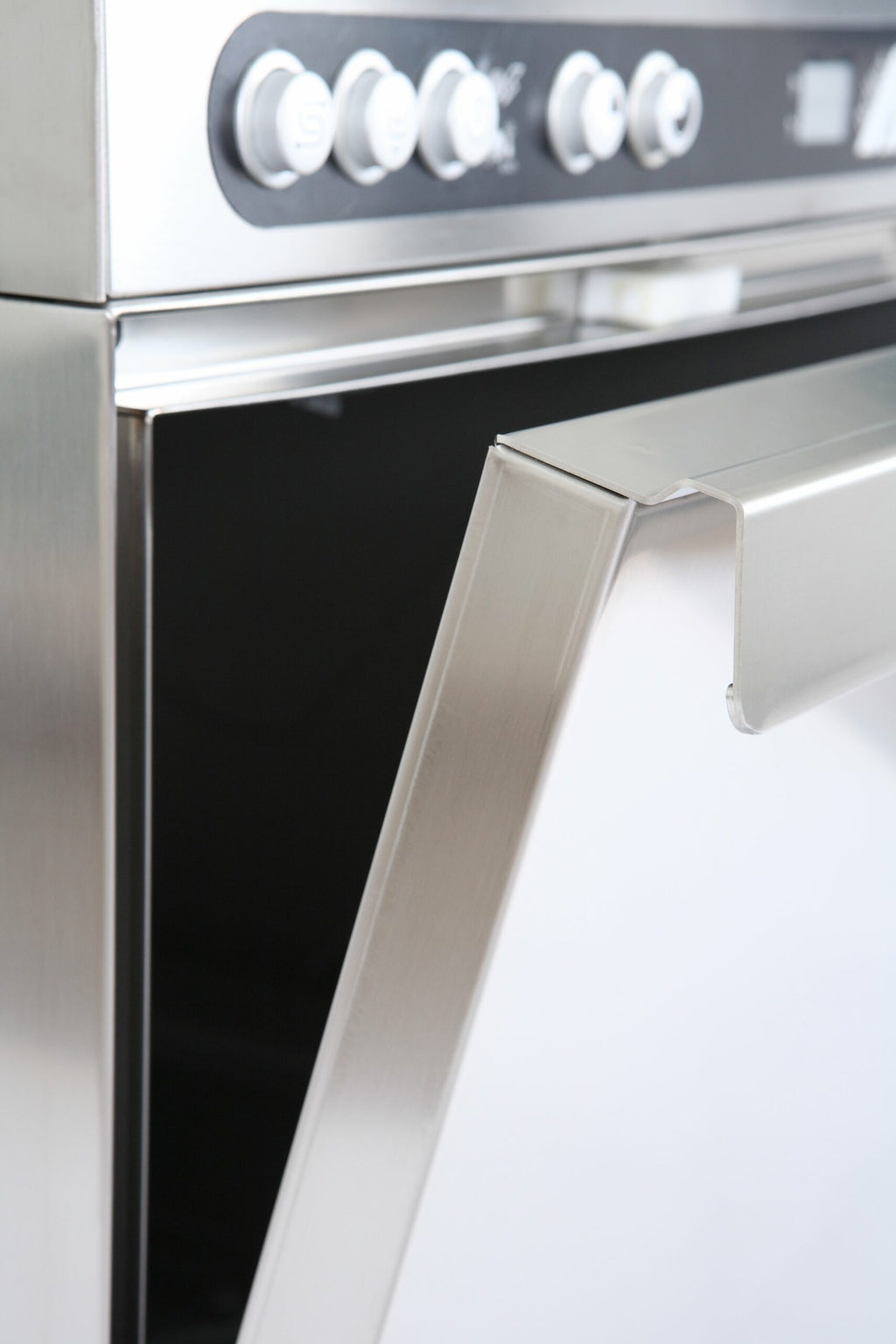

• Double insulated door

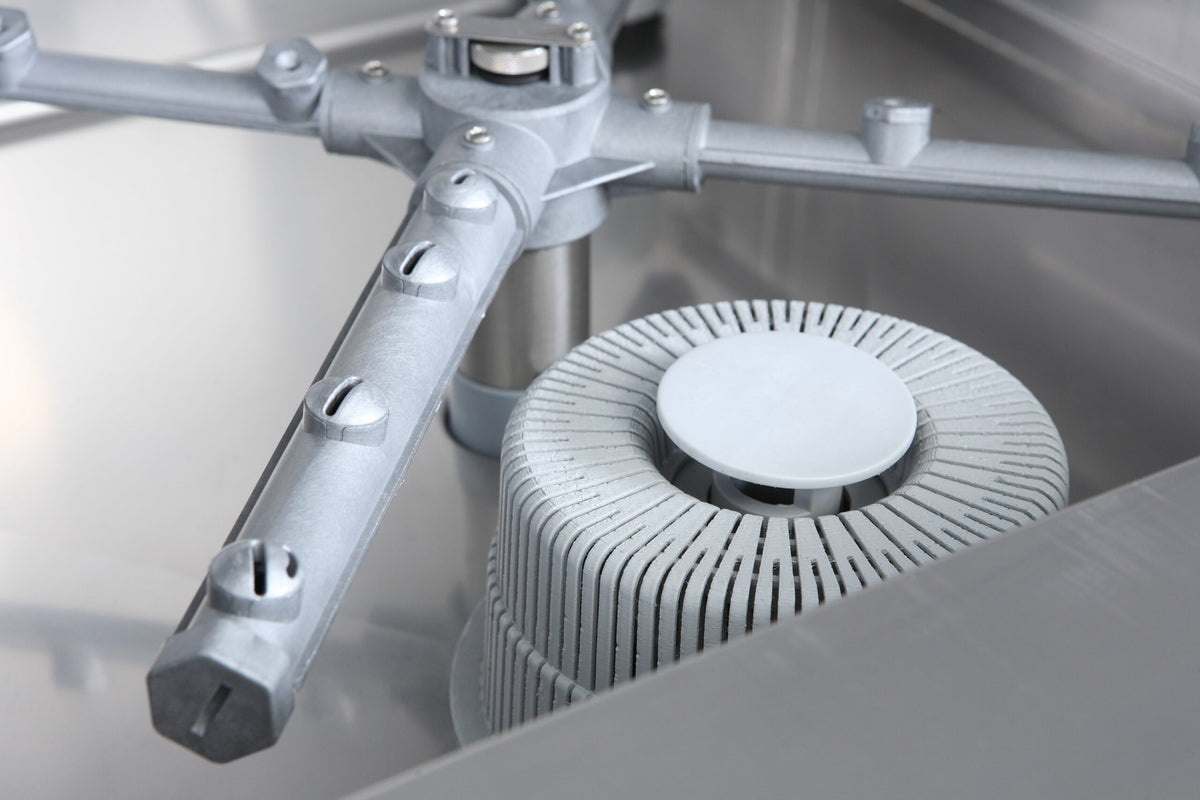

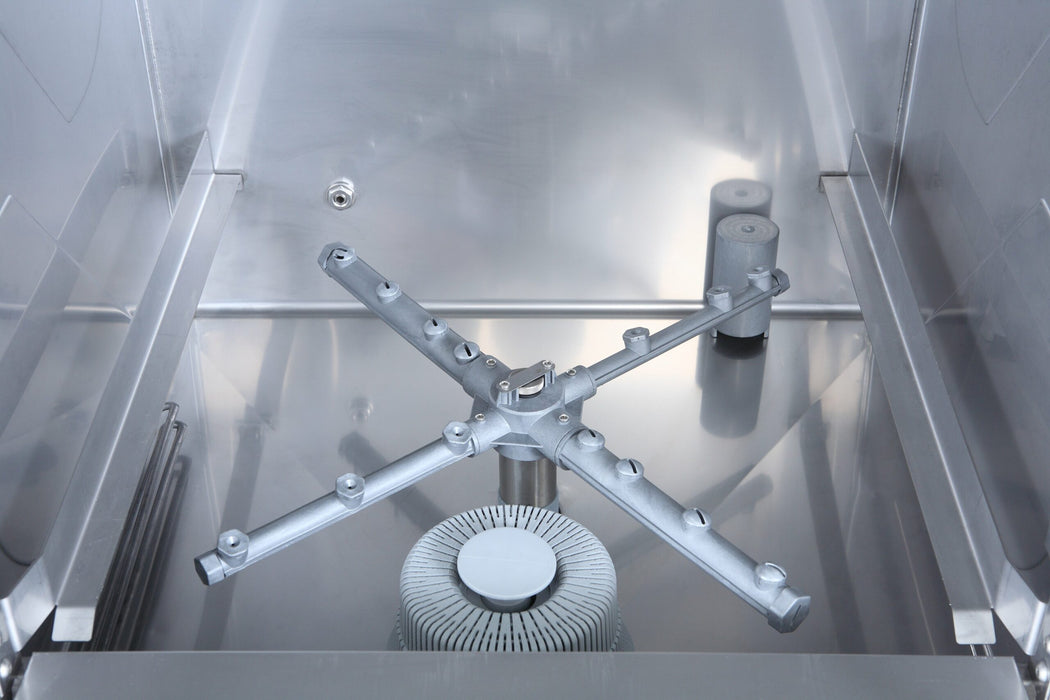

• Stainless steel wash arms and stainless steel inlet hose
• Caleffi pressure control and non-return valve
• Uses 1.7 litres of water per cycle (at 2 bar)

Specifications:

• Model: Adler DWA2040 (ECO40)
• Rack: 1 x 355 x 430mm supplied
• Internal clearance: 270mm
• Dimensions: 480 W x 517 D x 838 H mm (with legs)
• Weight: 38 kg
• Wash tank: 11 litres, 2 kW element
• Boiler: 3 litres, 2.4 kW element
• Wash pump: 0.3 HP
• Water inlet pressure: 2 to 4 bar
• Power: 240V, 2.5 kW, 15 A
• Origin: Italy
• Packed size for delivery: 550 W x 600 D x 890 H mm

Good to know before you buy:

• Power: ICE rates it at 15 A. A 15 A outlet has a larger earth pin than a standard 10 A outlet, so have a licensed electrician fit one if you don't already have it. We supply the equipment only.
• Water and drain: it must be connected to water and drain by a licensed plumber, with an inlet pressure of 2 to 4 bar. It has a drain pump.
• Fit under the counter: it is 838mm high with legs and 480mm wide. Measure the space under your bar before ordering.

Compare similar models:

• Adler DWA2050: ECO50 undercounter dishwasher, 500 x 500mm racks, 340mm clearance
• Adler DWA5550: Topline AT50 Green undercounter, 340mm clearance, 3 cycles
• Adler DWA2000: ECO1000 pass through dishwasher, 420mm clearance

Common questions:

Will it fit tall glasses?
The internal clearance is 270mm. Measure your tallest glasses; for more height, the ECO50 has 340mm.

What plug does it need?
ICE rates it at 240V, 15 A, so it needs a 15 A outlet rather than a standard 10 A one.

Do you install it?
We supply the equipment only. It must be connected by a licensed plumber, and a licensed electrician if a 15 A outlet needs to be fitted.

See all our commercial glasswashers.

Warranty: 2 years parts and 1 year labour under ICE's Extended Gold Star warranty. ICE is Adler's Australian distributor.
