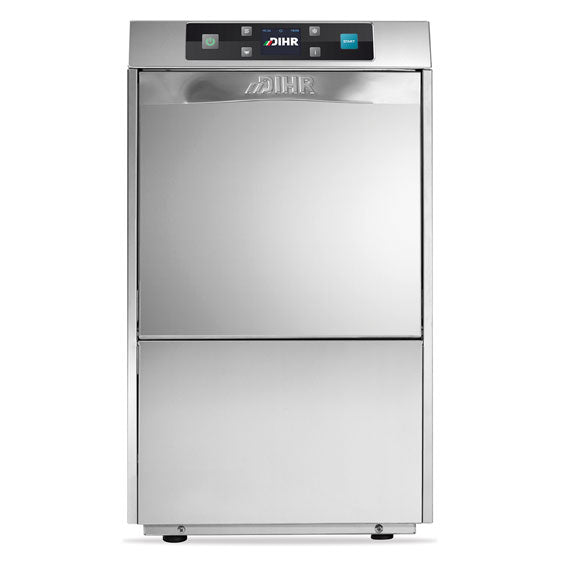

Dihr OPTIMA 400 - Undercounter Glass and Dishwasher 400mm Rack

Dihr OPTIMA 400 - Undercounter Glass and Dishwasher 400mm Rack

The Dihr OPTIMA 400 is a compact undercounter washer for glasses, small plates and cutlery, built for bars and cafes that want more control than a basic glasswasher. An electronic control panel with a TFT screen gives you up to 8 wash cycles, and a pressurised stainless steel boiler with a rinse pump keeps rinse pressure and temperature steady. It uses the same 400 x 400mm rack as the GS 40, but adds the TFT controls, self-diagnostics, peristaltic dispensers and a self-cleaning cycle.

Key features:

• Electronic control panel with TFT screen and multi-colour START key
• Up to 8 wash cycles, from quick glass cycles to longer dish cycles
• 3 to 4 litres of water per cycle
• Pressurised stainless steel boiler with rinse pump for steady rinse pressure
• Double-skin body and insulated double-skin door with safety switch
• Built-in drain pump and non-return valve
• Built-in peristaltic detergent and rinse aid dispensers, with dosage set from the control panel
• Self-diagnostic system and self-cleaning cycle
• Supplied with 2 glass baskets (400 x 400), a saucer holder and a cutlery basket

Specifications:

• Model: Dihr OPTIMA 400
• Rack size: 400 x 400mm, maximum glass/dish height 260mm
• Dimensions: 450 W x 535 D mm, about 715 mm high
• Wash cycles: up to 8, with up to 60 racks per hour on the shortest cycle (55°C water supply)
• Water use: 3 to 4 litres per cycle
• Rinse temperature: 85°C (70°C option on some cycles); wash tank 60°C
• Power: 2.62 kW, single phase 240V 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain hose 24mm
• Noise: about 60 dB(A)
• Made in Italy

Good to know before you buy:

• Glass height: the maximum item height is 260mm, so check your tallest glasses and jugs before you order. The GS 40 takes items up to 305mm.
• Power: 2.62 kW on single phase 240V. Have a licensed electrician confirm a suitable circuit. We supply the equipment only.
• Water and drain: it needs a water connection and a drain, connected by a licensed plumber. Dihr specifies water hardness of 2–8 °F (French degrees), so ask your plumber whether your site needs a softener.
• Access: a compact 450mm wide unit, delivered by tailgate truck to the front of your premises. Bringing it inside and unpacking are not included.

Compare similar models:

• Dihr GS 40: same 400 x 400mm rack with a single 2 minute cycle and 305mm glass height
• Dihr OPTIMA 500: same TFT controls with a larger 500 x 500mm rack and 340mm height
• Dihr GS 50 ECO: 500 x 500mm rack for plates, single 2 minute cycle

Common questions:

Can it wash plates as well as glasses?
Yes, it is a glass, dish and cutlery washer, with a 400 x 400mm rack and 260mm of height. For full-size dinner plates, the 500 x 500mm OPTIMA 500 is the better fit.

Do I need to buy dispensers?
No. Peristaltic detergent and rinse aid dispensers are built in, and you set the dosage from the control panel.

Do you install it?
We supply the equipment only. It must be connected by a licensed plumber and a licensed electrician in your area.

See all our commercial glasswashers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
