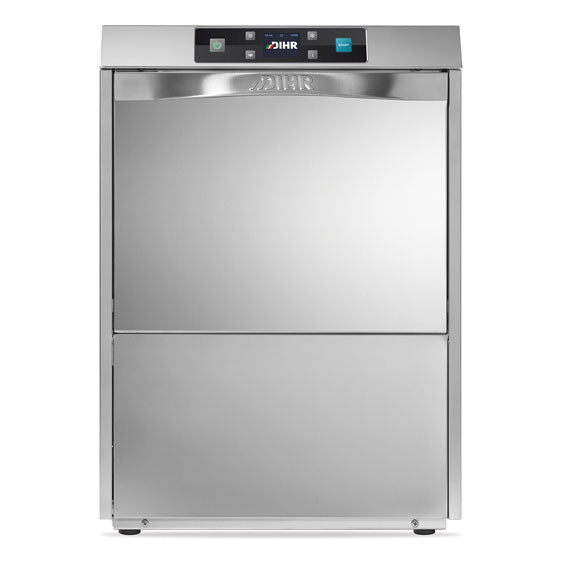

Dihr OPTIMA 500 - Undercounter Glass and Dishwasher 500mm Rack

Dihr OPTIMA 500 - Undercounter Glass and Dishwasher 500mm Rack

The Dihr OPTIMA 500 is a full-size undercounter washer for restaurants and cafes that wash plates, glasses and cutlery in the one machine. It takes 500 x 500mm racks with 340mm of height, and its TFT control panel offers up to 8 wash cycles, from a 60 second quick wash to a 6 minute heavy cycle. It is the step up from the single-cycle GS 50 ECO, adding a pressurised boiler with rinse pump, peristaltic dispensers, self-diagnostics and a self-cleaning cycle.

Key features:

• Electronic control panel with TFT screen and multi-colour START key
• Up to 8 wash cycles, including a dedicated glass cycle
• 3.5 to 7 litres of water per cycle, depending on the cycle
• Pressurised stainless steel boiler with rinse pump for steady rinse pressure
• Double-skin body and insulated double-skin door with safety switch
• Built-in drain pump and non-return valve
• Built-in peristaltic detergent and rinse aid dispensers, with dosage set from the control panel
• Self-diagnostic system and self-cleaning cycle
• Supplied with a plate basket (500 x 500), a large mesh basket and a cutlery basket

Specifications:

• Model: Dihr OPTIMA 500
• Rack size: 500 x 500mm, maximum glass/dish height 340mm
• Dimensions: 600 W x 610 D x 850 H mm
• Weight: about 65 kg
• Wash cycles: up to 8, from 60 seconds (up to 60 racks per hour) to 360 seconds
• Water use: 3.5 to 7 litres per cycle
• Boiler: 14 litres, rinse set at 85°C; wash tank set at 60°C
• Power: single phase 240V 50Hz, 3.6–3.7 kW
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain hose 24mm
• Noise: about 61 dB(A)
• Made in Italy

Good to know before you buy:

• Bench height: it stands 850mm high, so check it fits under your bench.
• Power: single phase 240V at around 3.6–3.7 kW, which is more than a standard 10 A power point supplies. Have a licensed electrician provide a suitable circuit. We supply the equipment only.
• Water and drain: it needs a water connection and a drain, connected by a licensed plumber. Dihr specifies water hardness of 2–8 °F (French degrees), so ask your plumber whether your site needs a softener.
• Access: delivered by tailgate truck to the front of your premises. Bringing it inside and unpacking are not included.

Compare similar models:

• Dihr GS 50 ECO: same rack size, simpler single 2 minute cycle
• Dihr OPTIMA 400: same TFT controls in a compact 450mm wide body with a 400 x 400mm rack
• Dihr HT 11 ECO T: hood type pass-through dishwasher for higher volumes, three phase

Common questions:

Is it a glasswasher or a dishwasher?
Both. It washes glasses, dishes and cutlery, and has a dedicated glass cycle as well as plate and heavy cycles.

Does it have a drain pump?
Yes. A drain pump and non-return valve are built in, which helps when your drain point is above floor level.

Do you install it?
We supply the equipment only. It must be connected by a licensed plumber and a licensed electrician in your area.

See all our commercial underbench dishwashers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
