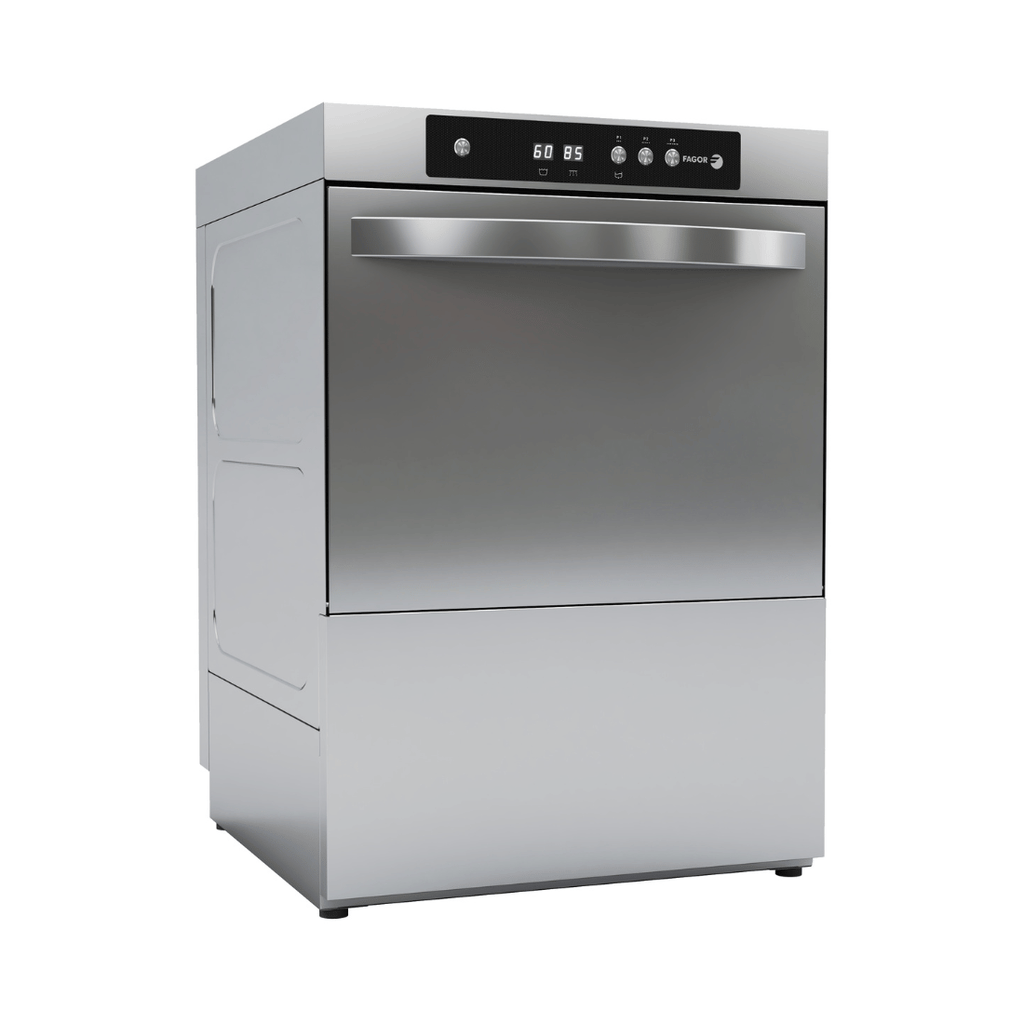

Fagor WUC-502TBD - iNova Undercounter Dishwasher 500mm Basket

Fagor WUC-502TBD - iNova Undercounter Dishwasher 500mm Basket

The Fagor WUC-502TBD is a front-loading iNova Concept undercounter dishwasher that takes full-size 500 x 500 mm baskets, a good fit for cafes, restaurants and bars washing plates, glasses and cutlery under the bench. It runs 90, 120 or 180 second programmes at up to 40 baskets an hour, rinses at mains pressure, and has a drain pump and detergent dispenser built in. It steps up from the 400mm basket WGT-400BDD with bigger racks, a 20 litre tank and 385mm of clearance.

Key features:

• 500 x 500 mm baskets, up to 40 baskets per hour
• Three programmes: 90, 120 and 180 seconds, washing at 60°C and rinsing at 85°C
• Rinses at mains pressure, using 2.2 litres per cycle
• Drain pump, peristaltic detergent dispenser and hydraulic rinse aid dosing as standard

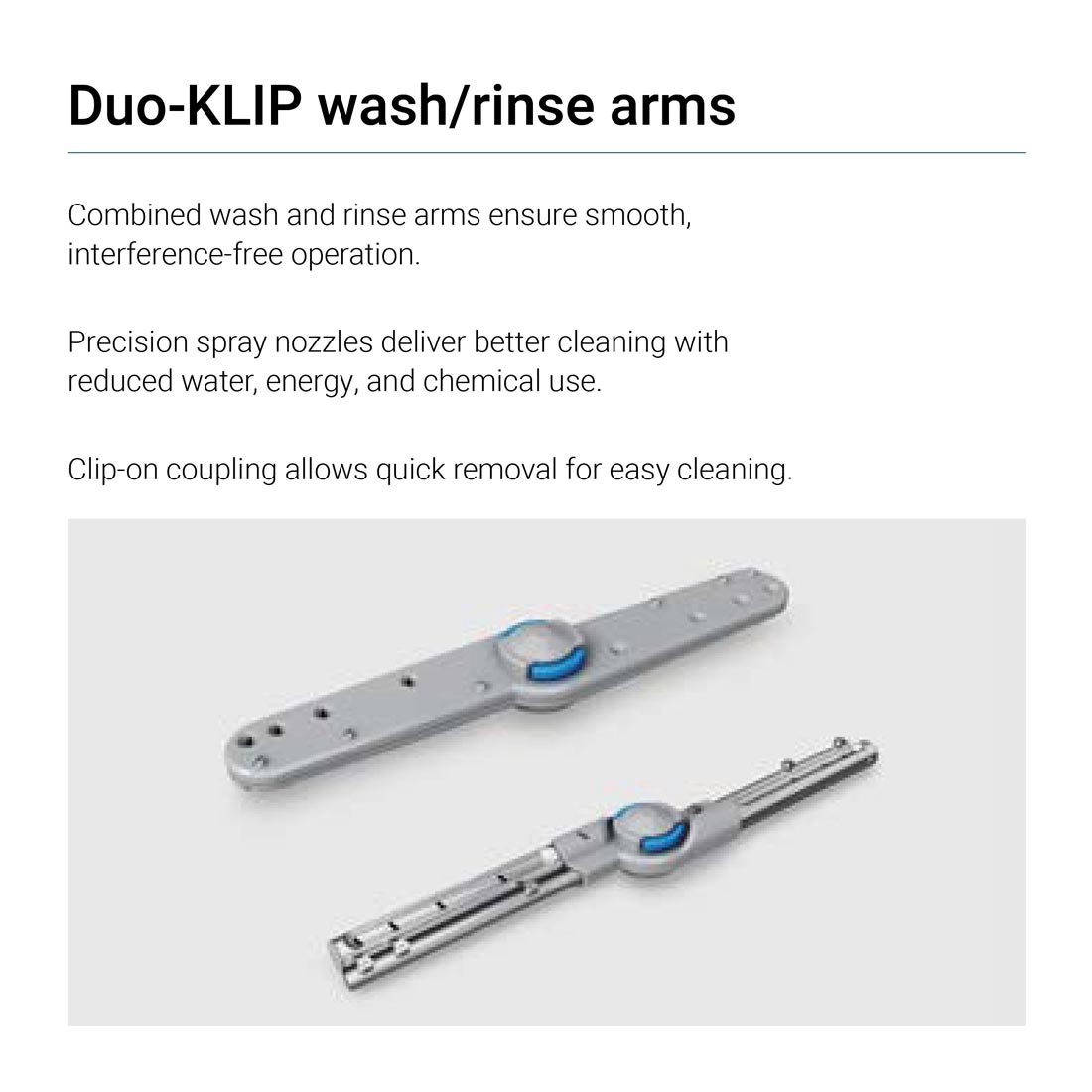

• Duo-KLIP combined wash and rinse arms, top and bottom, that clip off for cleaning
• Dual-flow wash pump with soft start, so light glassware and crockery stay in place
• Volumetric rinse partly drains dirty wash water before rinsing, saving detergent and heating energy
• Triple-stage filtration and a stamped, sloped tank that drains completely
• Soundproofed double-skin door with a magnetic safety switch; two-digit LED displays show temperatures and error codes

Specifications:

• Model: Fagor WUC-502TBD
• Basket size: 500 x 500 mm
• Clearance: 385mm maximum ware height
• Output: up to 40 baskets per hour
• Wash tank: 20 litres, 2.8 kW
• Boiler: 7 litres, 2.8 kW
• Dimensions: 576 W x 605 D x 835 H mm
• Weight: 51 kg
• Power: 3.48 kW, 240V single phase, 15 A
• Water supply: 200–400 kPa, inlet water up to 60°C, 3/4 inch connection
• Water use: 2.2 litres per cycle
• Supplied: 1 glass basket, 1 plate basket (16–18 plates) and 1 cutlery basket
• Packed size for delivery: 660 x 745 x 1030 mm, 61 kg

Good to know before you buy:

• Water and drain: water and drain must be connected by a licensed plumber. Fagor's spec sheet calls for a softened cold water supply at 200–400 kPa, and water softeners are available as an accessory. We supply the equipment only.
• Power: it is rated at 15 A on 240V single phase, so it needs a 15 A outlet rather than a standard 10 A power point. Have a licensed electrician check your supply.
• Under-bench fit: it is 835mm high, 576mm wide and 605mm deep. Measure the space under your bench before ordering.
• Watermark: FED lists it as Watermark approved.

Compare similar models:

• Fagor WGT-400BDD: smaller iNova glass and dishwasher with 400 x 400 mm baskets
• Fagor WHC-502TBD: iNova pass-through hood dishwasher, same basket size, 415V three-phase
• Asber GE-500BDD: Tech Line underbench dishwasher

Common questions:

What baskets come with it?
One 500 x 500 mm glass basket, one plate basket that holds 16 to 18 plates, and a cutlery basket. Ask us if you need extra baskets.

Do I need a water softener?
Fagor's spec sheet describes the inlet as a softened cold water connection and lists water softeners as an optional accessory. If your water is hard, ask us about adding one.

Do you install it?
We supply the equipment only. It must be connected by a licensed plumber, with the power supply checked by a licensed electrician.

See all our commercial underbench dishwashers.

Warranty: 2 years parts and labour.
