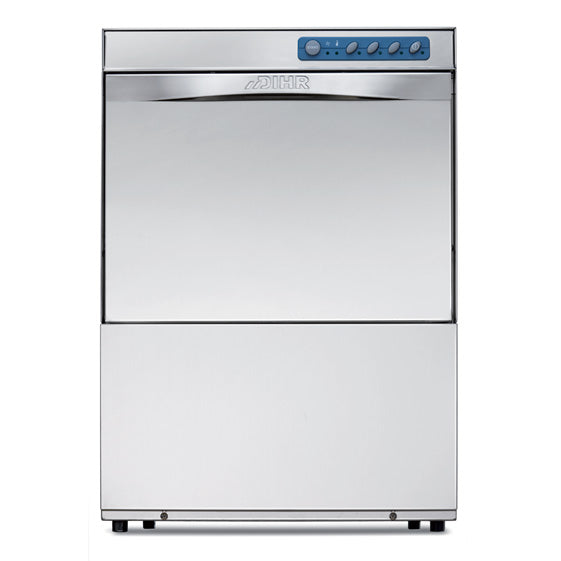

Dihr GS 50 ECO - Undercounter Dishwasher 500mm Rack

Dihr GS 50 ECO - Undercounter Dishwasher 500mm Rack

The Dihr GS 50 ECO is a straightforward undercounter dishwasher for cafes, small restaurants and takeaways that need to wash plates, bowls and glasses without fuss. It takes full-size 500 x 500mm racks with 320mm of clearance and runs one 2 minute cycle on just 2.3 litres of water. Compared with the OPTIMA 500, it keeps things simple with a single cycle and standard dispensers, while the OPTIMA adds TFT controls, up to 8 cycles and a pressurised boiler.

Key features:

• Full-size 500 x 500mm rack, taking plates up to 345mm diameter and items up to 320mm high
• One 120 second wash cycle with an 85°C rinse
• 2.3 litres of water per cycle
• Up to 30 racks per hour on a 55°C hot water supply
• Two wash and rinse arms
• Sound and heat insulated double-skin door with anti-shock system and safety switch
• Built-in drain pump and non-return valve
• Built-in rinse aid and detergent dispensers
• Supplied with a plate basket (500 x 500), a large mesh basket and a cutlery basket

Specifications:

• Model: Dihr GS 50 ECO
• Rack size: 500 x 500mm, maximum dish height 320mm
• Dimensions: 590 W x 600 D x 850 H mm
• Weight: about 56 kg
• Wash cycle: 1 cycle, 120 seconds
• Output: up to 30 racks per hour with 55°C water (14 racks per hour with 10°C water)
• Water use: 2.3 litres per cycle
• Boiler: 5.7 litres, rinse set at 85°C
• Wash tank: 29 litres, set at 55°C
• Power: 3.45 kW, single phase 240V 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain hose 24mm
• Noise: 63 dB(A)
• Made in Italy

Good to know before you buy:

• Bench height: it stands 850mm high, so check it fits under your bench before ordering.
• Power: at 3.45 kW it draws more than a standard 10 A power point supplies, so have a licensed electrician provide a suitable single-phase circuit. We supply the equipment only.
• Water and drain: it needs a water connection and a drain, connected by a licensed plumber. Dihr specifies water hardness of 2–8 °F (French degrees), so ask your plumber whether your site needs a softener.
• Access: delivered by tailgate truck to the front of your premises. Bringing it inside and unpacking are not included.

Compare similar models:

• Dihr OPTIMA 500: same rack size with TFT controls, up to 8 cycles and a pressurised boiler
• Dihr GS 40: smaller 400 x 400mm glasswasher, 450mm wide
• Dihr LP1 S4: undercounter pot and utensil washer with 400mm clearance, three phase

Common questions:

Will it wash glasses too?
Yes. It takes standard 500 x 500mm racks, so you can run glass racks as well as the supplied plate basket.

How many cycles does it have?
One 2 minute cycle. If you want a choice of quick and heavy-duty cycles, look at the OPTIMA 500.

Do you install it?
We supply the equipment only. It must be connected by a licensed plumber and a licensed electrician in your area.

See all our commercial underbench dishwashers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
