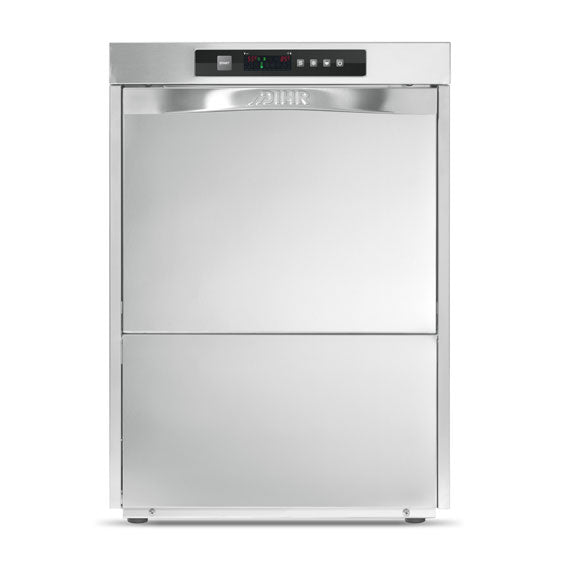

Dihr LP1 S4 - Undercounter Pot and Utensil Washer

Dihr LP1 S4 - Undercounter Pot and Utensil Washer

The Dihr LP1 S4 is an undercounter pot and utensil washer for kitchens that need pots, pans, trays and utensils cleaned properly but have no room for an upright pot washer. It takes a 500 x 500mm rack with 400mm of clearance, much more than a standard undercounter dishwasher, and runs four cycles from 90 seconds to 5 minutes for light or heavy soiling. Unlike the single-phase GS 50 ECO, it runs on three-phase power with a 6 kW boiler.

Key features:

• 400mm of clearance for pots, pans and utensils
• 4 wash cycles of 90, 120, 180 and 300 seconds
• 2.3 litres of water per cycle, rinsing at 85°C
• Intuitive electronic control panel
• Double-skin door with safety switch
• Built-in drain pump and non-return valve
• Two wash and rinse arms
• Built-in rinse aid and detergent dispensers, plus an automatic self-cleaning cycle
• Supplied with a basket, tray support and spatula basket

Specifications:

• Model: Dihr LP1 S4
• Rack size: 500 x 500mm, maximum item height 400mm
• Dimensions: 600 W x 680 D x 850 H mm
• Weight: about 68 kg
• Output: 40 / 30 / 20 / 12 racks per hour with 55°C water; 25 / 25 / 20 / 12 with 10°C water
• Water use: 2.3 litres per cycle
• Boiler: 5.7 litres, 6 kW, rinse set at 85°C; wash tank 16.5 litres at 55°C
• Power: 6.7 kW, 400V three phase plus neutral, 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain hose 24mm
• Made in Italy

Good to know before you buy:

• Power: it needs a 400V three-phase supply and must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: connection by a licensed plumber. Dihr specifies water hardness of 2–8 °F, so ask your plumber whether your site needs a softener.
• Bench height: it is 850mm high and 680mm deep, so check the space under your bench, including room for the door to open.
• Access: delivered by tailgate truck to the front of your premises. Bringing it inside and unpacking are not included.

Compare similar models:

• Dihr GS 50 ECO: undercounter dishwasher with 320mm clearance on single phase power
• Dihr LP1 400 PLUS: hood type pot washer with a 500 x 600mm rack for bakery trays
• Dihr LP1 S8 PLUS: front loading upright pot washer with 805mm tray height

Common questions:

Can it wash plates too?
Yes. It takes standard 500 x 500mm racks, so you can run plates and glasses as well as pots and utensils.

Will a large stock pot fit?
Items up to 400mm high fit on the 500 x 500mm rack. For larger pots and full-size trays, look at the front loading LP S PLUS range.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial underbench dishwashers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
