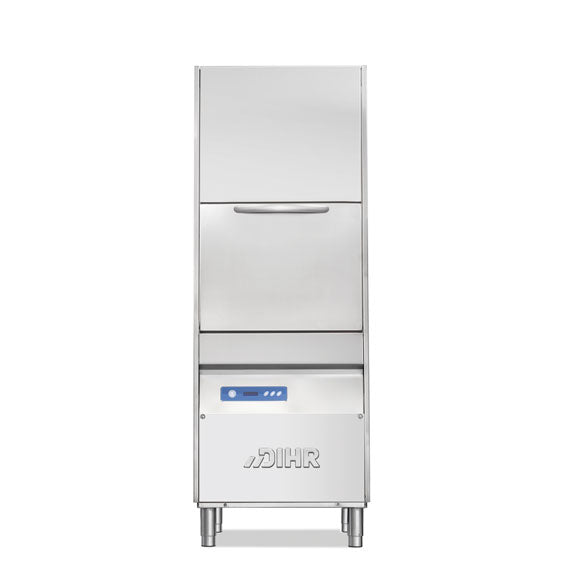

Dihr LP1 S8 PLUS - Front Loading Pot and Utensil Washer 550 x 665 Rack

Dihr LP1 S8 PLUS - Front Loading Pot and Utensil Washer 550 x 665 Rack

The Dihr LP1 S8 PLUS is a front loading upright pot and utensil washer for restaurants, hotels and production kitchens that wash large pots, GN pans, trays and utensils all day. Its 550 x 665mm rack takes items up to 805mm high, and a 5 inch TFT touch display gives you five cycles from 2 to 10 minutes. It is the most compact model in the LP S PLUS range at 690mm wide; the LP1 S8 HR PLUS is the same size with a heat recovery system added.

Key features:

• 550 x 665mm rack with up to 805mm of tray height
• 5 wash cycles of 2, 4, 6, 8 and 10 minutes
• 4.2 litres of water per cycle, rinsing at 85°C
• 5 inch TFT touch display
• Double-skin construction with a deep-formed tank
• Double tank filter with dirt collection system
• Independent stainless steel wash and rinse arms, with a separate rinse pump
• Built-in rinse aid and detergent dispensers; non-return valve
• Supplied with a basket, tray support and spatula basket

Specifications:

• Model: Dihr LP1 S8 PLUS
• Rack size: 550 x 665mm, maximum tray height 805mm
• Dimensions: 690 W x 800 D x 1890 H mm (2275 mm with the door open)
• Weight: 155 kg
• Output: 30 racks per hour on the 2 minute cycle with 55°C water (16 with 10°C water)
• Water use: 4.2 litres per cycle
• Boiler: 15 litres, 6 kW, rinse set at 85°C; wash tank 50 litres at 60°C
• Wash pump: 2180 W
• Power: 8 kW, 400V three phase plus neutral, 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain pipe 32mm
• Made in Italy

Good to know before you buy:

• Power: 8 kW on 400V three phase. It must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: connection by a licensed plumber. Dihr specifies water hardness of 2–8 °F, so ask your plumber about a softener. The Dihr spec sheet lists the drain pump as optional, so ask us if your drain point is above floor level.
• Space: allow 2275mm of height for the door to open, and room in front to load the basket.
• Access: at 155 kg and 1890mm tall it is a big delivery, made by tailgate truck to the front of your premises. Check doorways and plan how you will move it inside.

Compare similar models:

• Dihr LP1 S8 HR PLUS: same size and rack, with heat recovery to cut steam and save energy
• Dihr LP2 S PLUS: larger 700 x 700mm rack, 840mm wide
• Dihr LP3 S PLUS: 850 x 725mm rack, 990mm wide
• Dihr LP4 S8 PLUS: largest 1350 x 725mm rack with 820mm tray height

Common questions:

What fits inside?
The rack is 550 x 665mm with 805mm of height, enough for tall stock pots, GN pans and baking trays standing upright.

Does it need hot water?
No, but hot water helps. Dihr rates it at 30 racks per hour on the 2 minute cycle with 55°C water, or 16 with 10°C water. Longer cycles give the same output either way.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial utensil and pot washers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
