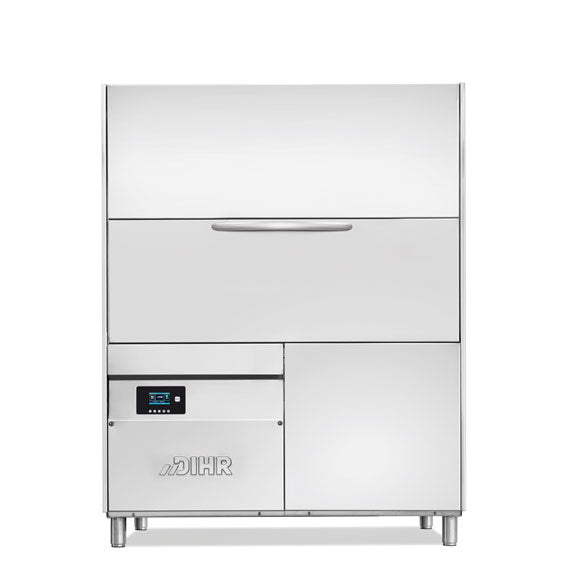

Dihr LP4 S8 PLUS - Front Loading Pot and Utensil Washer 1350 x 725 Rack

Dihr LP4 S8 PLUS - Front Loading Pot and Utensil Washer 1350 x 725 Rack

The Dihr LP4 S8 PLUS is the largest pot and utensil washer in the Dihr LP range, built for hotels, hospitals, central production kitchens and bakeries that wash large volumes of trays, racks, pots and containers. Its 1350 x 725mm rack takes items up to 820mm high, and two 2900 W wash pumps drive the independent stainless steel wash arms. Compared with the LP3 S PLUS, it offers a rack about 500mm wider and 175mm more tray height, in a 1490mm wide body.

Key features:

• Extra-large 1350 x 725mm rack with up to 820mm of tray height
• 4 wash cycles of 3, 6, 9 and 12 minutes
• 8.6 litres of water per cycle, rinsing at 85°C
• Two 2900 W wash pumps plus a rinse pump
• 5 inch TFT touch display
• Double-skin construction with a deep-formed tank and double tank filter with dirt collection
• Independent stainless steel wash and rinse arms
• Automatic drain valve system; non-return valve
• Built-in rinse aid and detergent dispensers; supplied with a basket, tray support and spatula basket

Specifications:

• Model: Dihr LP4 S8 PLUS
• Rack size: 1350 x 725mm, maximum tray height 820mm
• Dimensions: 1490 W x 885 D x 1970 H mm (2295 mm with the door open)
• Weight: 340 kg
• Output: 20 / 10 / 6 / 5 racks per hour (same on 55°C or 10°C water)
• Water use: 8.6 litres per cycle
• Boiler: 20 litres, 9 kW, rinse set at 85°C; wash tank heated by 9 kW, set at 55°C
• Power: 14.8 kW, 400V three phase plus neutral, 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain pipe 32–40mm
• Noise: about 72 dB(A)
• Made in Italy

Good to know before you buy:

• Access: this is a 340 kg machine, 1490mm wide and 1970mm tall. It is delivered by tailgate truck to the front of your premises, and moving it inside will need suitable equipment and wide enough access. Check doorways, corridors and floor loading first.
• Power: 14.8 kW on 400V three phase. It must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: connection by a licensed plumber. Dihr specifies water hardness of 2–8 °F, so ask your plumber about a softener.
• Height: allow 2295mm for the door to open fully.

Compare similar models:

• Dihr LP4 S8 HR PLUS: same rack, with heat recovery to cut steam and save energy
• Dihr LP3 S PLUS: 850 x 725mm rack in a 990mm wide body
• Dihr LP2 S PLUS: 700 x 700mm rack in an 840mm wide body

Common questions:

What can I wash in it?
Anything that fits a 1350 x 725mm rack and 820mm of height: bakery trays and racks, large pots, GN pans, containers and utensils.

Does it need hot water?
Dihr rates it at the same racks per hour on 10°C water as on 55°C water.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial utensil and pot washers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
