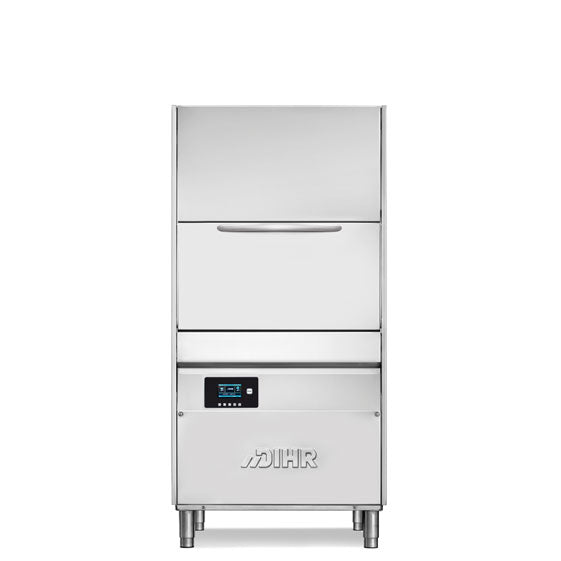

Dihr LP2 S PLUS - Front Loading Pot and Utensil Washer 700 x 700 Rack

Dihr LP2 S PLUS - Front Loading Pot and Utensil Washer 700 x 700 Rack

The Dihr LP2 S PLUS is a front loading pot and utensil washer with a square 700 x 700mm rack, sized for busy restaurant, hotel and catering kitchens that wash wide pots, roasting trays and GN pans in bulk. Two 1750 W wash pumps and a 78 litre wash tank give it plenty of cleaning power, and you choose from four cycles of 3 to 12 minutes on a 5 inch TFT touch display. It is wider than the LP1 S8 PLUS (840mm versus 690mm), with a bigger rack but a lower 645mm tray height.

Key features:

• 700 x 700mm rack with up to 645mm of tray height
• 4 wash cycles of 3, 6, 9 and 12 minutes
• 4.3 litres of water per cycle, rinsing at 85°C
• Two 1750 W wash pumps plus a separate rinse pump
• 5 inch TFT touch display
• Double-skin construction with a deep-formed tank and double tank filter with dirt collection
• Independent stainless steel wash and rinse arms
• Automatic drain valve system; non-return valve
• Built-in rinse aid and detergent dispensers; supplied with a basket, tray support and spatula basket

Specifications:

• Model: Dihr LP2 S PLUS
• Rack size: 700 x 700mm, maximum tray height 645mm
• Dimensions: 840 W x 885 D x 1790 H mm
• Output: 20 / 10 / 6 / 5 racks per hour (same on 55°C or 10°C water)
• Water use: 4.3 litres per cycle
• Boiler: 20 litres, 9 kW, rinse set at 85°C
• Wash tank: 78 litres, 6 kW, set at 55°C
• Power: 12.5 kW, 400V three phase plus neutral, 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain pipe 32mm
• Noise: about 70 dB(A)
• Made in Italy

Good to know before you buy:

• Power: 12.5 kW on 400V three phase. It must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: connection by a licensed plumber. Dihr specifies water hardness of 2–8 °F, so ask your plumber about a softener.
• Access: the machine is 840mm wide, 885mm deep and 1790mm tall. It is delivered by tailgate truck to the front of your premises, so check doorways and plan how you will move it inside.
• Space: leave room in front for the door to open and for loading the large rack.

Compare similar models:

• Dihr LP2 SHR PLUS: same rack and width, with heat recovery
• Dihr LP1 S8 PLUS: narrower 690mm body, 550 x 665mm rack with 805mm tray height
• Dihr LP3 S PLUS: wider 850 x 725mm rack, 990mm body
• Dihr LP4 S8 PLUS: largest 1350 x 725mm rack

Common questions:

Do I need hot water?
Not for output. Dihr rates the LP2 S PLUS at the same racks per hour on a 10°C supply as on a 55°C supply.

Is the 700 x 700mm rack right for me?
It suits wide, low items such as roasting trays, large pans and GN pans. If you mainly wash tall stock pots, the LP1 S8 PLUS gives you 805mm of height.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial utensil and pot washers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
