Dihr LP3 S PLUS - Front Loading Pot and Utensil Washer 850 x 725 Rack

Dihr LP3 S PLUS - Front Loading Pot and Utensil Washer 850 x 725 Rack

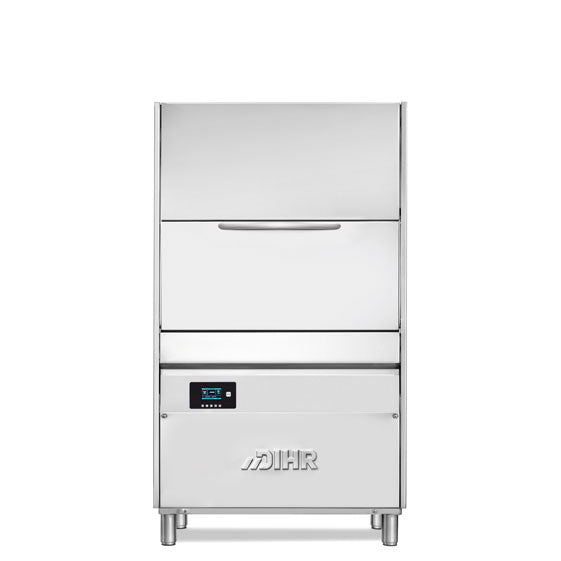

The Dihr LP3 S PLUS is a large front loading pot and utensil washer with an 850 x 725mm rack, built for hotels, institutions and high-volume kitchens washing big roasting trays, baking sheets and pans. Two 2180 W wash pumps power through heavy soil, and four cycles of 3 to 12 minutes are set from a 5 inch TFT touch display. It sits between the LP2 S PLUS (700 x 700mm rack) and the LP4 S8 PLUS (1350 x 725mm rack), at 990mm wide.

Key features:

• 850 x 725mm rack with up to 645mm of tray height
• 4 wash cycles of 3, 6, 9 and 12 minutes
• 4.3 litres of water per cycle, rinsing at 85°C
• Two 2180 W wash pumps plus a separate rinse pump
• 5 inch TFT touch display
• Double-skin construction with a deep-formed tank and double tank filter with dirt collection
• Independent stainless steel wash and rinse arms
• Automatic drain valve system; non-return valve
• Built-in rinse aid and detergent dispensers; supplied with a basket, tray support and spatula basket

Specifications:

• Model: Dihr LP3 S PLUS
• Rack size: 850 x 725mm, maximum tray height 645mm
• Dimensions: 990 W x 885 D x 1790 H mm
• Output: 20 / 10 / 6 / 5 racks per hour (same on 55°C or 10°C water)
• Water use: 4.3 litres per cycle
• Boiler: 20 litres, 9 kW, rinse set at 85°C
• Wash tank: 78 litres, 6 kW, set at 55°C
• Power: 13.36 kW, 400V three phase plus neutral, 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain pipe 32mm
• Noise: about 71 dB(A)
• Made in Italy

Good to know before you buy:

• Power: 13.36 kW on 400V three phase. It must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: connection by a licensed plumber. Dihr specifies water hardness of 2–8 °F, so ask your plumber about a softener.
• Access: at 990mm wide, 885mm deep and 1790mm tall, check your doorways and corridors. It is delivered by tailgate truck to the front of your premises; bringing it inside is not included.
• Space: leave room in front for the door to open and to load the wide rack.

Compare similar models:

• Dihr LP3 SHR PLUS: same rack and width, with heat recovery
• Dihr LP2 S PLUS: smaller 700 x 700mm rack, 840mm wide
• Dihr LP4 S8 PLUS: 1350 x 725mm rack and 820mm tray height
• Dihr LP1 S8 PLUS: compact 690mm body with 805mm tray height

Common questions:

Will full-size baking trays fit?
The rack is 850 x 725mm with 645mm of height, so it suits large trays and roasting pans. Check your largest items against those figures.

Does it need hot water?
Dihr rates it at the same racks per hour on 10°C water as on 55°C water.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial utensil and pot washers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
