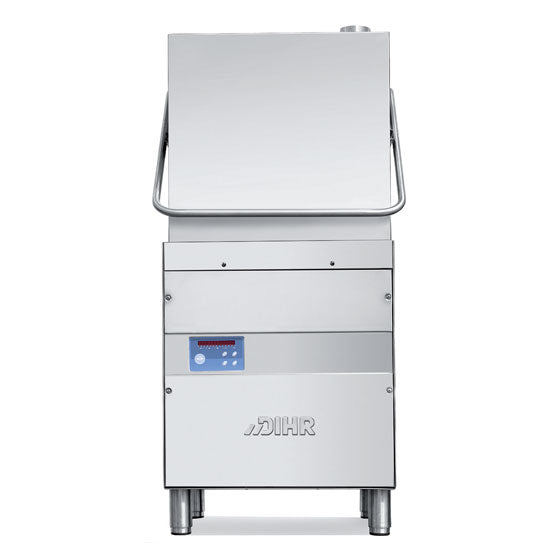

Dihr LP1 400 PLUS - Wide Hood Type Pot and Utensil Washer

Dihr LP1 400 PLUS - Wide Hood Type Pot and Utensil Washer

The Dihr LP1 400 PLUS is a wide-body hood type pot and utensil washer, ideal for bakeries, patisseries and kitchens that wash 600 x 400mm trays, pans and utensils alongside plates. It takes a special 500 x 600mm stainless steel basket as well as standard 500 x 500mm racks, with 400mm of height under the hood. The PLUS rinse pump keeps rinse temperature and pressure constant, and its 9 kW boiler gives up to 35 racks an hour even on cold water.

Key features:

• Wide body takes 600 x 400mm trays and a 500 x 600mm basket, plus standard 500 x 500mm racks
• 400mm maximum item height; plates up to 410mm diameter
• 4 wash cycles of 50, 90, 120 and 180 seconds
• 2.6 litres of water per cycle, rinsing at 85°C
• PLUS system: a rinse pump keeps rinse temperature and pressure constant
• Easy LED electronic control panel
• Independent stainless steel wash and rinse arms
• Built-in rinse aid and detergent dispensers, drain pump, non-return valve and self-cleaning cycle

Specifications:

• Model: Dihr LP1 400 PLUS
• Rack size: 500 x 600mm special stainless steel basket, or 500 x 500mm racks; 600 x 400mm trays
• Dimensions: 720 W x 735 D x 1445 H mm (1915 mm with the hood open)
• Weight: 104 kg
• Output: 72 / 40 / 30 / 20 racks per hour with 55°C water; 35 / 35 / 30 / 20 with 10°C water
• Water use: 2.6 litres per cycle
• Boiler: 15 litres, 9 kW, rinse set at 85°C; wash tank 42 litres at 55°C
• Power: 10.49 kW, 400V three phase plus neutral, 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain hose 28mm
• Construction: single-skin (mono skin) hood
• Made in Italy

Good to know before you buy:

• Power: 10.49 kW on 400V three phase. It must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: connection by a licensed plumber. Dihr specifies water hardness of 2–8 °F, so ask your plumber whether your site needs a softener.
• Height: allow 1915mm of clearance for the hood to open.
• What's included: Scots Ice lists a large mesh basket and tray support with this model. Ask us about extra baskets.

Compare similar models:

• Dihr H 11 T: hood type dishwasher with a standard 500 x 500mm rack, double-skin hood
• Dihr LP1 S4: undercounter pot washer with 400mm clearance, 6.7 kW
• Dihr LP1 S8 PLUS: front loading pot washer with 805mm tray height and a 550 x 665mm rack

Common questions:

Will it take bakery trays?
Yes. The wide body is designed for 600 x 400mm trays and takes a special 500 x 600mm stainless steel basket, which a standard hood type dishwasher can't.

What does PLUS mean?
PLUS models have a rinse pump that holds rinse temperature and pressure constant, so results don't depend on your mains water pressure.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial utensil and pot washers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
