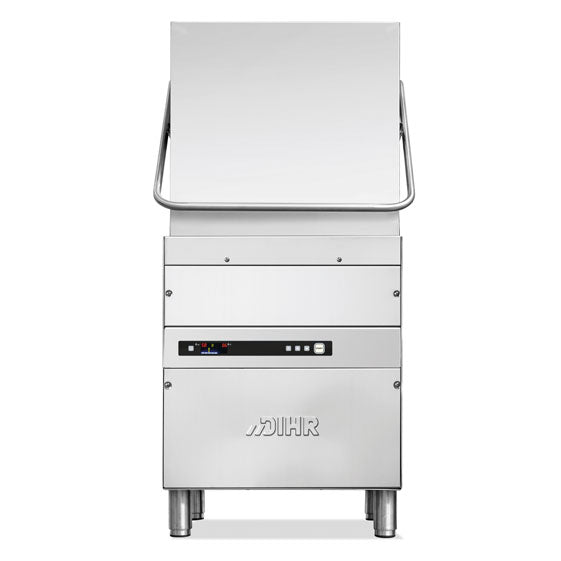

Dihr H 11 T - Hood Type Passthrough Dishwasher Double Skin

Dihr H 11 T - Hood Type Passthrough Dishwasher Double Skin

The Dihr H 11 T is a double-skin hood type pass-through dishwasher for restaurants, hotels and clubs that run hard through every shift. It handles up to 72 racks an hour on hot water, and with its 9 kW boiler Dihr rates it at about 30 racks an hour even on a cold water supply. Against the HT 11 ECO T it adds a double-skin hood, independent stainless steel wash arms and more heating power, in the same 720 x 735mm footprint.

Key features:

• Double-skin hood construction
• 4 wash cycles of 50, 80, 120 and 180 seconds
• Up to 72 racks per hour on a 55°C water supply, about 30–31 racks per hour on 10°C water
• 2.8 litres of water per cycle, rinsing at 85°C
• Independent stainless steel wash arms and polypropylene rinse arms
• Lifting the hood switches the machine on and starts the cycle, with wash and rinse temperature indicators
• AISI 316 stainless steel boiler and polypropylene surface filters
• Built-in rinse aid pump and detergent dispenser, plus a self-cleaning cycle
• Pass-through or corner installation

Specifications:

• Model: Dihr H 11 T
• Rack size: 500 x 500mm; takes plates up to 410mm diameter and 1/1 GN trays (530 x 325mm)
• Dimensions: 720 W x 735 D x 1445 H mm (1880 mm with the hood open)
• Weight: 100 kg
• Output: 72 / 45 / 30 / 20 racks per hour with 55°C water; 31 / 31 / 30 / 20 with 10°C water
• Water use: 2.8 litres per cycle
• Boiler: 10 litres, 9 kW, rinse set at 85°C; wash tank 30 litres at 55°C
• Power: 10.9 kW, 400V three phase plus neutral, 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain hose 24mm
• Supplied with 2 plate baskets (500 x 500), a large mesh basket and a cutlery basket
• Made in Italy

Good to know before you buy:

• Power: 10.9 kW on 400V three phase. It must be connected by a licensed electrician. We supply the equipment only.
• Water and drain: connection by a licensed plumber. It works on hot or cold water, with the best output on a 55°C supply. Dihr specifies water hardness of 2–8 °F, so ask your plumber about a softener.
• Height: allow 1880mm of clearance for the hood to open.
• Drain pump: Dihr lists the drain pump as optional, so ask us if your drain point is above floor level.

Compare similar models:

• Dihr HT 11 ECO T: same size and cycles with a single-skin hood and 6.9 kW draw
• Dihr HT 12 ELECTRON PLUS HR H+: adds heat recovery, a Hygiene+ cycle and a pressurised boiler
• Dihr RX 101E: compact rack conveyor for 66 to 100 racks per hour

Common questions:

Will it keep up if my hot water runs out?
On a 10°C supply Dihr rates it at up to 31 racks per hour, compared with about 22 for the HT 11 ECO T, which has a 6 kW boiler instead of 9 kW.

Does it take GN trays?
Yes. It takes 1/1 gastronorm trays (530 x 325mm) and plates up to 410mm diameter.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial upright dishwashers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
