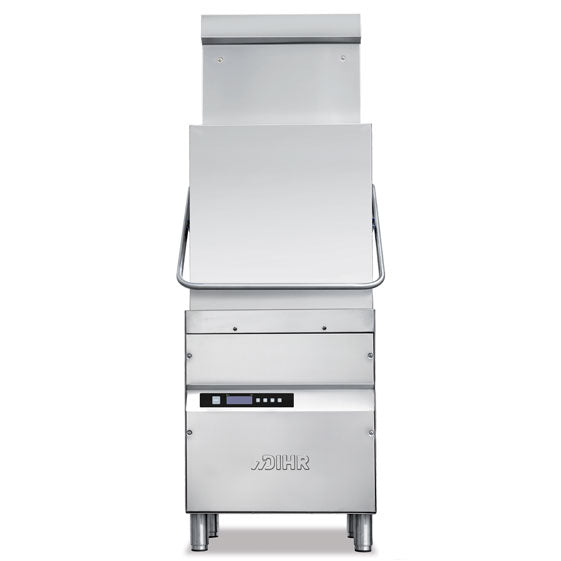

Dihr HT 12 ELECTRON PLUS HR H+ - Hood Type Passthrough Dishwasher with Heat Recovery

Dihr HT 12 ELECTRON PLUS HR H+ - Hood Type Passthrough Dishwasher with Heat Recovery

The Dihr HT 12 ELECTRON PLUS HR H+ is the heat recovery hood type dishwasher in the Dihr range, built for venues that want lower running costs, less steam and high hygiene standards. Its heat recovery (HR) unit captures heat from the steam to warm the incoming cold water, recovering about 6 kWh per hour, and the Hygiene+ (H+) setting adds long, high-temperature cycles. Compared with the HT 11 models it adds the heat recovery hood, a pressurised boiler with rinse pump, double tank filters and peristaltic dispensers.

Key features:

• Heat recovery system, recovering about 6 kWh per hour (Dihr figure, based on the shortest cycle)
• Hygiene+ cycles that run long at high temperature for high hygiene standards
• Cycles from 50 seconds up to 630 seconds, with up to 55 racks per hour on cold water
• 2.6 litres of water per cycle
• Pressurised stainless steel boiler with rinse pump
• Multi-colour backlit control panel, with detergent and rinse aid dosage set from the panel
• Double-skin insulated hood; lifting the hood starts the machine
• Double tank filters with dirt collection system and pump filter
• Stainless steel wash arms and polypropylene rinse arms

Specifications:

• Model: Dihr HT 12 ELECTRON PLUS HR H+
• Rack size: 500 x 500mm; takes plates up to 410mm diameter and 1/1 GN trays (530 x 325mm)
• Dimensions: 720 W x 735 D x 2095 H mm (including the heat recovery unit)
• Weight: 145 kg
• Output with 10°C water: 55 / 40 / 30 / 20 racks per hour on the 50 / 90 / 120 / 180 second cycles
• Water use: 2.6 litres per cycle
• Boiler: 15 litres, 9 kW; wash tank 42 litres at 55°C
• Power: 10.49 kW, 400V three phase plus neutral, 50Hz
• Water connection: 3/4 inch cold water, inlet pressure 200–400 kPa; drain hose 28mm
• Water quality: hardness below 8 °F, conductivity above 200 µS/cm
• Supplied with 2 plate baskets (500 x 500), a large mesh basket and a cutlery basket
• Made in Italy

Good to know before you buy:

• Cold water: this model requires a cold water connection, because the heat recovery unit uses the incoming water to capture heat. Connection by a licensed plumber.
• Water quality: Dihr specifies hardness below 8 °F and conductivity above 200 µS/cm, so ask your plumber whether your water needs treatment.
• Power: 10.49 kW on 400V three phase. It must be connected by a licensed electrician. We supply the equipment only.
• Height: the machine is 2095mm tall with the heat recovery unit, so check your ceiling and any overhead shelving.

Compare similar models:

• Dihr H 11 T: double-skin hood type without heat recovery, 1445mm high
• Dihr HT 11 ECO T: single-skin hood type, 6.9 kW
• Dihr RX 101E: compact rack conveyor for higher volumes, 66 to 100 racks per hour

Common questions:

What do HR and H+ mean?
HR is the heat recovery system, which reuses heat from the steam to warm the incoming water and reduces steam in the kitchen. H+ (Hygiene+) adds long cycles at high temperature for higher hygiene standards.

Can it run on hot water?
Dihr and Scots Ice specify a cold water connection for this model, and its output figures are based on a 10°C supply, because the heat recovery system works with the incoming cold water.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician and a licensed plumber in your area.

See all our commercial upright dishwashers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
