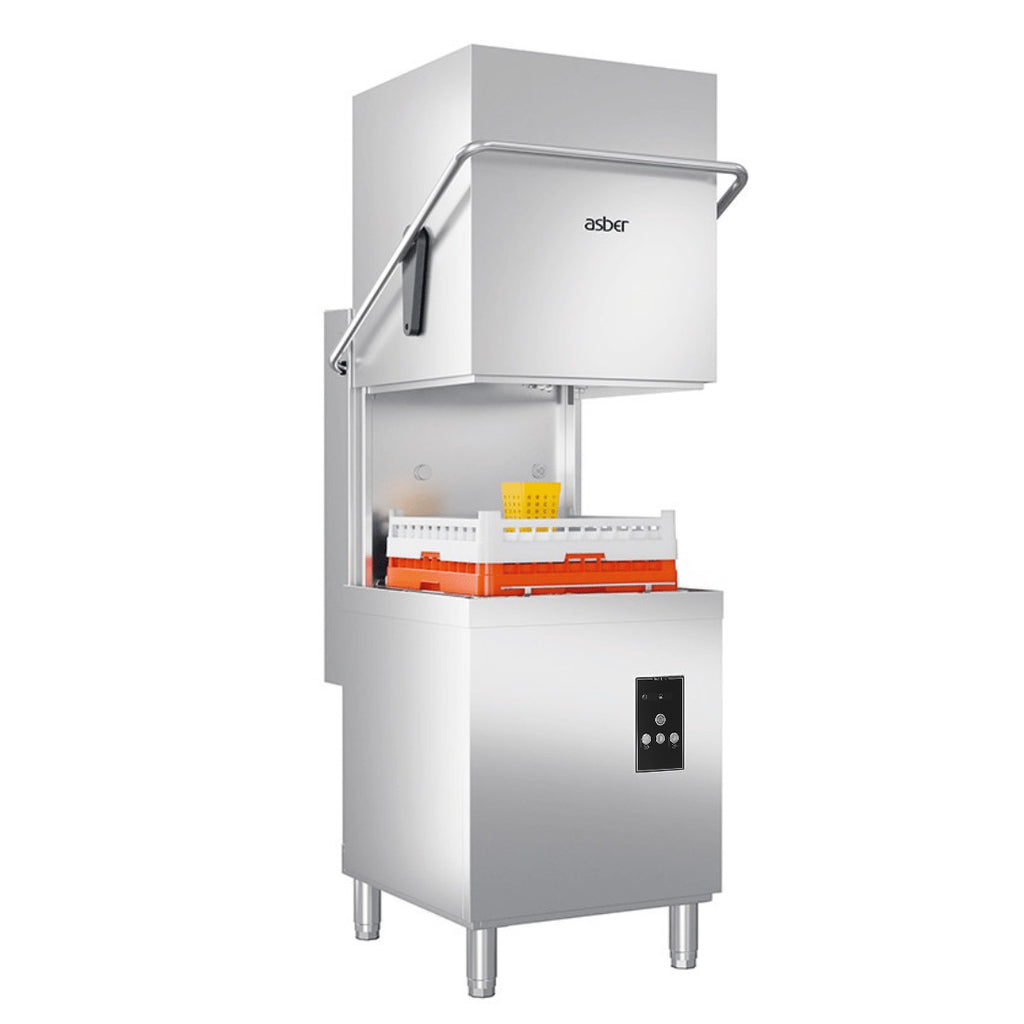

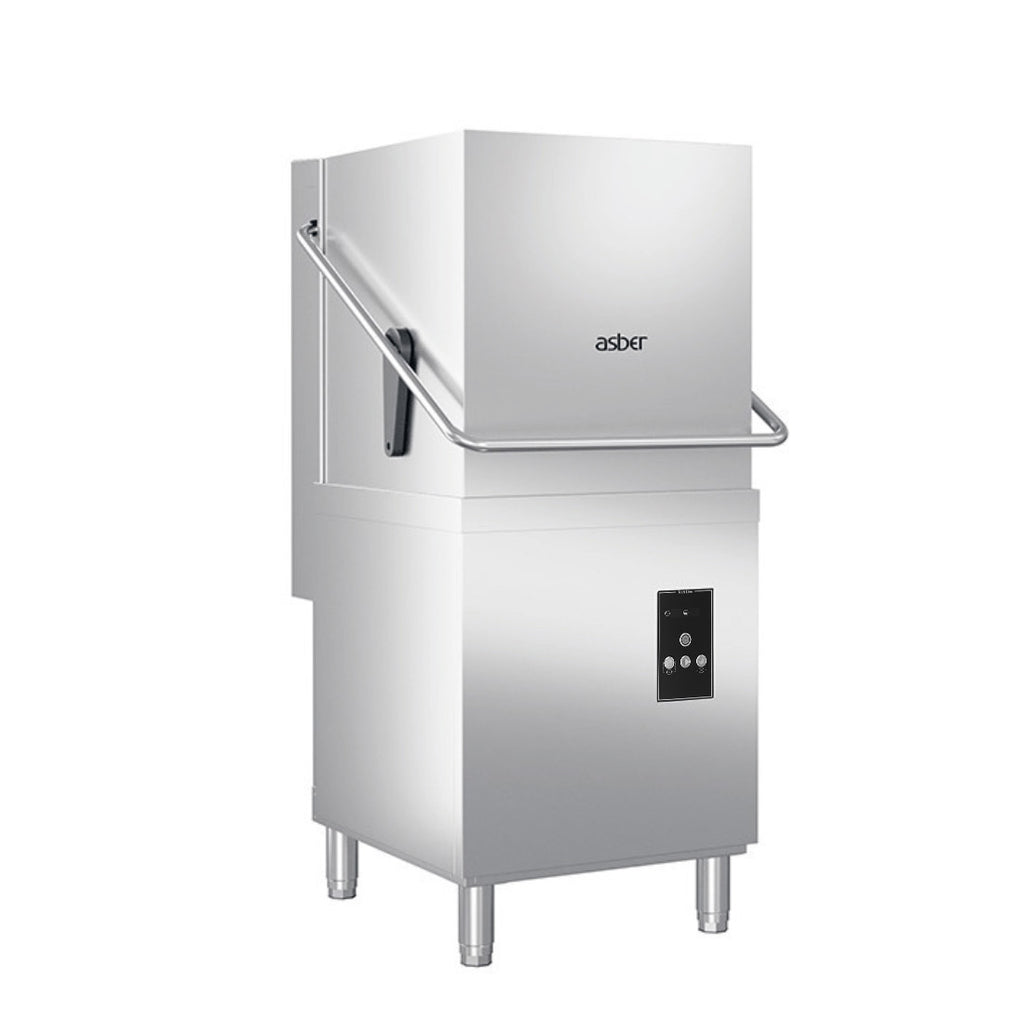

Asber GEX-H500BDD - Easy Line Pass-Through Dishwasher

Asber GEX-H500BDD - Easy Line Pass-Through Dishwasher

The Asber GEX-H500BDD is an Easy Line pass-through (hood type) dishwasher for the dish area of restaurants, cafes and clubs, taking 500 x 500mm baskets. You slide baskets in from the dirty-side bench, pull the hood down to wash, and slide them out to the clean side. It has 90 and 180 second wash cycles plus a continuous cycle, washes at 60°C and rinses at 85°C, and comes with a drain pump and detergent and rinse aid dispensers. FED supplies this Australian version for single-phase 15 A power, which makes it easier to fit than three-phase hood models.

Key features:

• Pass-through hood design for 500 x 500mm baskets
• Electromechanical control panel
• 2 wash cycles of 90 and 180 seconds, plus a continuous cycle that runs until stopped (up to 600 seconds)
• Wash at 60°C and rinse at 85°C
• Upper and lower stainless steel wash and rinse arms
• Adjustable boiler heating power (Multi-Power)
• Built-in drain pump, detergent dispenser and rinse aid dispenser
• Anti-backflow valve, composite tank filter and single skin hood
• Safety thermostats in the wash tank and boiler

Specifications:

• Model: Asber GEX-H500BDD
• Basket size: 500 x 500mm
• Door clearance: 440mm
• Wash tank: 33 litres, 3 kW heating
• Boiler: 7 litres, 2 kW heating
• Wash pump: 0.6 kW
• Rinse water use: 2.6 litres per rinse
• Water supply: hot water connection, 200–400 kPa (2–4 bar), inlet up to 60°C
• Dimensions: 630 W x 750 D x 1482 H mm
• Weight: 94 kg
• Power: 3.6 kW, 240V, 15 A
• Origin: made in Poland
• Packed size for delivery: 775 W x 880 D x 1650 H mm, 107 kg

Good to know before you buy:

• Water and drain: it needs a hot water connection and a drain, connected by a licensed plumber. We supply the equipment only.
• Power: it runs on 240V from a 15 A power point. If you don't have one, a licensed electrician can install it.
• Layout: plan inlet and outlet benches on either side so baskets slide straight through.
• Access: it arrives packed at 775 x 880 x 1650 mm and 107 kg, so check doorways and plan for a pallet jack. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside or unpacking.
• Included: 1 x CP-16/18 basket, 1 x CT-10 basket and 1 x CU-7 cutlery basket.

Compare similar models:

• Asber GE-500BDD: Tech Line underbench dishwasher, 500 x 500mm baskets, 320mm clearance
• Fagor WHC-502TBD: iNova pass-through dishwasher
• Dihr HT 11 ECO T: hood type passthrough dishwasher
• Fagor WHC-502TRCBD: iNova pass-through dishwasher with heat recovery

Common questions:

Does it need three-phase power?
No. This Australian version runs on 240V single phase at 3.6 kW from a 15 A power point.

Does it need a hot water supply?
Yes. FED states a hot water connection is required. Asber lists a supply pressure of 2 to 4 bar and an inlet temperature of up to 60°C.

Do you install it?
We supply the equipment only. It must be connected by a licensed plumber, and it needs a 15 A power point.

See all our commercial upright dishwashers.

Warranty: 2 years parts and labour.
