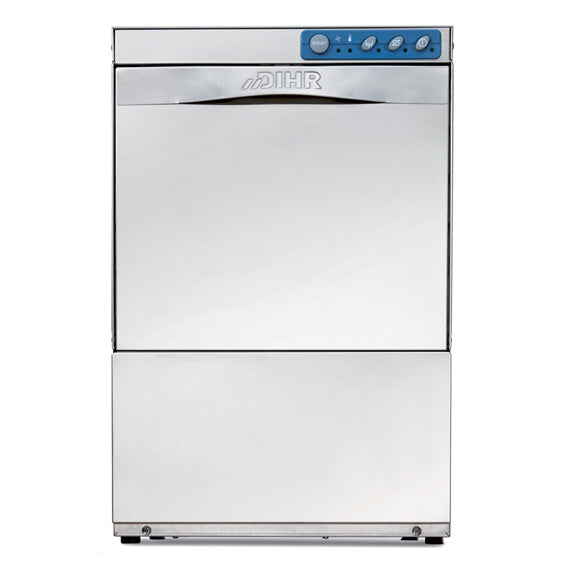

Dihr GS 40 - Undercounter Glasswasher 400mm Rack

Dihr GS 40 - Undercounter Glasswasher 400mm Rack

The Dihr GS 40 is a compact Italian glasswasher for bars, cafes and restaurants that need clean glasses fast from a small footprint. At just 450mm wide and 700mm high, it slides under most bar counters and runs a simple 2 minute cycle using only 1.8 litres of water. It is the entry model in the Dihr undercounter range: a single wash cycle and a 400 x 400mm rack, where the OPTIMA 400 adds an electronic TFT control panel and up to 8 cycles.

Key features:

• 400 x 400mm rack, taking glasses and dishes up to 305mm high
• One 120 second wash cycle with an 85°C rinse
• Just 1.8 litres of water per cycle
• Up to 30 racks per hour on a 55°C hot water supply
• One upper and two lower wash and rinse arms
• Sound and heat insulated double-skin door with anti-shock system and safety switch
• Built-in drain pump and non-return valve
• Built-in rinse aid and detergent dispensers
• Supplied with 2 glass baskets (400 x 400), a saucer holder and a cutlery basket

Specifications:

• Model: Dihr GS 40
• Rack size: 400 x 400mm, maximum glass/dish height 305mm
• Dimensions: 450 W x 535 D x 700 H mm
• Weight: 37 kg
• Wash cycle: 1 cycle, 120 seconds
• Output: up to 30 racks per hour with 55°C water (16 racks per hour with 10°C water)
• Water use: 1.8 litres per cycle
• Boiler: 3.4 litres, rinse set at 85°C
• Wash tank: 14.5 litres, set at 55°C
• Power: 3.2 kW, single phase 240V 50Hz
• Water connection: 3/4 inch, inlet pressure 200–400 kPa; drain hose 24mm
• Noise: about 61 dB(A)
• Made in Italy

Good to know before you buy:

• Power: at 3.2 kW it draws more than a standard 10 A power point supplies, so have a licensed electrician provide a suitable single-phase circuit. We supply the equipment only.
• Water and drain: it needs a water connection and a drain, connected by a licensed plumber. Dihr specifies water hardness of 2–8 °F (French degrees), so ask your plumber whether your site needs a softener.
• Water temperature: a 55°C hot water supply gives the fastest turnaround. On cold water the machine still works, but output drops to about 16 racks per hour.
• Access: at 450mm wide it is easy to handle. It is delivered by tailgate truck to the front of your premises; bringing it inside and unpacking are not included.

Compare similar models:

• Dihr OPTIMA 400: same 400 x 400mm rack, with TFT electronic controls and up to 8 wash cycles
• Dihr GS 50 ECO: larger 500 x 500mm rack for plates as well as glasses
• Dihr OPTIMA 500: 500 x 500mm rack with TFT controls, glass, dish and cutlery washing

Common questions:

Will it fit under my bar?
It is 700mm high, 450mm wide and 535mm deep, so it suits most standard under-counter spaces. Check your opening, plus room for the door to drop open at the front.

Does it come with racks?
Yes. It comes with 2 glass baskets (400 x 400), a saucer holder and a cutlery basket. Ask us about extra racks.

Do you install it?
We supply the equipment only. It must be connected by a licensed plumber and a licensed electrician in your area.

See all our commercial glasswashers.

Warranty: 2 years parts and 2 years labour (24 months each) through Dihr's Australian distributor, Scots Ice. Exclusions apply.
