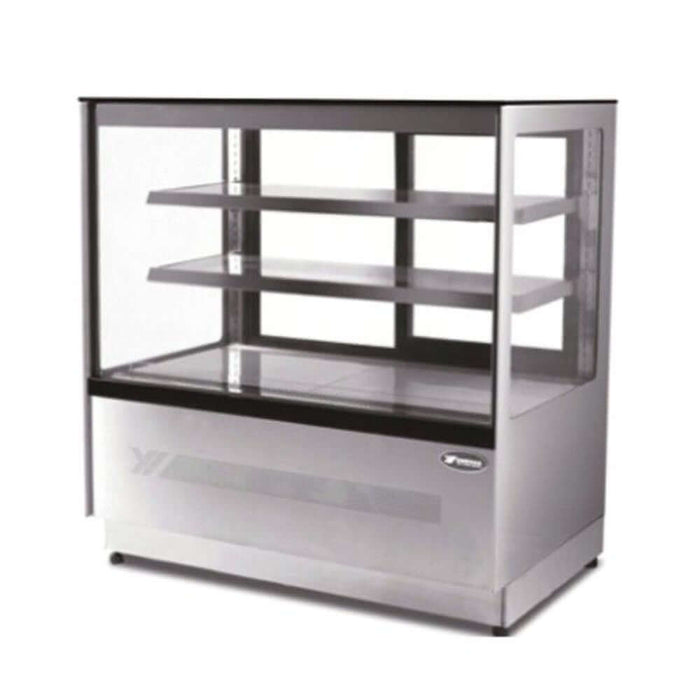

Atosa DF177F - Upright Square Cake Showcase
At 1700mm, the Atosa DF177F is the longest square glass showcase in Atosa's DF range, with 570 litres of chilled display for patisseries, bakeries and hotel or club dessert counters. It keeps cakes and desserts at 0°C to +8°C in rooms up to 43°C, across three levels lit by LED lights. It is 200mm wider than the DF157F, while the curved glass DF177D offers four levels at the same width.
Key features:
- 1700mm square glass display, the widest in the DF square range
- 570 litres over 3 display levels (2 glass shelves plus the base)
- Holds 0°C to +8°C, rated for rooms up to 43°C
- Heated glass that clears condensation
- LED lighting
- Italian digital controls and a SECOP compressor
- Sliding rear doors that lift out for cleaning
- Castors fitted, MEPS approved
Specifications:
- Model: Atosa DF177F
- Capacity: 570 litres
- Dimensions: 1700 W x 742 D x 1200 H mm
- Weight: 313 kg
- Temperature range: 0°C to +8°C
- Maximum room temperature: 43°C
- Refrigerant: R290
- Power: 920W, 220–240V, 50Hz
- Shelves: 2 glass shelves plus the base, up to 30 kg per shelf
- Packed size for delivery: 1760 W x 800 D x 1320 H mm, 383 kg
Good to know before you buy:
- Access: it arrives packed at 1760mm wide and 383 kg, by tailgate truck to the front of your premises. Standard delivery doesn't include bringing it inside or unpacking, so plan for a team and suitable equipment.
- Before use: if it has been tilted, leave it upright for 24 hours, then run it empty for 2 hours.
- Power: use its own earthed single-phase 220–240V power point.
- Clearances: Atosa asks for at least 200mm from walls and other objects, away from heat and sun.
Compare similar models:
- Atosa DF177D: same width with curved glass and 4 levels, 600 litres
- Atosa WDF177Z: 1700mm four tier square showcase, 730 litres
- Atosa DF157F: 1500mm square showcase, 497 litres
- Atosa WDG186F: 1800mm square glass Snowman showcase, 487 litres
Common questions:
How heavy is it to move?
It weighs 313 kg unpacked and 383 kg packed, so you will need several people or equipment to get it inside.
Can I keep the glass clear in humid weather?
Yes. Switch on the glass heater, which is off by default to save power.
Is it energy approved?
Simco lists it as MEPS approved under Australia's Minimum Energy Performance Standards.
See all our cake and sandwich display fridges.
Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the unit online with Simco.
