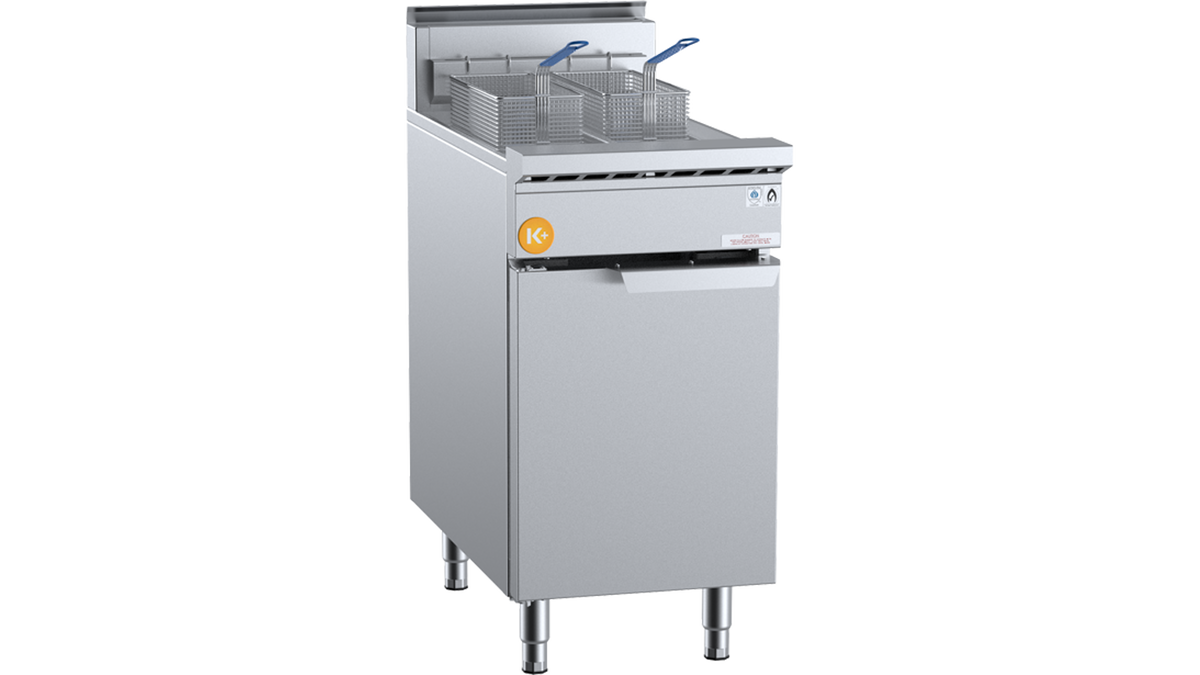

B+S K+ KTF-451S - 450mm Split Pan Gas Turbo Fryer 2 x 13.5L

B+S K+ KTF-451S - 450mm Split Pan Gas Turbo Fryer 2 x 13.5L

The K+ KTF-451S is a 450 mm split pan gas turbo fryer for fish and chip shops, takeaways and cafes that want to keep different foods in different oil. It has two 13.5 L pans side by side with one basket for each, rated at 76 MJ/h on natural gas or LPG. The KTF-451 is the same width with one larger 21.5 L pan, for shops that fry one kind of product in bulk.

Key features:

• Two separate pans, side by side
• Supplied with baskets, a fish plate and a night cover
• Efficient multi-jet target burner
• Over-temperature safety cut-out switch
• Stainless steel pan, 1.5 mm thick, with a centre cool zone
• Inclined base and a heavy duty lockable oil drain valve for easier oil and waste removal
• Flame failure device as standard, with manual ignition to the pilot
• AISI grade stainless steel, with front access to all components

Specifications:

• Model: KTF-451S
• Dimensions: 450 W x 840 D x 1030 H mm
• Gas: 76 MJ/h natural gas, 76 MJ/h LPG
• Oil capacity: 13.5 L per section
• Pans: 415 mm D x 150 mm W x 90 mm H each (fish plate to oil level mark)
• Oil outlet: 1 inch BSP female
• Weight: 90 kg
• Gas connection: 3/4 inch BSP male, combination control valve with inbuilt regulator supplied
• Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
• Gas approval: GMK 10683

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 450 x 840 x 1030 mm unit, about 90 kg.
• Options: B+S also offers left and right side wing assemblies, a joining strip and non-swivel rear castors, set of two. Ask us for a price.

Compare similar models:

• K+ KTF-451: same 450 mm width with a single 21.5 L pan, 86.6 MJ/h
• K+ KTF-601: 600 mm wide with a single 32 L pan and three baskets
• B+S Black TF-451S: split pan fryer in the B+S Black range, with a 24 month warranty

Common questions:

Can I keep fish and chips in separate oil?
Yes, that is what the split pan is for. Each 150 mm wide pan has its own 13.5 L of oil, so seafood flavours stay out of your chip oil.

Do I need two gas connections?
No. It has one 3/4 inch BSP male gas connection, and the 76 MJ/h rating is the total for the unit.

How much oil will it take?
To fill both pans you need about 27 L, which is more than the 21.5 L a single pan KTF-451 takes.

See all our commercial deep fryers.

Warranty: 18-month B+S parts and labour warranty, from the date of installation.
