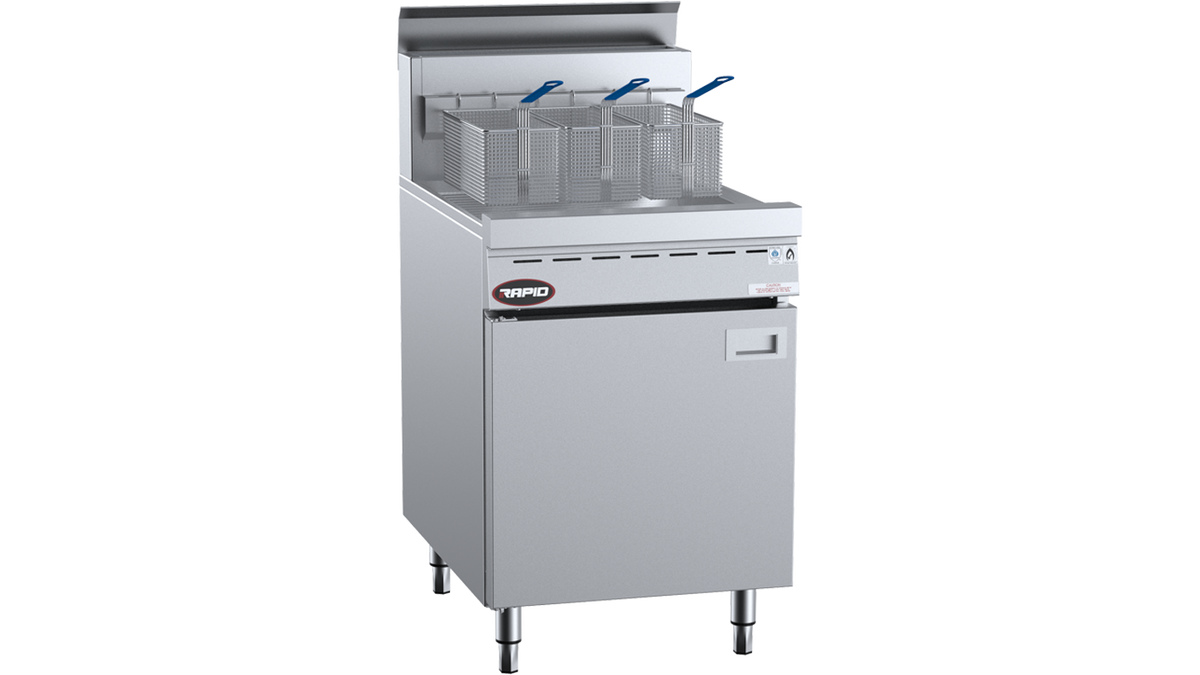

B+S Rapid RF-600 - 600mm 30L Gas Fryer 3 Basket 125MJ

B+S Rapid RF-600 - 600mm 30L Gas Fryer 3 Basket 125MJ

The Rapid RF-600 is a single pan, three basket gas fryer for takeaways and fast food outlets that have outgrown a two basket unit but do not need a full 40 L fryer. It is 600 mm wide with a 30 L pan and is rated at 125 MJ/h. It shares the 800 mm depth and 1130 mm height of the RF-400, while the RF-1 is larger all round with a 40 L pan.

Key features:

• Efficient multi-jet target burner for even heat through the oil
• Plus or minus 3°C temperature recovery differential
• 30 L oil capacity, in a stainless steel pan with centre cool zone, 1.5 mm thick
• Pan size 370 L x 500 W x 80 H mm, measured from the wire tray to the oil level mark
• Flame failure included as standard, plus an over-temperature safety cut-out switch
• Piezo ignition to the pilot
• Inclined base for easier oil and waste removal
• Complete with baskets, wire tray, night cover and lift-off basket hanger
• AISI 304 grade stainless steel, with front access to all components

Specifications:

• Model: RF-600
• Dimensions: 600 W x 800 D x 1130 H mm
• Gas: 125 MJ/h natural gas, 125 MJ/h LPG
• Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
• Gas connection: 3/4 inch BSP female
• Oil outlet: 1-1/4 inch BSP female
• Control valve: combination valve with inbuilt regulator
• Approval number: GMK 10683

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 600 x 800 x 1130 mm unit.
• Options: B+S also offers non-swivel rear castors (set of two) for this fryer. Ask us for a price.

Compare similar models:

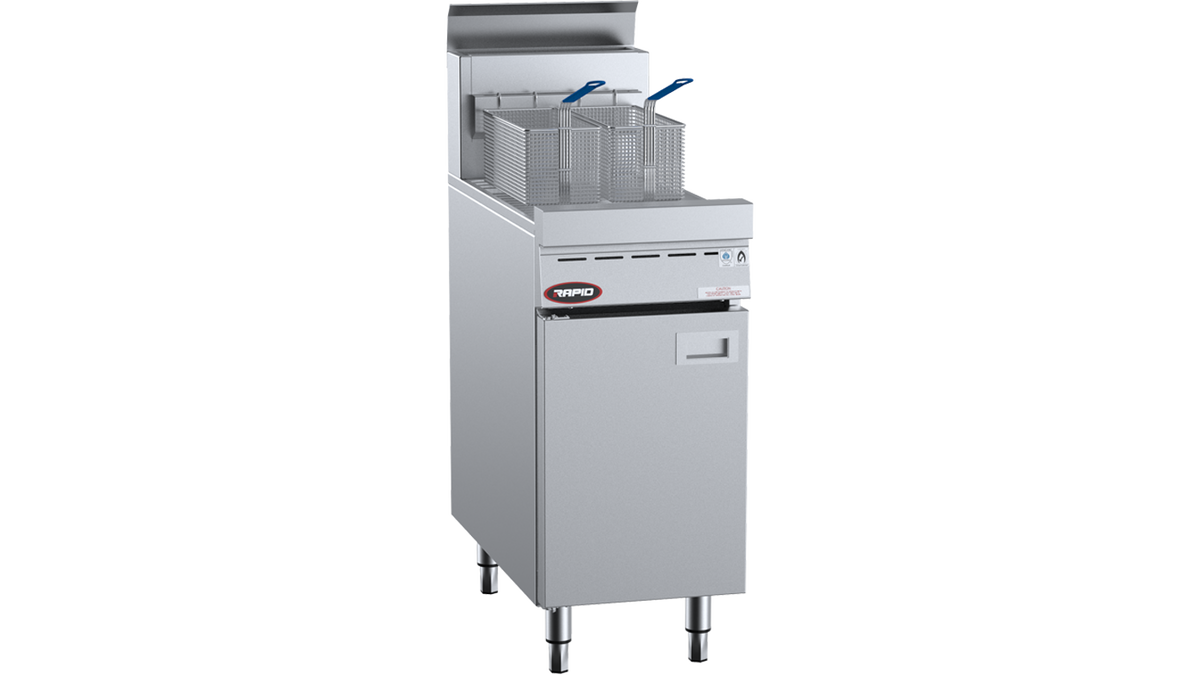

• RF-400: two baskets and 20 L of oil, 400 mm wide, 115 MJ/h.
• RF-1: a 40 L pan, 25 mm wider and 170 mm deeper, 135 MJ/h, baskets not included.
• RF-1E: an electric 40 L fryer with inbuilt filtration, 13.5 kW, for sites without gas.

Common questions:

How does the oil drain out?
The pan has an inclined base, so oil and waste move towards the 1-1/4 inch BSP female oil outlet.

RF-600 or RF-1?
The RF-600 fits a tighter line, at 800 mm deep and 1130 mm high against 970 mm and 1300 mm for the RF-1, and its baskets are included. The RF-1 has the bigger pan at 40 L and 510 x 510 mm, but its baskets are not included.

Does it need a power point?
No. It has a gas connection and an oil outlet only, and the pilot lights by piezo ignition.

See all our commercial deep fryers.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
