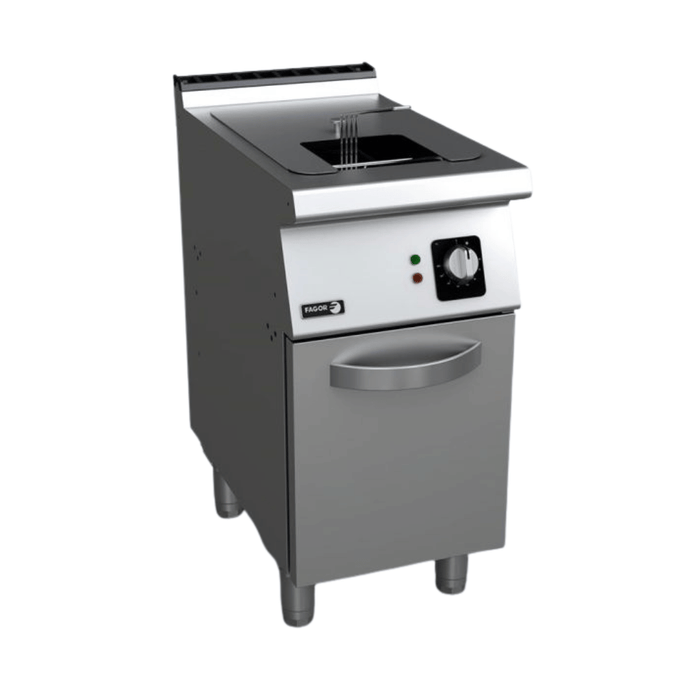

The Fagor F-G7115 is a 15 litre freestanding gas fryer from the Kore 700 Series, 400mm wide and 730mm deep, for cafes, pubs and takeaways cooking on gas. Three heat-transfer tubes run along the well, heated by high-efficiency burners rated at 54 MJ/h, and a cold zone below them helps the oil last longer. It is the single-tank partner to the F-G7215, and the gas twin of the electric F-E7115. Order it for Natural Gas or LPG at the same price.

Key features:

• 15 litre well built into the top with robotic welding and polishing
• Three longitudinal heat-transfer tubes inside the well, with high-efficiency gas burners
• Thermostatic control from 60°C to 200°C, plus a safety thermostat
• Cold zone in the lower part of the well to help keep oil in good condition for longer
• Robust mechanical ball valve for draining hot oil
• Lid for the well and 1 large basket included (250 x 280 x 100 mm)
• Flue sits flush with the rest of the Kore 700 line
• Available for Natural Gas or LPG (choose when you order, same price)

Specifications:

• Model: Fagor F-G7115
• Oil capacity: 15 litres (1 well)
• Baskets: 1 large basket, 250 x 280 x 100 mm
• Temperature range: 60°C to 200°C
• Gas rating: 54 MJ/h (15 kW)
• Gas type: Natural Gas or LPG
• Gas connection: 3/4 inch
• Electrical: 230V single phase, 0.1 kW (2 A)
• Dimensions: 400 W x 730 D x 850 H mm
• Weight: 60 kg
• Packed size for delivery: 440 W x 822 D x 1255 H mm, 75 kg

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order (same price), and make sure it matches your gas supply.
• Installation: gas appliances must be installed by a licensed gas fitter, to local regulations and under suitable ventilation or an exhaust canopy. We supply the equipment only.
• Power: Fagor lists a small single-phase electrical connection (230V, 0.1 kW) as well as the gas supply, so plan for a power point or have an electrician confirm the connection.
• Access: packed it is 1255mm tall and 75 kg, delivered by tailgate truck to the front of your premises.

Compare similar models:

• Fagor F-G7215: two 15 litre wells, 800mm wide, 108 MJ/h
• Fagor F-G9115: 15 litre gas fryer on the 930mm deep Kore 900 chassis
• Fagor F-G9121R: Kore 900 gas fryer with a 21 litre tank
• Fagor F-E7115: the electric version (415V three-phase, 12 kW)

Common questions:

Natural gas or LPG?
Both are available at the same price. Choose the gas type that matches your site when you order.

Does it need power as well as gas?
Yes. Fagor's spec sheet lists a 230V single-phase connection drawing 0.1 kW, in addition to the gas supply.

Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter in your area.

See all our commercial deep fryers.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
