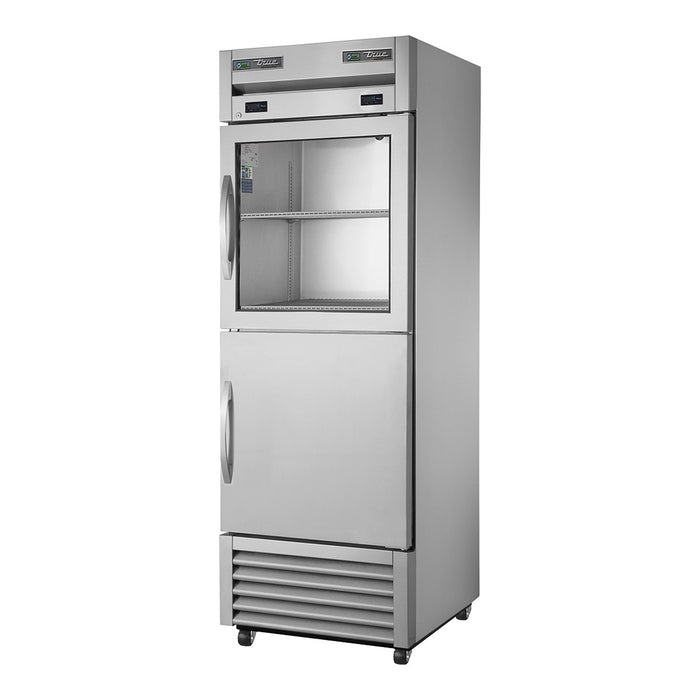

True T-23DT-1-G-1-HC - Half Glass, Half Solid Door Upright Dual Temp Fridge Freezer 686mm 356L

True T-23DT-1-G-1-HC - Half Glass, Half Solid Door Upright Dual Temp Fridge Freezer 686mm 356L

SKU: T-23DT-1-G-1-HC~FGD01

Price on application

Contact us for current pricing and lead times. Click Get a Quote below.

Get a Quote bulk or fit-out pricing

Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)

Silver Chef
Rather rent than pay upfront? Silver Chef Rent-Try-Buy finance is available on most of our range. Apply nowHow it works Finance provided by Silver Chef, subject to approval.
Running cost: about $644 a year Based on 5.04 kWh per 24 hours at 35c per kWh. Your cost depends on your tariff and how it’s used. Work out your own cost
Before it arrives
  • Size: 686 W x 750 D x 2074 H mm. Check doorways and access on the way in.
  • Weight: 162 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
  • Power: single-phase 220–240 V, 50–60 Hz, 2.3 A running current, 529 W, supplied with a 2.74 m power cord.
  • Installation type: Floor standing.

We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.

Ask a question about this product

Product details

True T-23DT-1-G-1-HC - Half Glass, Half Solid Door Upright Dual Temp Fridge Freezer 686mm 356L

Fridge and freezer in one 686 mm footprint, with a window on part of your stock: the True T-23DT-1-G-1-HC is a dual temperature upright with a refrigerator section on top (0.5°C to 3.3°C) and a freezer section below (-23°C). It has split doors, one half glass and one half solid, where the T-23DT-HC has two solid half doors. You get 356 litres net in total, Climate Class 5 rating for kitchens up to 40°C, and locks as standard.

Key features:

  • Dual temperature cabinet: refrigerator section on top, freezer section at the bottom
  • Split half glass and half solid swing doors, with LED interior lighting
  • Fridge section 0.5°C to 3.3°C, freezer section -23°C
  • 356 litres net (651 litres gross) with 4 heavy-duty PVC-coated shelves
  • Climate Class 5 for room temperatures up to 40°C
  • Digital control and an R290 hydrocarbon refrigeration system
  • "Positive seal" magnetic gaskets with torsion-type self-closing doors; True guarantees the handles and self-closure for the life of the product
  • Bottom-mounted compressor and coil with True's patented RCU feature, plus locks as standard

Specifications:

  • Model: True T-23DT-1-G-1-HC (T-23DT-1-G-1-HC~FGD01)
  • Capacity: 356 litres net, 651 litres gross
  • Dimensions: 686 W x 750 D x 2074 H mm (depth excludes 42 mm for the door handle and 13 mm for the rear access panel)
  • Weight: 162 kg unpacked
  • Temperatures: 0.5°C to 3.3°C (top refrigerator section), -23°C (bottom freezer section)
  • Climate Class 5: for room temperatures up to 40°C
  • Refrigerant: R290
  • Power: single-phase 220–240 V, 50–60 Hz, 2.3 A running current, 529 W, supplied with a 2.74 m power cord
  • Energy use: 5.04 kWh per 24 hours (1840 kWh per year), tested to EN 16825, energy efficiency class D; 4-star energy rating (True's price list)
  • Doors: 2 split doors, one half glass and one half solid, opening right as standard or left
  • Shelves: 4, each 582 x 591 mm; internal net height 650 mm + 450 mm
  • Construction: stainless steel front, aluminium sides and rear; clear-coated aluminium interior with stainless steel base
  • Castors: 64 mm lock-in-place (83 mm height); automatic defrost
  • Packed size for delivery: 909 W x 788 D x 2134 H mm, 173 kg

Good to know before you buy:

  • Access: at 162 kg unpacked (173 kg in its 909 x 788 x 2134 mm crate), this is a heavy unit. Delivery is by third-party tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside, up stairs or unpacking. Allow 42 mm extra depth for the handle and check doorways.
  • Clearances: air enters at the front and vents at the rear. True asks for 26 mm at the back and zero at the sides.
  • Power: 220–240 V single-phase, 2.3 A running, 2.74 m cord. The plug type isn't listed in True's data, so ask us to confirm it suits your outlet.
  • Pricing: This model is priced on application. Ask us for a quote.

Compare similar models:

Common questions:

Which section is the fridge and which is the freezer?
True lists the top section as the refrigerator (0.5°C to 3.3°C) and the bottom section as the freezer (-23°C).

Will it work in a hot kitchen?
Yes. This model is Climate Class 5, which True says suits room temperatures up to 40°C.

How much power does it use?
True quotes 5.04 kWh per 24 hours (1840 kWh a year), the same as the solid-door T-23DT-HC, with a 2.3 A running current.

See all our dual temp fridge / freezers.

Warranty: True 5-year parts and labour warranty, including the compressor.
