Baron Q70SFT/E820 - Queen 7 Electric Griddle Mild Steel 2/3 Smooth 1/3 Ribbed Plate 800mm
SKU: Q70SFT/E820
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 800 W x 700 D x 250 H mm. Check doorways and access on the way in.
- Weight: 77 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 400V three phase (3N), 50–60 Hz, 10.8 kW. Three-phase power needs a licensed electrician to connect.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

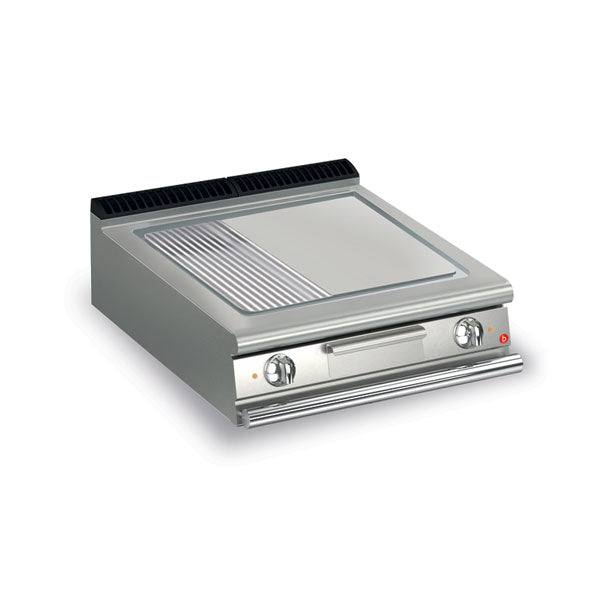

Baron Q70SFT/E820 - Queen 7 Electric Griddle Mild Steel 2/3 Smooth 1/3 Ribbed Plate 800mm
The Baron Q70SFT/E820 is an 800mm bench-top electric griddle (fry top) from the 700mm-deep Queen 7 line, made in Italy. Its 15mm thick mild steel plate is two-thirds smooth for eggs, pancakes and smash burgers and one-third ribbed for steaks and char lines, all heated by two zones with a 10.8 kW three-phase supply. Choose it over the smooth Q70SFT/E800 when you want a ribbed section, or step up to the Q70SFT/E825 for the same layout in chrome.
Key features:
- 15mm thick mild steel cooking plate, 2/3 smooth and 1/3 ribbed
- Two heating zones with Incoloy armoured elements and thermostat control from 110°C to 280°C, plus a safety thermostat
- Wide drainable channel around the whole plate, sloped to the front so juices run into a large grease drawer
- Grease drawer holds the full volume of the perimeter channel, with a stainless steel overflow plug supplied as standard
- Plate is not welded to the body, so maintenance and any replacement are quicker
- Baron says the new design cuts energy use by up to 15% compared with its conventional fry tops
- Comes with a rear splashguard and scraper
- Knobs rated IPX5 against water jets, AISI 304 stainless steel construction
Specifications:
- Model: Baron Q70SFT/E820
- Cooking surface: mild steel, 2/3 smooth and 1/3 ribbed, 15mm thick
- Heating zones: 2
- Temperature range: 110°C to 280°C
- Dimensions: 800 W x 700 D x 250 H mm (bench-top)
- Weight: 77 kg
- Power: 400V three phase (3N), 50–60 Hz, 10.8 kW
- IP rating: IPX5
- Construction: AISI 304 stainless steel
- Origin: Italy
- Packed size for delivery: 840 x 850 x 550 mm, 87 kg
Good to know before you buy:
- Power: it runs on a 10.8 kW three-phase supply and must be connected by a licensed electrician. We supply the equipment only.
- Base: this is a bench-top unit. Scots Ice lists the 70CAV8 floor stand and 70VA800 open cabinet to suit it, or it can sit on a Queen 7 oven or refrigerated chef base.
- Access: it arrives packed at 840 x 850 x 550 mm and 87 kg, delivered by tailgate truck to the front of your premises. Standard delivery doesn't include bringing it inside or unpacking.
Compare similar models:
- Baron Q70SFT/E800: same size, fully smooth mild steel plate
- Baron Q70SFT/E825: same 2/3 smooth, 1/3 ribbed layout in chrome
- Baron Q70SFT/E620: 600mm wide version of this plate, one heating zone
- Baron Q70FT/E1220: 1200mm wide mild steel smooth and ribbed griddle
- Baron Q90SFT/E820: Queen 9 version, 900mm deep and 15 kW
Common questions:
Can I mount it on a stand?
Yes. The Baron 70CAV8 floor stand and 70VA800 open cabinet are the 800mm Queen 7 bases listed for this griddle.
Are there extras to make cleaning easier?
Baron offers a cleaning drawer kit, a cleaning plug, a water loading kit and a continuous drain kit for this size. Ask us for prices.
Do you install it?
We supply the equipment only. It must be connected by a licensed electrician in your area.
See all our commercial hot plates.
Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
