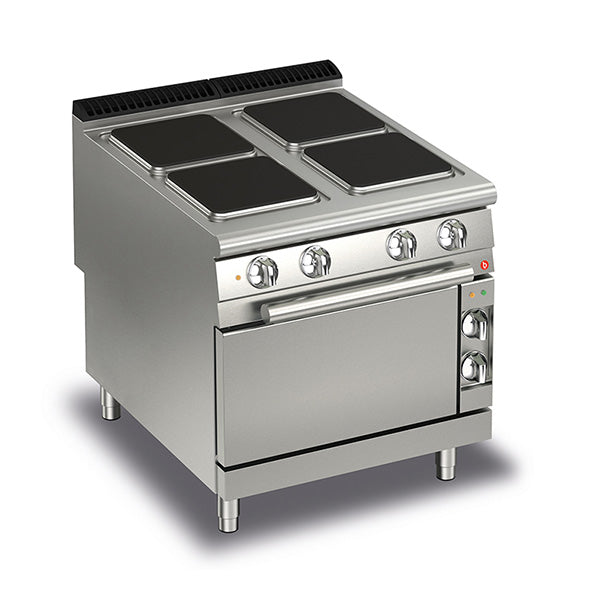

Baron Q90PCF/E801 - Queen 9 4 Plate Electric Range with Oven 800mm

Baron Q90PCF/E801 - Queen 9 4 Plate Electric Range with Oven 800mm

The Baron Q90PCF/E801 is a heavy-duty electric range from the 900mm-deep Queen 9 line, with four large 300 x 300 mm square cast iron plates over an electric oven. It suits kitchens that cook all day on electricity and want a full-depth heavy-duty range, and the oven's top and bottom elements adjust independently, with a thermostat from 100°C to 300°C. It is the Queen 9 counterpart to the 700mm-deep Q70PCF/E800, which uses smaller 220mm round plates.

Key features:

• Four square cast iron plates, 300 x 300 mm, sealed watertight to keep liquids off the wiring
• Hob moulded from a single large stainless steel sheet
• Automatic safety thermostat stops the plates overheating, especially if left on empty
• Recessed, angled knobs with 7 control positions and "plates on" indicator lights
• Electric oven with stainless steel elements above and below, adjustable independently
• Oven thermostat from 100°C to 300°C, with "power on" and "temperature reached" lights
• Two-piece knobs rated IPX5 that keep dirt out
• AISI 304 stainless steel with a 2mm (20/10) Scotch-Brite worktop

Specifications:

• Model: Baron Q90PCF/E801
• Cooking plates: 4 x 300 x 300 mm square cast iron
• Oven: electric, internal size 530 x 700 x 300 mm, 100°C to 300°C
• Dimensions: 800 W x 900 D x 900 H mm
• Weight: 163.2 kg
• Power: 400V three phase (3N), 50–60 Hz, 22 kW total
• Origin: Italy
• Packed weight for delivery: 173.2 kg

Good to know before you buy:

• Power: 22 kW on a three-phase supply is a big electrical load. A licensed electrician must connect it and check your switchboard and supply. We supply the equipment only.
• Access: it weighs 173.2 kg packed and is 900mm deep. Delivery is by tailgate truck to the front of your premises and doesn't include moving it inside, so plan the route and the help you'll need.
• Splashback: a 150mm-high, 800mm rear splashback (FC8) is listed as an optional extra.

Compare similar models:

• Baron Q90PC/E801: the same 4-plate top as a bench model, 16 kW, no oven
• Baron Q90TPF/EE800: electric target top with electric oven, 22 kW
• Baron Q90PCF/GE8005: 4 gas burners with a static electric oven
• Baron Q70PCF/E800: Queen 7 version, 700mm deep, 220mm round plates

Common questions:

How big is the oven?
The internal oven size is 530 x 700 x 300 mm.

Can I control the top and bottom oven heat separately?
Yes. Baron fits independently adjustable heating element units at the top and below the oven floor, with a thermostat from 100°C to 300°C.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician in your area.

See all our commercial stoves.

Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
