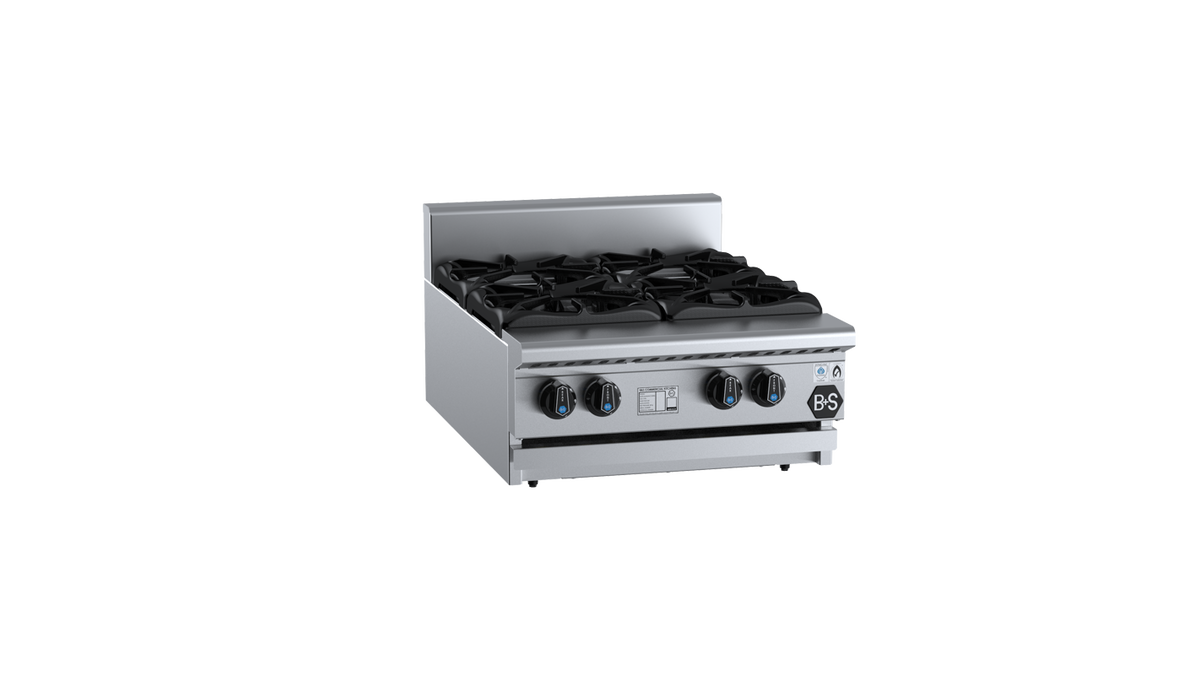

B+S Black BT-SB4BM - 600mm 4 Burner Gas Boiling Top Bench Mounted

B+S Black BT-SB4BM - 600mm 4 Burner Gas Boiling Top Bench Mounted

The BT-SB4BM puts four 31 MJ open burners in a 600mm wide, 425 mm high top that sits on your own bench. It suits a cafe or small restaurant that already has a bench in place and wants more burners than the two on a BT-SB2BM, without the 900mm run a BT-SB6BM takes up. There is no stand or undershelf, which is the main difference from the BT-SB4.

Key features:

• 4 x 31 MJ black enamelled, Italian made open burners, each with its own multi-setting gas valve
• Heavy duty Italian made vitreous enamelled trivets
• Flame failure included as standard
• Removable two-piece burners and pressed top spillage tray for cleaning
• Easy to clean fat spillage tray
• AISI grade stainless steel with a heavy duty frame, made to sit on your own bench
• Easy access to all components for adjustments

Specifications:

• Model: BT-SB4BM
• Dimensions: 600 W x 840 D x 425 H mm
• Gas: 124 MJ/h natural gas, 100 MJ/h LPG
• Burners: 4 x 31 MJ open
• Gas connection: 3/4 inch BSP male, regulator included
• Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
• Gas approval: GMK 10686

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 600 x 840 x 425 mm unit.
• Options: B+S also offers a pilot light per burner. Ask us for a price.

Compare similar models:

• BT-SB4 (on stand): same four burners on a 1030 mm high stand with an undershelf.
• BT-SB2BM (300mm): half the width with two burners.
• BT-SB6BM (900mm): six burners, 186 MJ/h on natural gas.
• BT-SB2-CBR3BM (600mm): same width with two burners and a 300mm char broiler.

Common questions:

What should I check on my bench?
That it can carry the full 600 x 840 mm footprint. Ask your gas fitter about clearances under AS/NZS 5601 as well.

Is it the same as the BT-SB4 on a stand?
Burners, trivets, trays and gas ratings are the same. The differences are the stand, the undershelf, the overall height and the castor option, which only the stand version has.

Will it line up with other bench mounted units?
B+S Black bench mounted boiling tops and grill plates are 840 mm deep and 425 mm high, the same as this unit, so they sit level on one bench. The bench mounted char broilers are 525 mm high, so they stand 100 mm above it.

See all our commercial cooktops.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
