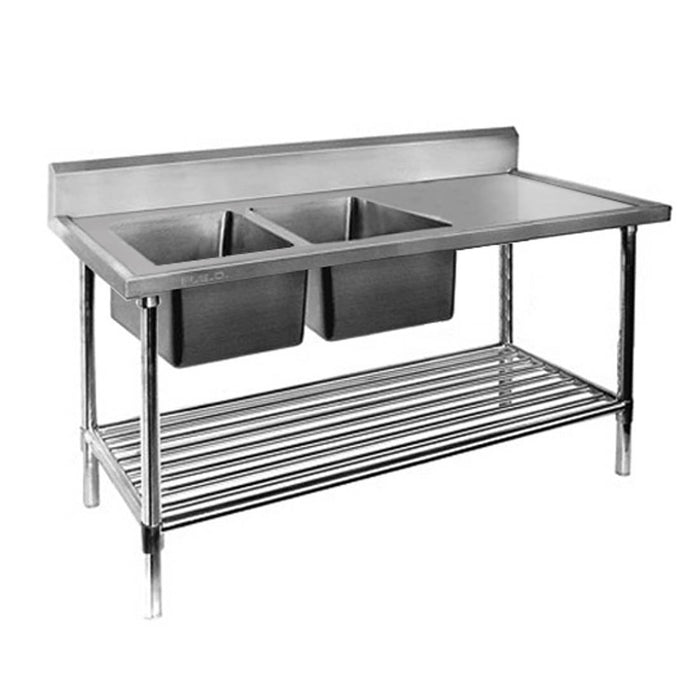

Modular Systems DSB6-1800L/A - Premium Stainless Steel Double Sink Bench, Left Bowls, 1800 x 600mm

Modular Systems DSB6-1800L/A - Premium Stainless Steel Double Sink Bench, Left Bowls, 1800 x 600mm

The DSB6-1800L/A places two 400 x 400 mm bowls at the left-hand end of an 1800 x 600mm bench, leaving a long run of stainless top to the right for racks, pots and clean items. It suits a restaurant dish area that wants the sink at one end of a wall run. Premium build throughout: fully welded 300 mm deep bowls with 90 mm drain holes, a 150 mm splashback, stainless legs and a tubular pot undershelf.

Key features:

• Two fully welded 400 x 400 mm bowls, 300 mm deep, polished inside and out, set at the left-hand end
• 90 mm drain hole in each bowl
• 1.2mm 304 (18/8) stainless steel top with a 15 mm wet edge, lined with 15 mm XPS board and a stainless steel panel
• Stainless steel U-channel reinforcement under the top, with more channels on longer benches
• 150 mm high, 40 mm thick stainless steel splashback, bevelled and fully enclosed
• 4 x 42 mm stainless steel legs with fully adjustable polished disc feet
• Tubular stainless steel pot undershelf, or a leg brace instead at no extra cost when requested on the order
• Lockable castor kits available
• Flat-packed with an instruction manual and tools for quick, simple assembly

Specifications:

• Model: Modular Systems DSB6-1800L/A
• Dimensions: 1800 W x 600 D x 900 H mm
• Weight: 40.1 kg
• Bowls: 2, each 400 x 400 mm, 300 mm deep, fully welded, 90 mm drain holes
• Bowl position: left-hand end
• Benchtop: 1.2mm SUS304 (18/8) stainless steel, lined with 15 mm XPS board
• Splashback: 150 mm high, 40 mm thick
• Legs: 4 x 42 mm, 1.2mm stainless steel, adjustable polished disc feet
• Pot undershelf: 1.2mm stainless steel (18/8), 38 mm outer frame tubes, 25 mm inner tubes at 40 mm spacing
• Supplied: flat-packed, with instruction manual and tools
• Packed size for delivery: 670 x 1870 x 530 mm

Good to know before you buy:

• Access: it comes flat-packed in a carton about 1870 mm long, 670 mm wide and 530 mm high (the bench itself weighs 40.1 kg). Delivery is by tailgate truck to the front of your premises and does not include carrying it inside or unpacking, so plan to move it in and assemble it on site. Check doorways and tight corners on the way in.
• Water / drain: the bowls must be connected to water and drainage by a licensed plumber. We supply the equipment only.
• Undershelf or leg brace: the tubular pot undershelf is standard. A leg brace can be supplied instead at no extra cost if it is requested on the order, so tell us when you order.
• What's included: an instruction manual and tools come with the bench. Taps are not included.

Compare similar models:

• Modular Systems DSB6-1800R/A: same size, bowls on the right and bench space to the left
• Modular Systems DSB6-1800C/A: same size, bowls in the centre with bench space on both sides
• Modular Systems DSB6-1500L/A: shorter 1500mm bench, same bowl size
• Modular Systems 1800-6-DSBL: Economic version with 250 mm deep bowls, a 100mm splashback and galvanised legs and undershelf

Common questions:

Do I need two bowls?
Two bowls let you wash in one and rinse or soak in the other, which is the usual set-up for washing up by hand. If you mainly rinse, fill and prep, the single-bowl Modular Systems SSB6-1800L/A is the same size and leaves more free bench.

Can I have it without the pot undershelf?
Yes. A leg brace can be supplied instead of the pot undershelf at no extra cost, but it has to be requested on the order. Contact us when you order the DSB6-1800L/A if you want the leg brace.

How is it different from the Economic sink benches?
The DSB6-1800L/A is stainless steel all the way down, with stainless legs, a tubular stainless pot undershelf, fully welded 300 mm deep bowls and a 150 mm splashback. The Economic benches have galvanised legs and undershelf, 250 mm deep bowls and a 100mm splashback. The closest Economic model is the Modular Systems 1800-6-DSBL.

See all our stainless steel sink benches.

Warranty: 2 years on parts only. Labour is not covered.
