Modular Systems HOOD1000A - Benchtop Filtered Exhaust Hood 1000mm, No Ducting Required
Modular Systems HOOD1000A - Benchtop Filtered Exhaust Hood 1000mm, No Ducting Required
SKU: HOOD1000A
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 1 year parts and labour. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 1000 W x 700 D x 1150 H mm. Check doorways and access on the way in.
- Weight: 65 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 240V, 800W, 10 A.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details
Modular Systems HOOD1000A - Benchtop Filtered Exhaust Hood 1000mm, No Ducting Required

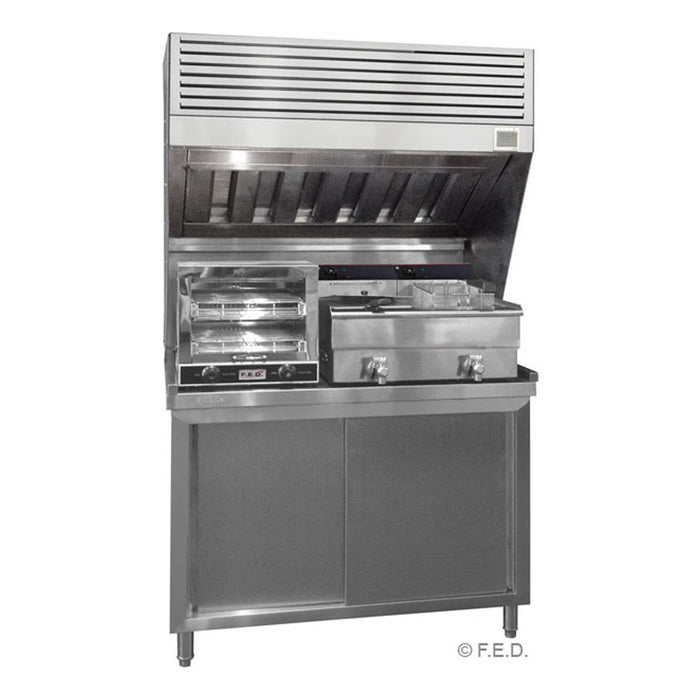

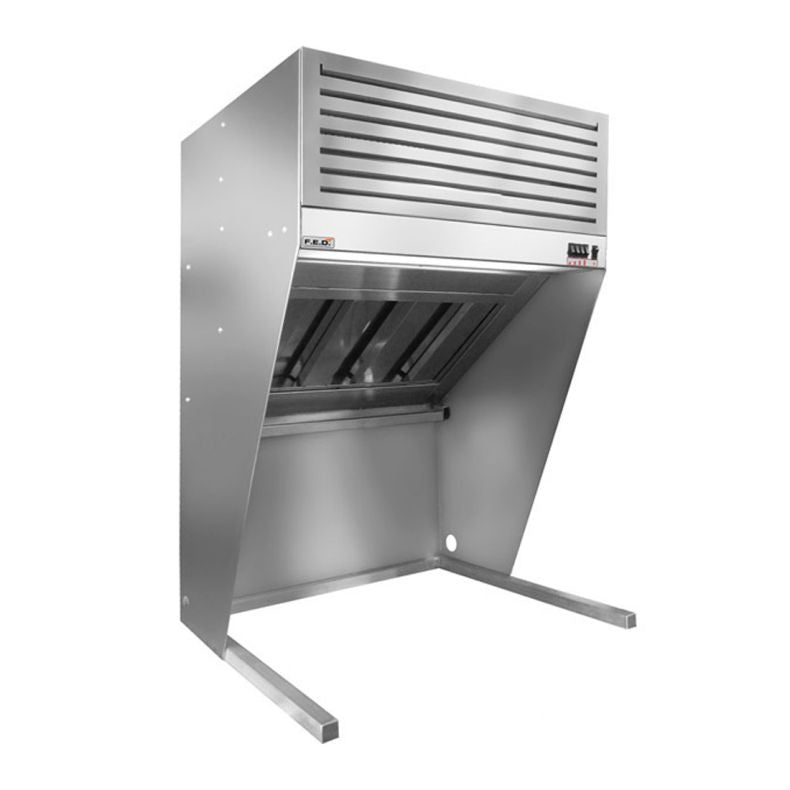

The HOOD1000A is a 1000mm wide filtered hood that mounts straight onto the benchtop, so you can add extraction over countertop cooking gear without running ducting. It steps up from the 750mm model to two high-speed, 4-speed German motors and 2120 m³/h of airflow, through the same all stainless steel, three-stage filter system. A fluorescent light brightens the work area underneath.
Key features:
- All stainless steel construction with a triple filter system
- No ducting required; mounts easily to the benchtop
- Stainless steel vertical baffle filters trap most of the grease and drain it to a removable gutter
- Washable polyester filter catches the remaining grease
- Activated carbon filter removes odour
- Two high-speed, 4-speed German motors, 2120 m³/h airflow
- Fluorescent light over the work area
Specifications:
- Model: Modular Systems HOOD1000A
- Dimensions: 1000 W x 700 D x 1150 H mm
- Weight: 65 kg
- Power: 240V, 800W, 10 A
- Motors: 2 high-speed motors, 4 speeds
- Airflow: 2120 m³/h
- Filters: stainless steel baffle, washable polyester, activated carbon
- Packed size for delivery: 760 x 1040 x 1310 mm
Good to know before you buy:
- Council rules: FED says it's generally suitable for electric equipment up to 8 kW and gas equipment up to 29 MJ, and for countertop electric equipment up to 8 kW where AS 1668.2 does not require exhaust. Check your local council requirements before buying.
- Power: 240V, rated at 10 A. Any new power point or electrical work must be done by a licensed electrician.
- Installation: it must be installed to meet local regulations. We supply the equipment only.
- Access: packed, it's about 760 x 1040 x 1310 mm. Delivery is by tailgate truck to the front of your premises; standard delivery doesn't include bringing it inside, up stairs or unpacking.
Compare similar models:
- Modular Systems HOOD750A: 750mm wide, single motor, 1060 m³/h
- Modular Systems HOOD1200A: 1200mm wide, same two-motor setup
- Modular Systems HOOD1500A: 1500mm wide, same two-motor setup
Common questions:
How does it handle grease and smells without a duct?
It uses three stages: stainless steel baffles collect most of the grease, a washable polyester filter takes the rest, and an activated carbon filter removes odour.
Is it suitable for gas equipment?
FED says it's generally suitable for gas equipment up to 29 MJ. Check your local council requirements first, and have gas appliances connected by a licensed gas fitter.
Do you install it?
We supply the equipment only. Installation must meet local regulations, and any electrical work must be done by a licensed electrician.
See all our commercial exhaust hoods.
Warranty: 1 year parts and labour.
