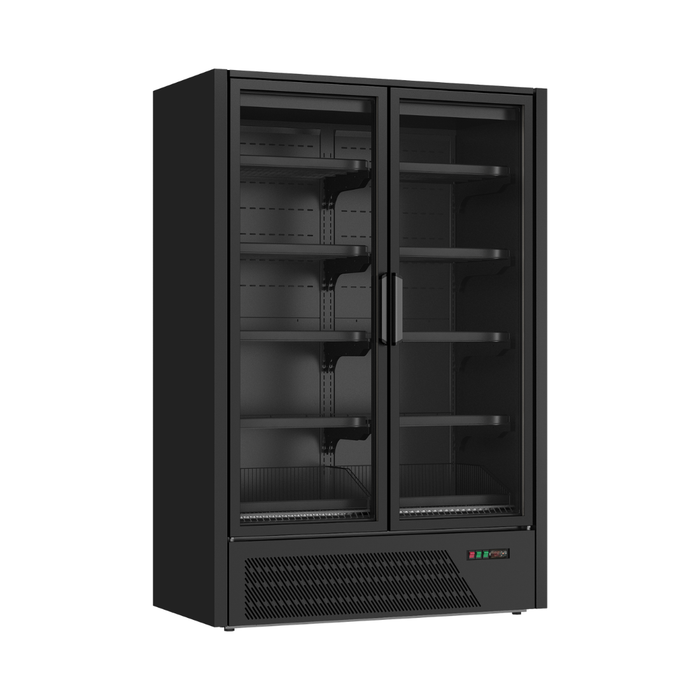

FED Thermaster DC-125BT - Double Glass Door Multideck Display Freezer Black 1062L

FED Thermaster DC-125BT - Double Glass Door Multideck Display Freezer Black 1062L

The FED Thermaster DC-125BT is a two-door glass door display freezer for supermarkets, convenience stores, cafes and food retailers selling ice cream, frozen meals and other frozen lines. Behind aluminium-framed glass doors it gives 1062 litres gross (829 litres net) and 1.61 m² of display area at -18°C to -15°C, using air curtain cooling and a SECOP inverter compressor with a 5 star GEMS rating. It is the narrowest DC-BT model and runs on a 10 A plug; the DC-125BTFG is the same size with frameless glass doors.

Key features:

• Two aluminium-framed glass doors with LED lighting and a standard price strip
• Air curtain cooling for stable frozen temperatures
• SECOP inverter compressor for quiet, efficient running, 5 star GEMS
• 60mm insulation, door stops and self-closing doors to reduce energy loss
• Automatic defrost with hot gas and heater tube
• 4 wire shelves and a bottom basket, with shelf angles of 0°, 7° or 14°
• Pull-out condenser and front-mounted compressor for easier maintenance access
• Multiplexable, so units can be lined up side by side in a continuous run
• Matte black finish, stainless steel inner base and R290 natural refrigerant

Specifications:

• Model: FED Thermaster DC-125BT
• Capacity: 1062 litres gross, 829 litres net
• Display area: 1.61 m²
• Dimensions: 1250 (+110) W x 740 D x 2058 H mm
• Weight: 253 kg
• Temperature range: -18°C to -15°C
• Maximum room conditions: 25°C at 60% relative humidity
• Refrigerant: R290
• Power: 800W, 240V, 10 A
• Doors: 2 aluminium-framed glass doors
• Packed size for delivery: 1417 x 770 x 2141 mm

Good to know before you buy:

• Width: FED lists the width as 1250mm plus 110mm, so allow about 1360mm overall.
• Access: the carton is about 1417 x 770 x 2141 mm and the unit weighs 253 kg. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking. Check door heights as well as widths.
• Power: plugs into a standard 10 A power point.
• Room conditions: rated for 25°C at 60% humidity, so it suits an air-conditioned shop floor.

Compare similar models:

• FED Thermaster DC-125BTFG: same size with frameless glass doors
• FED Thermaster DC-187BT: three-door version, 1593 litres gross, 15 A
• FED Thermaster DC-250BT: four-door version, 2124 litres gross, 15 A
• FED Thermaster DC-125B: two-door multideck display fridge, 1292 litres gross

Common questions:

Can I join it to other units?
Yes. The cabinet is multiplexable, so several units can be lined up side by side for a continuous frozen display.

What plug does it need?
The two-door DC-125BT is rated 800W at 240V, 10 A, so it suits a standard 10 A power point.

Does it come with shelves?
Yes. It has 4 wire shelves and a bottom basket, with adjustable shelf angles.

See all our multideck display fridges.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
