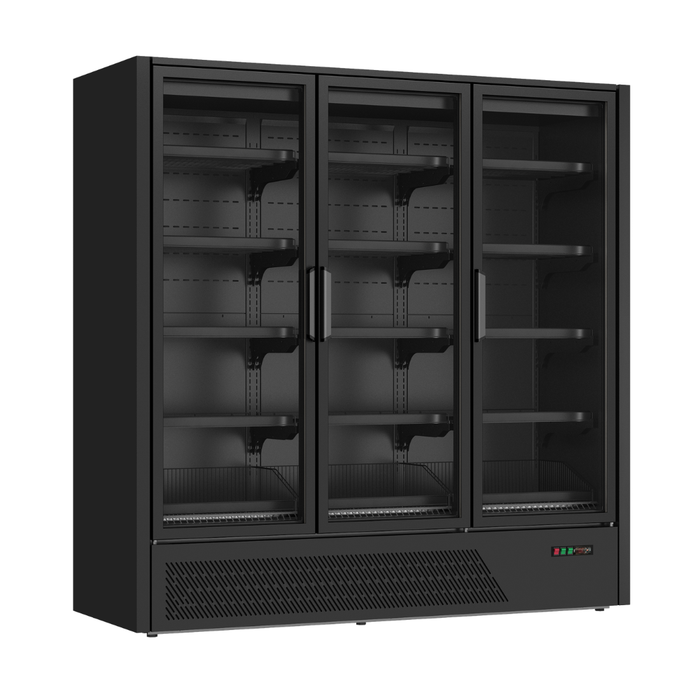

FED Thermaster DC-187BT - Triple Glass Door Multideck Display Freezer Black 1593L

FED Thermaster DC-187BT - Triple Glass Door Multideck Display Freezer Black 1593L

The FED Thermaster DC-187BT is a three-door aluminium-framed glass door display freezer that gives a supermarket, grocer or convenience store a substantial frozen section in one cabinet. It holds 1593 litres gross (1244 litres net) with 2.42 m² of display area at -18°C to -15°C, using air curtain cooling and a SECOP inverter compressor rated 5 star GEMS. It sits between the two-door DC-125BT and four-door DC-250BT, and needs a 15 A power point.

Key features:

• Three aluminium-framed glass doors with LED lighting
• Standard price strip for retail labelling
• Air curtain cooling for stable frozen holding
• SECOP inverter compressor and 5 star GEMS rating
• 60mm insulation, self-closing doors and door stops
• Automatic hot gas and heater tube defrost
• Wire shelves and bottom baskets with 0°, 7° or 14° shelf angles
• Pull-out condenser, front-mounted compressor and stainless steel inner base
• Multiplexable for continuous runs, matte black finish, R290 refrigerant

Specifications:

• Model: FED Thermaster DC-187BT
• Capacity: 1593 litres gross, 1244 litres net
• Display area: 2.42 m²
• Dimensions: 1875 (+110) W x 740 D x 2058 H mm
• Weight: 368 kg
• Temperature range: -18°C to -15°C
• Maximum room conditions: 25°C at 60% relative humidity
• Refrigerant: R290
• Power: 1350W, 240V, 15 A
• Doors: 3 aluminium-framed glass doors
• Packed size for delivery: 2042 x 770 x 2141 mm

Good to know before you buy:

• Power: it needs a 15 A power point, which is different from a standard 10 A outlet. If you don't have one, have a licensed electrician install it. We supply the equipment only.
• Access: the carton is about 2042 x 770 x 2141 mm and the freezer weighs 368 kg. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking. Plan suitable equipment and help to move it.
• Width: FED lists 1875mm plus 110mm, so allow about 1985mm overall.
• Room conditions: rated for 25°C at 60% humidity.

Compare similar models:

• FED Thermaster DC-187BTFG: same three-door size with frameless glass doors
• FED Thermaster DC-125BT: two-door version, 1062 litres gross, 10 A
• FED Thermaster DC-250BT: four-door version, 2124 litres gross
• FED Thermaster DC-187B: three-door multideck display fridge, 1939 litres gross

Common questions:

What power point do I need?
A 15 A power point. It is rated 1350W at 240V. A licensed electrician can fit a 15 A outlet if needed.

Can it be lined up with other cabinets?
Yes. It is multiplexable, so cabinets can be joined into a continuous run.

Do you install it?
We supply the equipment only. If a new 15 A power point is needed, it must be installed by a licensed electrician.

See all our multideck display fridges.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
