True TBR60-PTSZ1 - 2 Door Pass-Through Back Bar Fridge 1524mm 550L
Contact us for current pricing and lead times. Click Get a Quote below.
Rather rent than pay upfront? Silver Chef Rent-Try-Buy finance is available on most of our range.Apply nowHow it works
Finance provided by Silver Chef, subject to approval.
True TBR60-PTSZ1 - 2 Door Pass-Through Back Bar Fridge 1524mm 550L

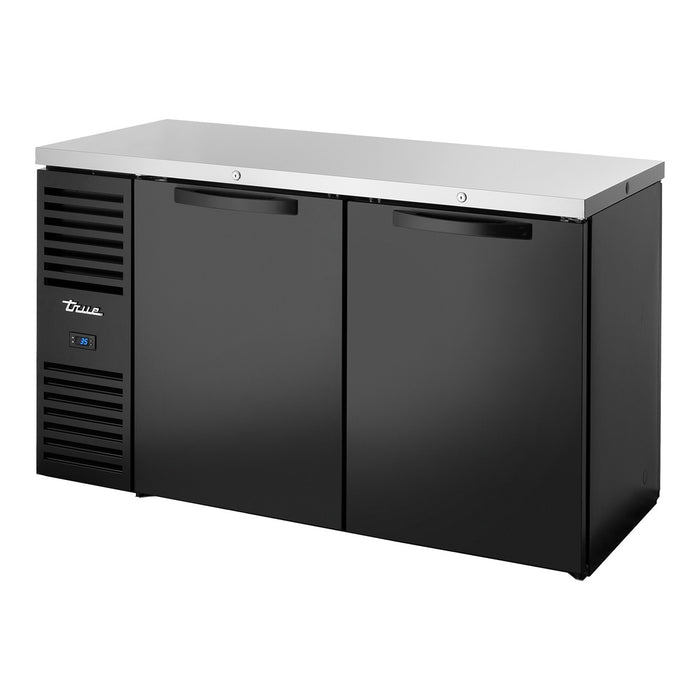

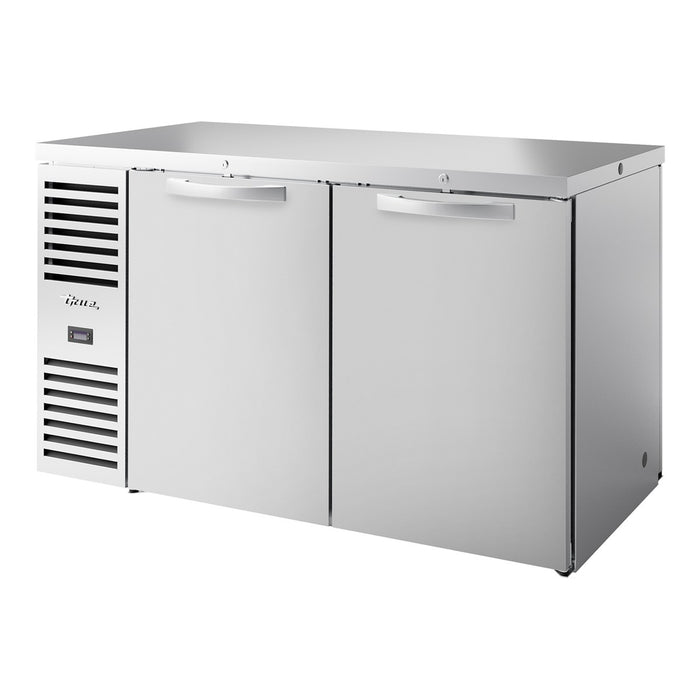

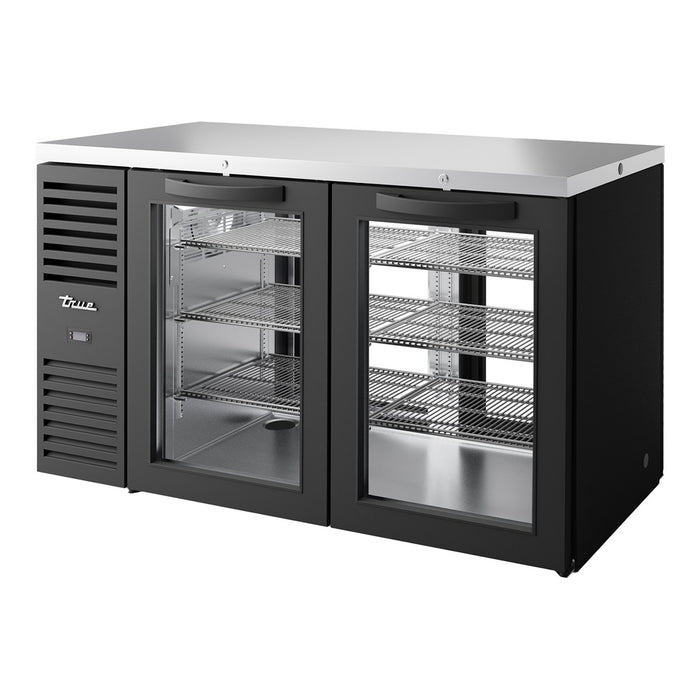

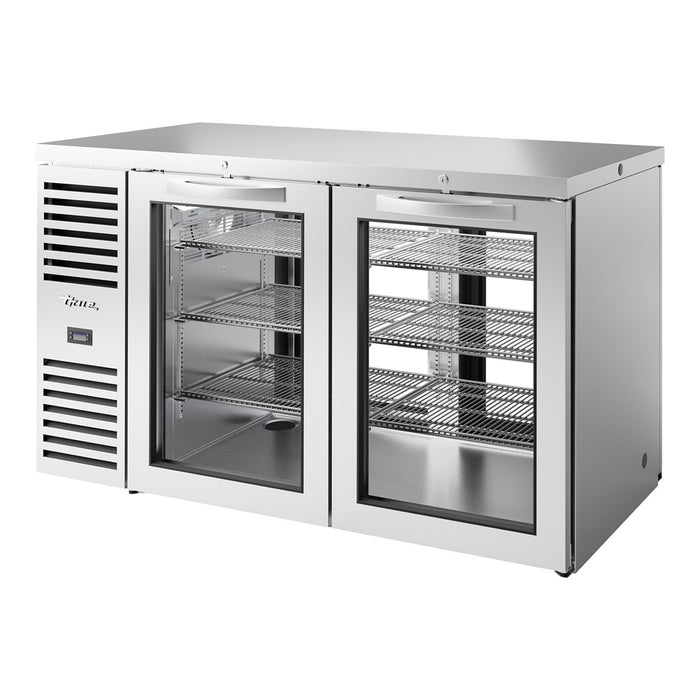

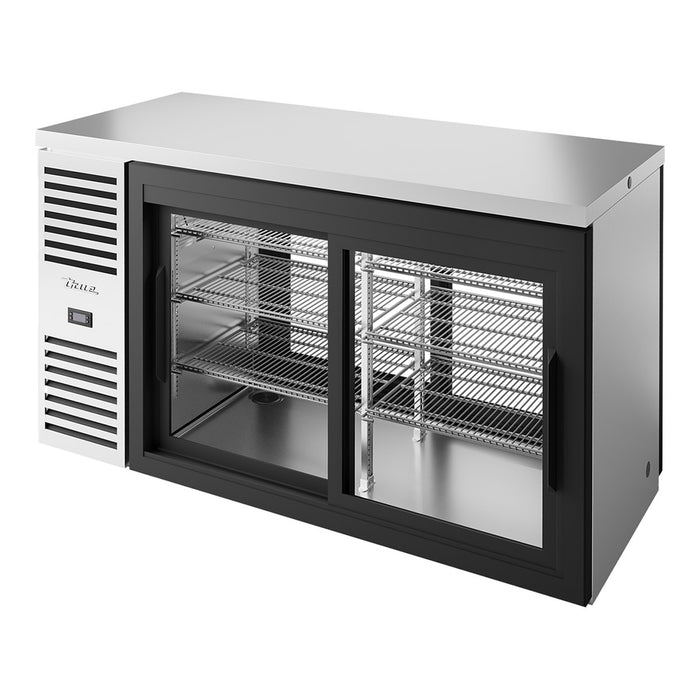

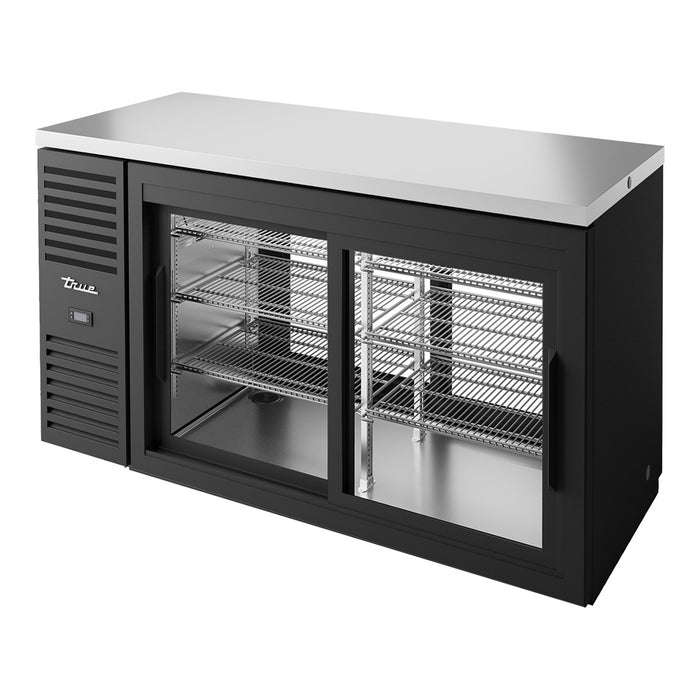

Busy bars that restock during service will appreciate the True TBR60-PTSZ1: a 1524 mm pass-through with two doors on the front and two on the back, so stock goes in from one side while drinks come out the other. It holds 550 litres gross, about 528 cans or 324 bottles, at 0.5°C to 3.3°C. It has the same width and capacity as the reach-in TBR60-RISZ1, but with doors on both faces. Pick black or stainless steel, then sliding glass, swing glass or solid doors, which are matched front and rear.
Key features:
- Pass-through layout: 2 doors at the front and 2 matching doors at the rear
- Choice of glass sliding, glass swing or solid swing doors
- Forced-air refrigeration for faster pull-down and colder serving temperatures
- Front air intake and front ventilation, with zero clearance required at the back and sides
- 6 adjustable heavy-duty PVC-coated shelves made by True
- Stainless steel interior and countertop
- TruLumina LED lighting with 14 colour options on glass-door versions
- Patented RCU feature to help reduce debris build-up on the condensing coil
- R290 refrigerant and automatic defrost
Specifications:
- Model: True TBR60-PTSZ1 (11-11 = glass sliding front and rear, GG-GG = glass swing, SS-SS = solid swing; B = black, S = stainless exterior)
- Capacity: 550 litres gross, about 528 x 330 ml cans or 324 bottles (True's estimate)
- Dimensions: 1524 W x 631 D x 881 H mm (True spec sheet)
- Weight: 169 kg with sliding doors, 174 kg with glass swing doors, 182 kg with solid doors
- Temperature range: 0.5°C to 3.3°C (SZ1)
- Refrigerant: R290
- Power: single-phase 220–240 V, 50–60 Hz, 1.3 A running current, 299 W, supplied with a 3.04 m power cord
- Shelves: 6 supplied, 551 x 458 mm (swing doors) or 540 x 458 mm (sliding doors), with 730 mm of internal net height
- Locks: standard on swing doors; options available for sliding doors
- Black exterior: black powder-coated steel front, black coated aluminium sides and rear, stainless steel countertop
- Stainless exterior: stainless steel front and countertop, aluminium sides and rear
- Supplied with levelling screws; castors optional, sold separately
- Packed size for delivery: 1690 x 801 x 1067 mm, 180–193 kg
Good to know before you buy:
- Fit: True's spec sheet gives 631 mm deep, not counting handles on both faces (35 mm each side for swing doors, 15 mm each side for sliding doors). The height excludes 7 mm for the levellers. True's catalogue table lists 684 mm deep, so ask us for the spec sheet before you build the opening.
- Access: the crate is 1690 mm long, 801 mm deep and up to 193 kg. Delivery is by tailgate truck to the front of your premises; standard delivery does not include bringing it inside, up stairs or unpacking.
- Doors: sliding glass doors save swing room on both sides, glass swing doors give the clearest view of stock, and solid doors keep the cold in better.
- Power: single-phase 220–240 V, 1.3 A running current, 3.04 m power cord.
- Pricing: This model is priced on application. Ask us for a quote.
Compare similar models:
- True TBR60-RISZ1: same size reach-in with doors on the front only
- True TBR36-PTSZ1: single-section pass-through, 914 mm, 350 litres
- True TBR72-RISZ1: three-door reach-in, 1829 mm, 660 litres
Common questions:
Can I have glass on the front and solid on the back?
The versions listed here have matching doors front and rear: glass sliding, glass swing or solid swing on both faces. Ask us if you need a different combination.
Is it the same temperature throughout?
Yes. SZ1 means a single zone, so the whole cabinet runs at 0.5°C to 3.3°C, the range True suggests for beers, soft drinks, juices and milk. The range is chosen when ordering and cannot be changed later.
Do you install it?
We supply the equipment only. It runs on single-phase 220–240 V with a 3.04 m cord. Have a licensed electrician fit any new outlet in your bar.
See all our bar fridges.
Warranty: True 5-year parts and labour warranty, including the compressor.
