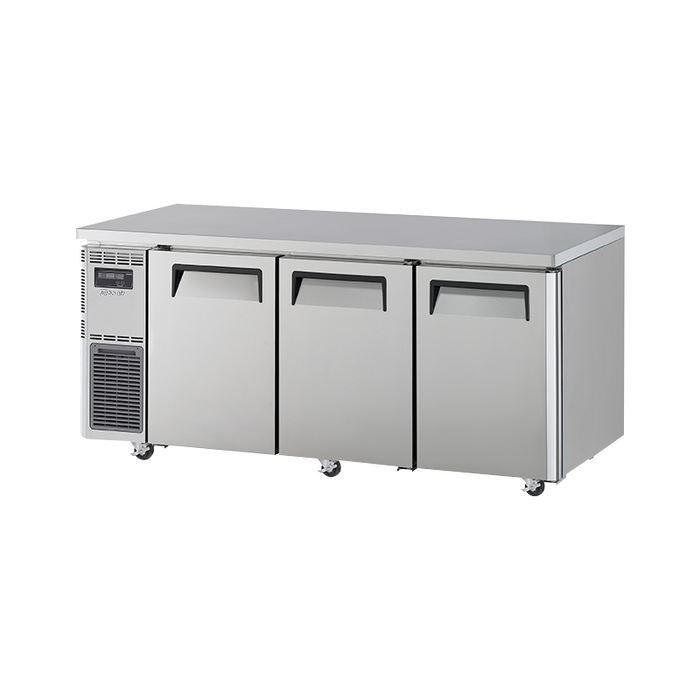

Turbo Air KURF18-3-N - 3 Door Underbench Dual Temp Fridge Freezer 1800mm

Turbo Air KURF18-3-N - 3 Door Underbench Dual Temp Fridge Freezer 1800mm

The Turbo Air KURF18-3-N is the only three door model among these dual temp underbench units, with two fridge doors and one freezer door along an 1800 mm cabinet. The fridge side holds 1°C to 8°C and the freezer -21°C to -12°C, with 438 litres across the two compartments, so a busy line can keep chilled and frozen stock in one footprint. It uses a 2/5 HP compressor, plugs into a standard 10 amp outlet and runs on R290 natural refrigerant.

Key features:

• Two fridge doors and one freezer door in a single 1800 mm cabinet
• Fridge 1°C to 8°C and freezer -21°C to -12°C, 438 litres in total

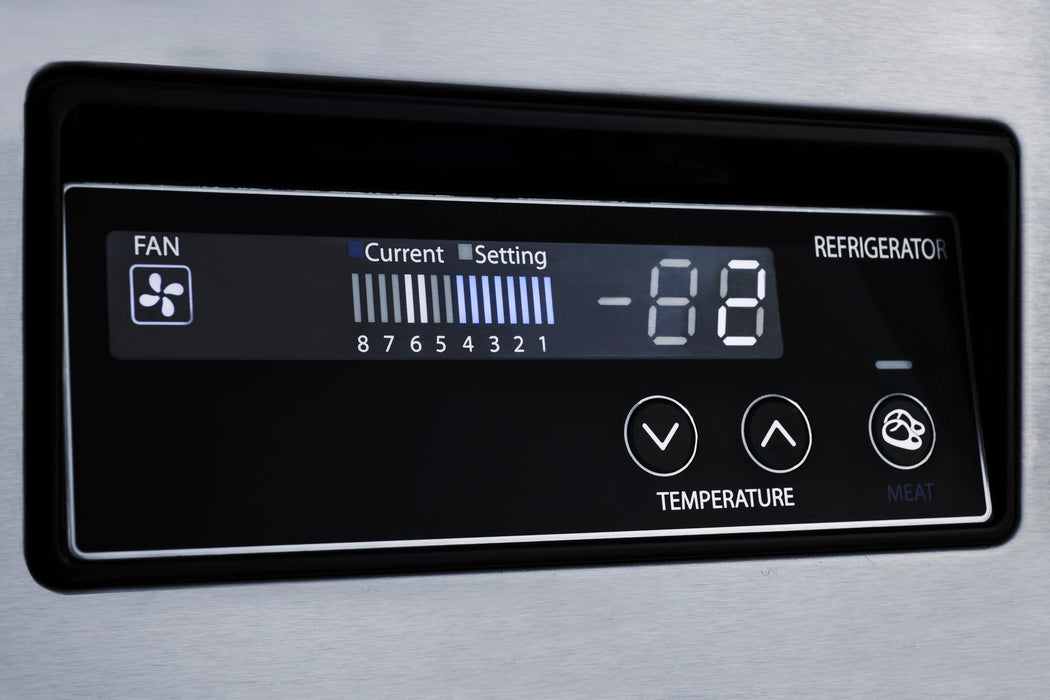

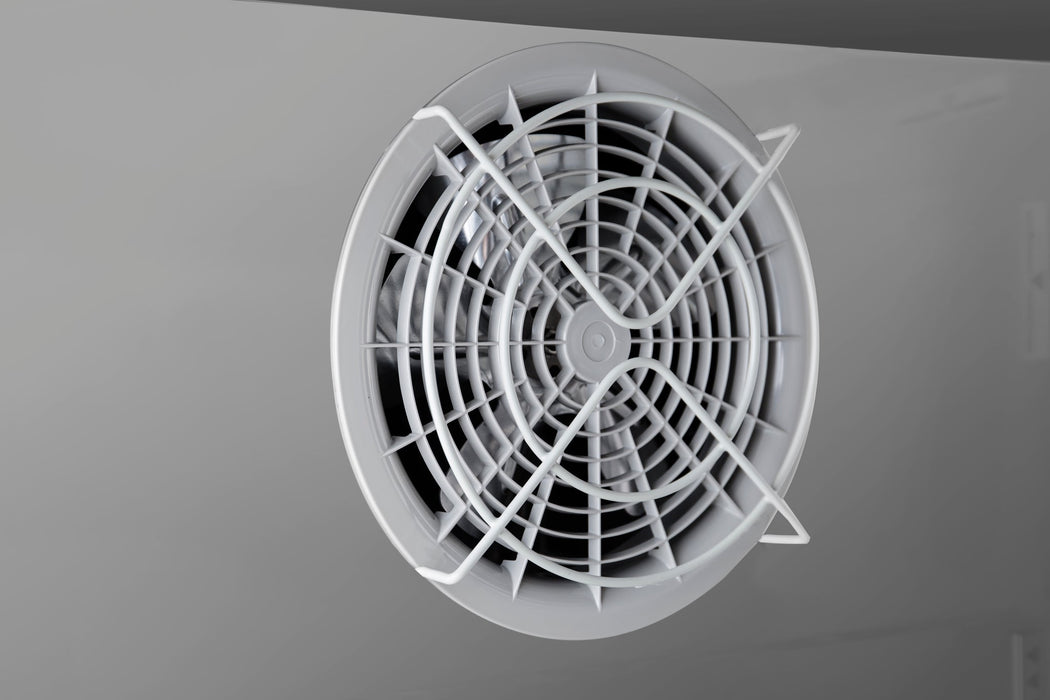

• Fan-forced cooling with digital temperature control and monitoring
• Turbo Cooling & Freeze function for a fast pull-down after loading

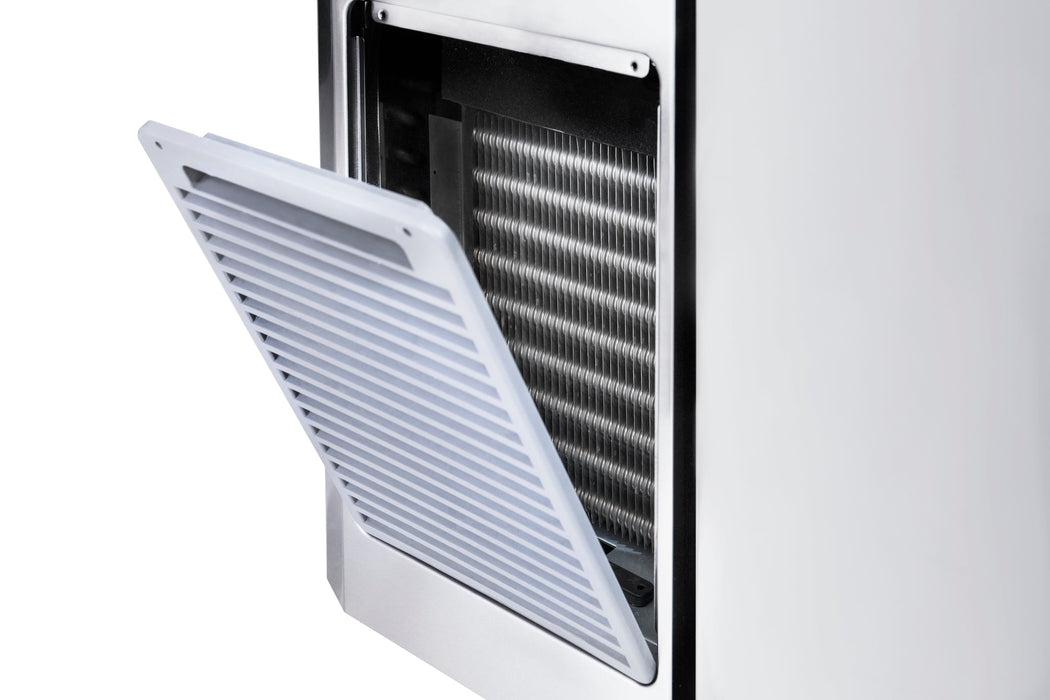

• Patented self-cleaning condenser: a rotating brush clears dust from the condenser 2 to 3 times a day
• Front breathing, so it can sit closer to walls and under benches
• Drain water evaporation system, so no extra drain is needed
• 3 adjustable heavy-duty (50 kg) PE-coated wire shelves; stainless steel exterior and interior
• Castors as standard, legs optional

Specifications:

• Model: Turbo Air KURF18-3-N
• Capacity: fridge 151 litres, freezer 287 litres (Turbo Air catalogue and price list)
• Dimensions: 1800 W x 700 D x 855 H mm
• Weight: 120 kg
• Temperature range: fridge 1°C to 8°C; freezer -21°C to -12°C
• Refrigerant: R290 hydrocarbon
• Power: 400 W, 2.5 A full load, 220–240 V single phase, 10 amp plug

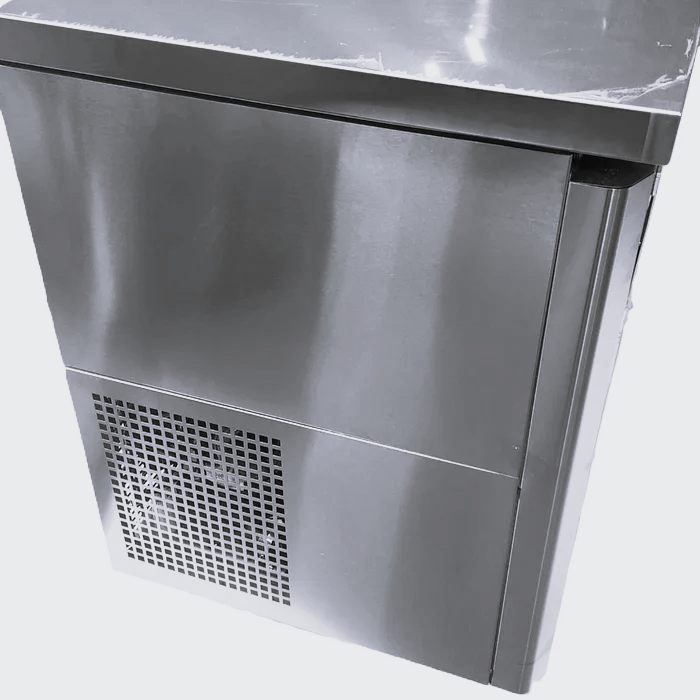

• Compressor: 2/5 HP, side-mounted on the left
• Energy use: 4.35 kWh per 24 hours (about 1,588 kWh a year)
• Doors: 3 (2 fridge, 1 freezer)
• Shelves: 3 adjustable PE-coated wire shelves included
• Insulation: high-density polyurethane (cyclopentane), CFC free

Good to know before you buy:

• Compartment sizes: Turbo Air's catalogue and price list give the fridge as 151 litres and the freezer as 287 litres, but its website lists the two figures the other way round. If the exact split matters for your kitchen, ask us to confirm it from the spec sheet.
• Access: 1800 mm long and 120 kg. Delivery is by tailgate truck to the front of your premises; standard delivery does not include bringing it inside, up stairs or unpacking, so check doorways and corners and have help on hand.
• Height: 855 mm in the catalogue, 850 mm in the price list and 860 mm including castors on Turbo Air's website. Allow 860 mm.
• Power: one standard 10 amp plug.

Compare similar models:

• Turbo Air KURF15-2-N: 1500 mm dual temp with one fridge door and one freezer door
• Turbo Air KURF12-2-N: compact 1200 mm dual temp
• Turbo Air KUR18-3-N: same size, all fridge, 538 litres
• Turbo Air KUF18-3-N: same size, all freezer, 538 litres
• Turbo Air KRF65-3-N: upright three door dual temp, 1900 mm wide

Common questions:

How many doors are fridge and how many are freezer?
Two doors open to the fridge compartment and one to the freezer compartment.

Can it sit close to a wall?
Yes. It is front breathing, so the condenser draws and exhausts air at the front. Keep the front grille clear and it can sit closer to walls and under benches.

Do you install it?
It plugs into a standard 10 amp outlet and needs no drain, so there is nothing to connect. We supply the equipment only.

See all our dual temp fridge freezers.

Warranty: Turbo Air 3-year parts and labour warranty.
