Baron Q90BR/E80 - Queen 9 Electric Bratt Pan 80L Manual Tilt
Baron Q90BR/E80 - Queen 9 Electric Bratt Pan 80L Manual Tilt
SKU: Q90BR/E80
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 800 W x 900 D x 900 H mm. Check doorways and access on the way in.
- Weight: 157 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 400V three phase (3N), 50–60 Hz, 9 kW. Three-phase power needs a licensed electrician to connect.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

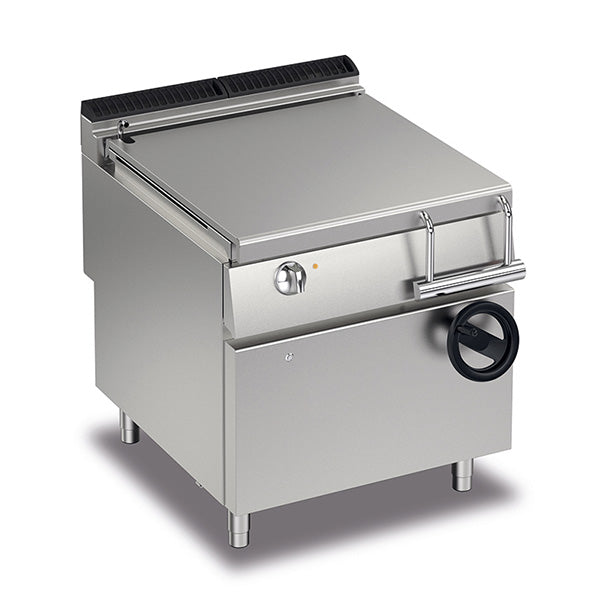

Baron Q90BR/E80 - Queen 9 Electric Bratt Pan 80L Manual Tilt
The Baron Q90BR/E80 is an 80 litre electric bratt pan (tilting skillet) from the heavy-duty, 900mm deep Queen 9 line. It sears, braises, shallow fries and simmers from 100 to 280°C, fills itself through a solenoid valve, and tips forward by hand to empty. Choose it over the EM80 if you are happy to tilt manually, or step up to the EM120 for 120 litres with motorised tilting.
Key features:
- 80 litre pan with manual tilting
- Adjustable temperature from 100 to 280°C
- Water filled through a solenoid valve
- Self-balancing lid with a double steel wall
- Safety device that cuts the power when the pan is lifted
- Incoloy stainless steel heating elements with a safety thermostat
- IPX5 water-jet rated knobs, AISI 304 stainless steel with a 2 mm (20/10) top
Specifications:
- Model: Baron Q90BR/E80
- Capacity: 80 litres
- Tilting: manual
- Temperature range: 100–280°C
- Dimensions: 800 W x 900 D x 900 H mm
- Weight: 157 kg
- Power: 400V three phase (3N), 50–60 Hz, 9 kW
- Cold water connection: 3/4 inch
- Origin: Italy
- Packed weight for delivery: 167.4 kg
Good to know before you buy:
- Power: 9 kW on three-phase power. It must be connected by a licensed electrician. We supply the equipment only.
- Water: the solenoid fill valve needs a 3/4 inch cold water connection, done by a licensed plumber.
- Space to tilt: leave clear floor space in front so you can pour safely into a pan or trolley.
- Access: it weighs 167.4 kg packed. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking, so check doorways and access.
Compare similar models:
- Baron Q90BR/EM80: same 80 litres and 9 kW, with motorised tilting
- Baron Q90BR/EM120: 120 litres, 1200mm wide, motorised tilting, 13.5 kW
- Baron Q90BR/G80: gas version, 80 litres with manual tilting
- Baron Q70BR/E80: Queen 7 (700mm deep), 60 litres, filled by hand
Common questions:
What is the difference between E80 and EM80?
Capacity, power and size are the same. The E80 tilts by hand, while the EM80 has a motor to tilt the pan for you.
Can I add a splashback?
Yes. An 800mm rear splashback (FC8) is available as an accessory. Ask us for a price.
Do you install it?
We supply the equipment only. It must be connected by a licensed electrician, and the water by a licensed plumber, in your area.
See all our commercial bratt pans and boiling pans.
Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
