Baron Q90BR/EM120 - Queen 9 Electric Bratt Pan 120L Motorised Tilt
Baron Q90BR/EM120 - Queen 9 Electric Bratt Pan 120L Motorised Tilt
SKU: Q90BR/EM120
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 1200 W x 900 D x 900 H mm. Check doorways and access on the way in.
- Weight: 194 kg. Delivered by tailgate truck to your door, so plan for help or a trolley to move it inside.
- Power: 400V three phase (3N), 50–60 Hz, 13.5 kW. Three-phase power needs a licensed electrician to connect.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

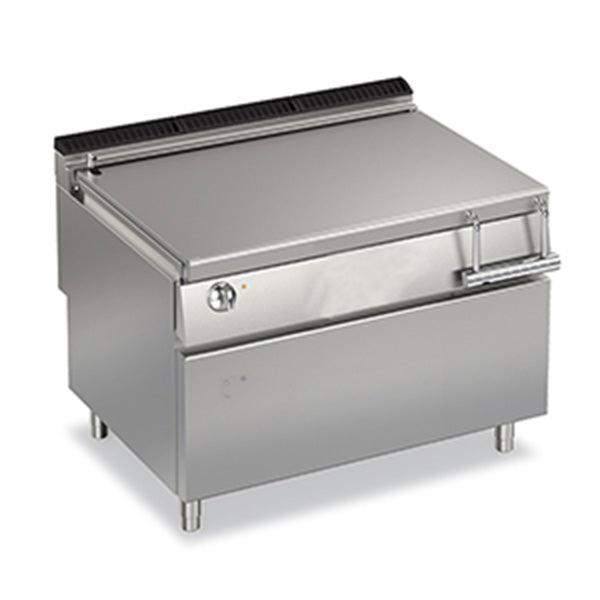

Baron Q90BR/EM120 - Queen 9 Electric Bratt Pan 120L Motorised Tilt
The largest electric bratt pan in Baron's Queen 9 range, the Q90BR/EM120 holds 120 litres and tilts with a built-in motor, so heavy batches of curry, mince, stew or sauce can be poured out without straining. It runs at 13.5 kW on three-phase power with temperature control from 100 to 280°C. At 1200mm wide it suits hotels, clubs, caterers and central kitchens cooking at volume.
Key features:
- 120 litre pan with motorised tilting
- Adjustable temperature from 100 to 280°C
- 13.5 kW of heat from incoloy stainless steel elements, with a safety thermostat
- Water filled through a solenoid valve
- Self-balancing double-walled steel lid
- Safety device that cuts the power when the pan is lifted
- IPX5 water-jet rated knobs
- AISI 304 stainless steel, 900mm deep Queen 9 construction
Specifications:
- Model: Baron Q90BR/EM120
- Capacity: 120 litres
- Tilting: motorised
- Temperature range: 100–280°C
- Dimensions: 1200 W x 900 D x 900 H mm
- Weight: 194 kg
- Power: 400V three phase (3N), 50–60 Hz, 13.5 kW
- Cold water connection: 3/4 inch
- Origin: Italy
- Packed weight for delivery: 220 kg
Good to know before you buy:
- Power: 13.5 kW on three-phase power. It must be connected by a licensed electrician, who should also check your switchboard capacity. We supply the equipment only.
- Water: the solenoid fill valve needs a 3/4 inch cold water connection by a licensed plumber.
- Access: it is 1200mm wide and weighs 220 kg packed. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking. Check doorways, lifts and corridors before you order.
- Splashback: a 1200mm rear splashback (FC12) is available separately.
Compare similar models:
- Baron Q90BR/EM80: 80 litres with motorised tilting, 800mm wide, 9 kW
- Baron Q90BR/E80: 80 litres with manual tilting
- Baron Q90BR/GM120: gas version, 120 litres with motorised tilting
- Baron Q90PF/ED150: 150 litre electric boiling pan for stocks and soups
Common questions:
Why choose motorised tilting?
A full 120 litre pan is very heavy. The motor tilts the pan for you, so the cook can control the pour with less effort than a hand-tilted model.
Is there a safety cut-out when tilting?
Yes. A safety device switches off the heating when the pan is lifted.
Do you install it?
We supply the equipment only. It must be connected by a licensed electrician, and the water by a licensed plumber, in your area.
See all our commercial bratt pans and boiling pans.
Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
Customer reviews
No reviews yet. Bought this from us? Tell other buyers how it’s going.
