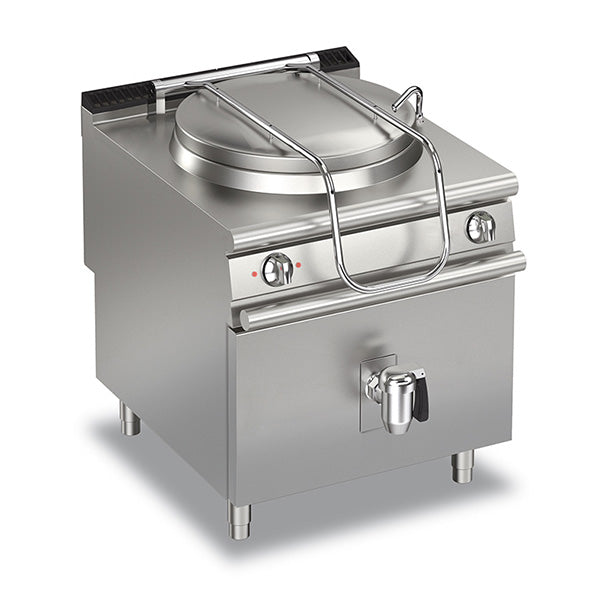

Baron Q90PF/ED150 - Queen 9 Electric Boiling Pan 150L Direct Heat

Baron Q90PF/ED150 - Queen 9 Electric Boiling Pan 150L Direct Heat

The Baron Q90PF/ED150 is a 150 litre electric boiling pan (stock pot kettle) from the heavy-duty Queen 9 line, built for kitchens that make stocks, soups, pasta and vegetables in bulk. Three stainless steel heating elements sit directly under the pan base, and 12 kW of three-phase power brings big volumes up to the boil. It is the simpler direct-heat model: choose the EI150S if you want indirect (jacketed) heating instead, or the G150 if you cook on gas.

Key features:

• 150 litre pan with a marine-grade AISI 316 stainless steel bottom
• Direct heating from 3 stainless steel elements fitted outside the pan base
• Fills with water through two solenoid valves, so there is no hose-filling by hand
• 2 inch drain valve for emptying the pan
• Safety shut-off thermostat
• Knobs rated IPX5 against water jets, so the controls can be washed down
• AISI 304 stainless steel construction with a 2 mm (20/10) Scotch-Brite finished top
• 900mm deep Queen 9 module that lines up with other Queen 9 cooking equipment

Specifications:

• Model: Baron Q90PF/ED150
• Capacity: 150 litres
• Heating: direct, 3 stainless steel elements under the pan base
• Dimensions: 800 W x 900 D x 900 H mm
• Weight: 116 kg
• Power: 400V three phase (3N), 50–60 Hz, 12 kW
• Water connections: 3/4 inch (cold and hot)
• Drain: 2 inch valve
• Materials: AISI 304 stainless steel body, AISI 316 pan bottom
• Origin: Italy
• Packed weight for delivery: 134 kg

Good to know before you buy:

• Power: this is a 12 kW three-phase appliance. It must be connected by a licensed electrician. We supply the equipment only.
• Water: the solenoid valves need a water supply, and the pan needs somewhere to drain. Water connection must be done by a licensed plumber.
• Access: the unit is 800mm wide and 900mm deep and weighs 134 kg packed. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking, so check your doorways and route to the kitchen.
• Accessories: a pasta basket (9C15), vegetable strainer basket (9CV15), drain funnel (9-I15) and 800mm rear splashback (FC8) are sold separately.

Compare similar models:

• Baron Q90PF/EI150S: 150 litres with indirect heating through a cavity around the pan, 21 kW
• Baron Q90PF/G150: gas version with direct heating, 76 MJ/h
• Baron Q90PF/GI150S: gas version with indirect heating
• Baron Q90BR/EM120: 120 litre electric bratt pan with motorised tilting, for searing and braising as well as boiling

Common questions:

What is the difference between direct and indirect heating?
On this direct model the heating elements sit right under the pan base. On the indirect EI150S the elements heat a sealed cavity around the pan, so the heat reaches the food through the pan walls and base rather than straight from the elements.

Can I get baskets for pasta and vegetables?
Yes. Baron makes a pasta basket (9C15), a vegetable strainer basket (9CV15) and a drain funnel (9-I15) for this pan. Ask us for a price.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician, and the water by a licensed plumber, in your area.

See all our commercial bratt pans and boiling pans.

Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
