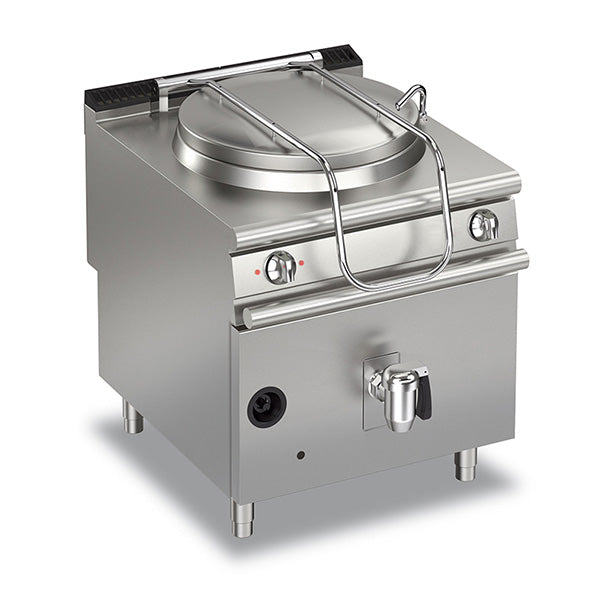

Baron Q90PF/GI150S - Queen 9 Gas Boiling Pan 150L Indirect Heat

Baron Q90PF/GI150S - Queen 9 Gas Boiling Pan 150L Indirect Heat

The Baron Q90PF/GI150S is the gas-fired, indirect-heat version of Baron's 150 litre Queen 9 boiling pan. Two stainless steel burners heat a sealed cavity around the pan instead of the pan base itself, which gives gentler heat for sauces, custards and thick soups that can catch. An automatic condensate drain valve, hot or cold water filling and a height-adjustable work surface round it out for busy production and catering kitchens.

Key features:

• 150 litre AISI 304 stainless steel pan with an AISI 316 bottom
• Indirect heating: 2 AISI 304 stainless steel burners heat the cavity around the pan
• Automatic cavity condensate drain valve (the "S" version) that manages cavity pressure and drains condensate automatically
• Low-water indicator light for the cavity, with a safety thermostat that stops heating until the level is restored
• Fills through two solenoid valves with cold or hot water
• Front drain through a 2 inch chrome-plated brass tap
• Work surface height adjustable from 840 to 900 mm
• Choose Natural Gas or LPG when you order (same price)

Specifications:

• Model: Baron Q90PF/GI150S
• Capacity: 150 litres
• Heating: indirect, 2 burners in the cavity
• Gas output: 76 MJ/h
• Gas type: Natural Gas or LPG (chosen when ordering)
• Gas connection: 3/4 inch
• Electrical supply: 230V single phase, 50 Hz, 0.2 kW
• Dimensions: 800 W x 900 D x 900 H mm (work surface adjustable from 840 to 900 mm)
• Weight: 156 kg
• Drain: 2 inch chrome-plated brass front tap
• Materials: AISI 304 stainless steel tank, shells and feet, AISI 316 tank bottom
• Origin: Italy
• Packed weight for delivery: 177.2 kg

Good to know before you buy:

• Gas type: choose Natural Gas or LPG from the Gas Type option when you order. Both are the same price.
• Installation: gas appliances must be installed by a licensed gas fitter to local regulations, under suitable ventilation or an exhaust canopy. The pan also needs a 230V supply and a water connection, done by a licensed electrician and plumber. We supply the equipment only.
• Access: it weighs 177.2 kg packed. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking, so plan how it will get to the kitchen.
• Options: an automatic cavity water-loading kit (OKWLI), pasta and vegetable baskets, a drain funnel and a rear splashback are sold separately.

Compare similar models:

• Baron Q90PF/G150: gas, 150 litres, with direct heating under the pan base
• Baron Q90PF/EI150S: electric version of this indirect-heat pan, 21 kW three phase
• Baron Q90PF/ED150: electric with direct heating, 12 kW
• Baron Q90BR/GM80: 80 litre gas bratt pan with motorised tilting

Common questions:

Can I run it on LPG?
Yes. Choose Natural Gas or LPG from the Gas Type option when you order. Both are the same price.

Should I choose this or the direct-heat G150?
On the GI150S the burners heat a cavity around the pan, so food is not sitting right over the flame. The direct G150 fires straight onto the pan base, which suits water-based cooking such as stocks, pasta and vegetables.

Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter in your area, with power and water done by a licensed electrician and plumber.

See all our commercial bratt pans and boiling pans.

Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
