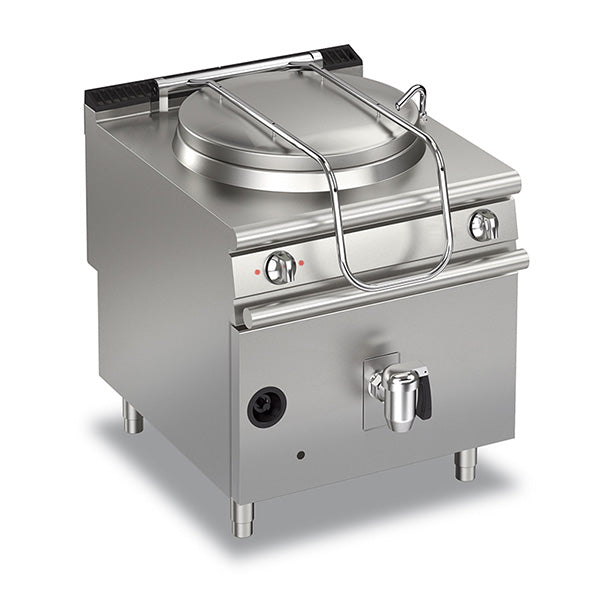

Baron Q90PF/G150 - Queen 9 Gas Boiling Pan 150L Direct Heat

Baron Q90PF/G150 - Queen 9 Gas Boiling Pan 150L Direct Heat

Cooking on gas? The Baron Q90PF/G150 is a 150 litre gas boiling pan with two stainless steel burners firing directly under the pan base, at a total of 76 MJ/h. It is made for restaurants, caterers and production kitchens that boil stocks, soups, pasta and vegetables by the batch. It is the direct-heat gas model: the GI150S heats indirectly through a cavity, and the ED150 is the electric version.

Key features:

• 150 litre pan with a marine-grade AISI 316 stainless steel bottom
• Direct heating from 2 AISI 304 stainless steel burners under the pan, 76 MJ/h in total
• Fills through two solenoid valves
• 2 inch drain valve for emptying the pan
• Safety shut-off thermostat
• IPX5 water-jet rated knobs
• AISI 304 stainless steel construction, 900mm deep Queen 9 module
• Choose Natural Gas or LPG when you order (same price)

Specifications:

• Model: Baron Q90PF/G150
• Capacity: 150 litres
• Heating: direct, 2 stainless steel burners under the pan
• Gas output: 76 MJ/h
• Gas type: Natural Gas or LPG (chosen when ordering)
• Gas connection: 3/4 inch
• Electrical supply: 230V single phase, 50 Hz, 0.2 kW
• Water connections: 3/4 inch (cold and hot)
• Drain: 2 inch valve
• Dimensions: 800 W x 900 D x 900 H mm
• Weight: 114 kg
• Origin: Italy
• Packed weight for delivery: 128.4 kg

Good to know before you buy:

• Gas type: choose Natural Gas or LPG from the Gas Type option when you order. Both are the same price, so pick the one that matches your gas supply.
• Installation: gas appliances must be installed by a licensed gas fitter to local regulations, under suitable ventilation or an exhaust canopy. It also needs a 230V power supply and a water connection, done by a licensed electrician and plumber. We supply the equipment only.
• Gas supply: at 76 MJ/h, ask your gas fitter to check your meter and pipework can run it alongside your other gas equipment.
• Access: it is 800mm wide and weighs 128.4 kg packed. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking.

Compare similar models:

• Baron Q90PF/GI150S: gas, 150 litres, indirect heating through a cavity with automatic condensate valve
• Baron Q90PF/ED150: electric version with direct heating, 12 kW three phase
• Baron Q90PF/EI150S: electric with indirect heating, 21 kW
• Baron Q90BR/GM120: 120 litre gas bratt pan with motorised tilting

Common questions:

Natural gas or LPG?
Both. Pick Natural Gas or LPG from the Gas Type option when you order. The price is the same, and the pan is supplied to suit the gas you choose.

Does it need power as well as gas?
Yes. Along with the 3/4 inch gas connection, it needs a 230V single-phase supply (0.2 kW) and a water supply for the solenoid fill valves.

Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter in your area, with the power and water done by a licensed electrician and plumber.

See all our commercial bratt pans and boiling pans.

Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
