Fagor M-G915BM - Kore 900 Series 150L Gas Boiling Pan Indirect Heating

Fagor M-G915BM - Kore 900 Series 150L Gas Boiling Pan Indirect Heating

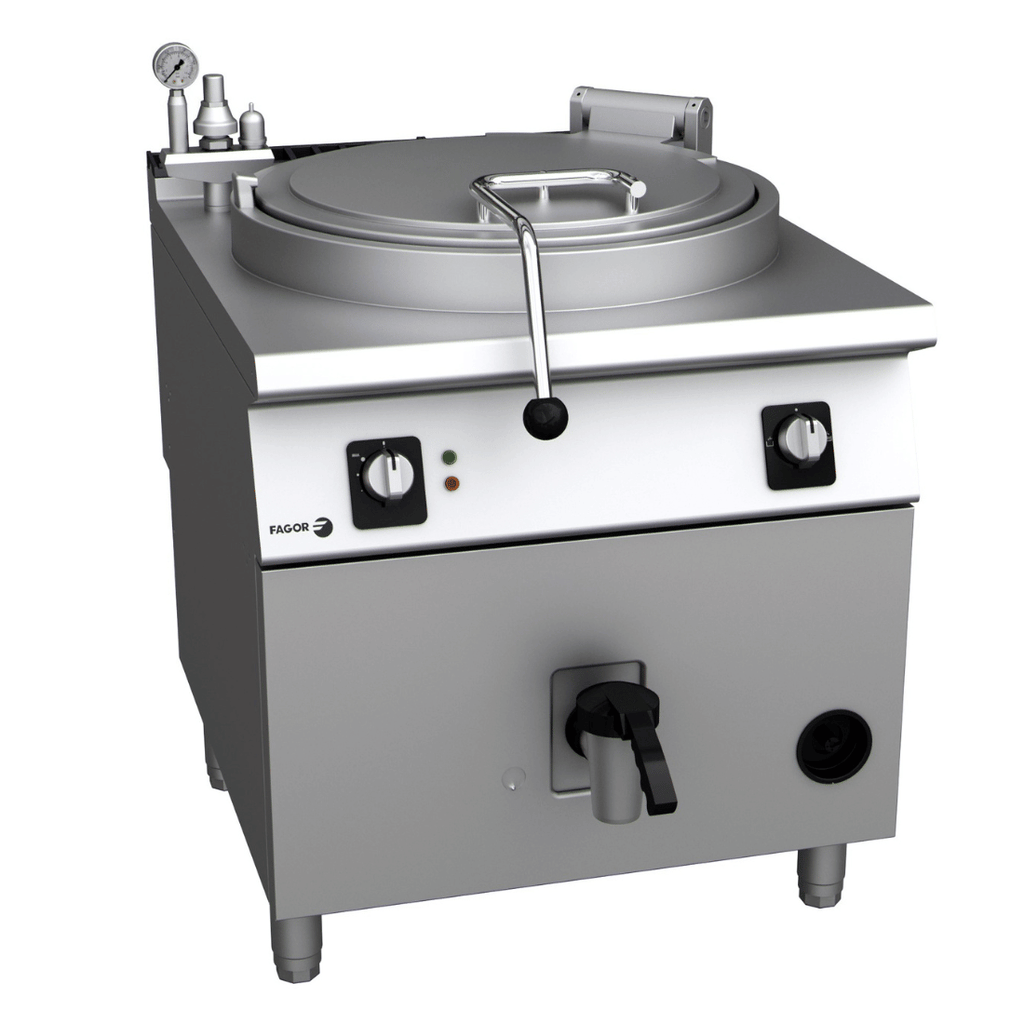

The Fagor M-G915BM is a 150 litre gas boiling pan from the Kore 900 Series, 800mm wide and 930mm deep. It uses indirect heating: the well sits inside a water jacket, so soups, stocks, sauces and custards are cooked by steam heat and are far less likely to catch. It fills through an electric valve and empties through a 2 inch safety valve. Supplied for natural gas; LPG model M-G915BMLPG.

Features and specifications:

• Natural Gas
• Surface tops manufactured in 2mm thick AISI-304 stainless steel
• Laser-cut joints, automatic welding, and polishes. Screws are hidden from view
• Double-walled lid balanced using a hinge with front handle, with a diagonal opening to 75° which allows the lid to be kept open in any position
• Well stamped into the surface top by robotic welding, manufactured in 304 S/S, with the bottom of the well in AISI-316L stainless steel
• Well filling with hot or cold water by electro valve, activated with a single switch located on the front panel
• Well emptying by 2" safety valve with handle in athermic material and safe and effortless handling
• A robust and reliable filter for draining the well is manufactured in AISI-304 S/S. Easily extractable
• Controls with a protective base and system against water infiltration
• High-temperature enamelled cast iron flue protector
• Access to the components from the front
• Machines with IPX5 grade water protection
• Group of optimized combustion stainless steel tubular burners, controlled by energy regulator and by pressure switch
• Control by energy regulator and by pressure switch, permitting lower water and energy consumption
• Ignition of a group of burners by spark train

Dimensions: 800W x 930D x 850H mm

Warranty: 2 Years Parts & Labour plus 2 Years Parts Only when the product is registered with FED within 14 days of invoice.
