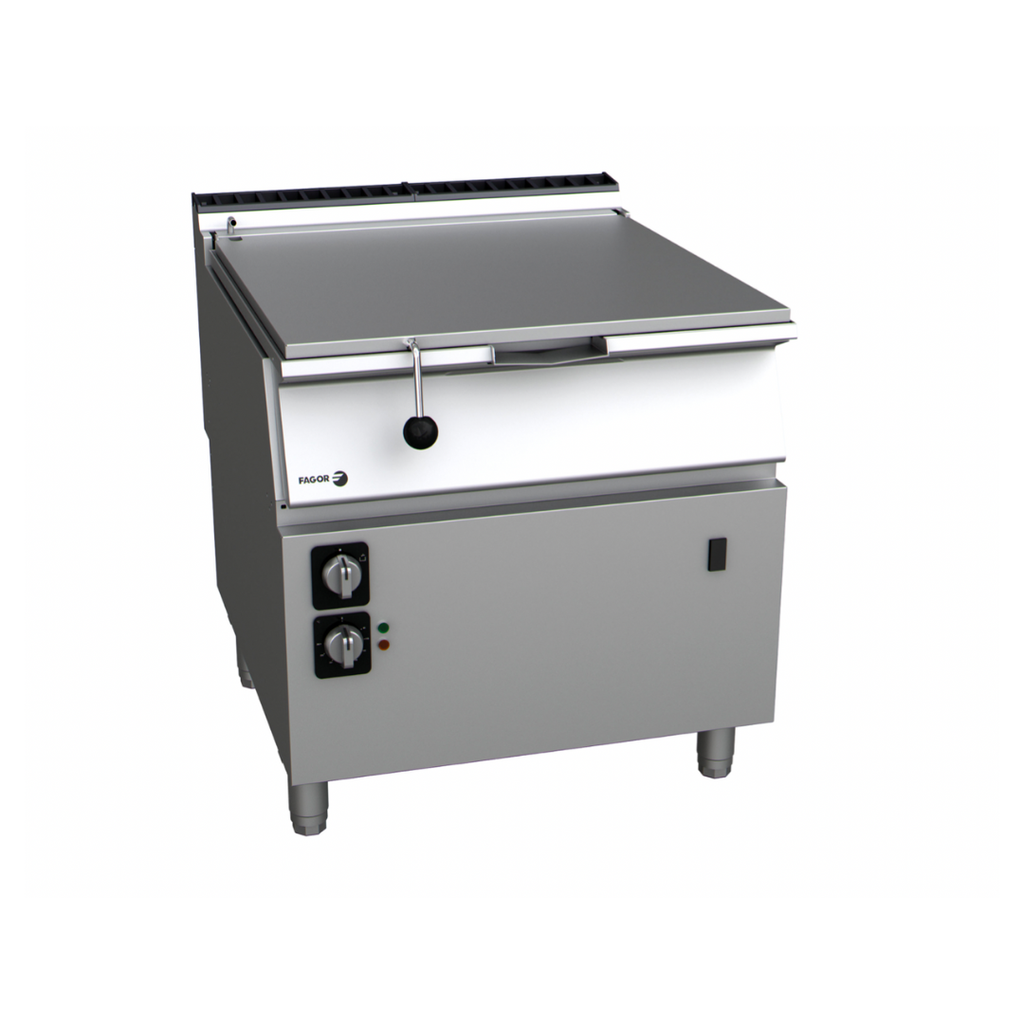

Fagor SB-G910IM - Kore 900 Series 90L Gas Motorised Tilting Bratt Pan

Fagor SB-G910IM - Kore 900 Series 90L Gas Motorised Tilting Bratt Pan

The Fagor SB-G910IM is a 90 litre gas tilting bratt pan from the Kore 900 Series, 800mm wide and 930mm deep. Use it to sear, braise, stew, shallow fry and boil in volume, then tilt the pan (motorised) right up to vertical to empty it. It has a 10mm thick stainless steel pan base, thermostat control from 50 to 310°C, a water fill valve and a switch that cuts the heat when the pan is raised. Supplied for natural gas, with LPG available on request.

Features and specifications:

• Gas tilting bratt pan, motorised, with 90L stainless steel tank, Kore 900 range
• Laser-cut joints, automatic welding, and polishes. Screws are hidden from view
• Pan is designed with rounded corners and no edges, and with a wide opening for unloading, making all cooking and cleaning operations easier
• Flange around the perimeter to stop any condensed water from spilling over
• The bottom of the well is very thick (10 mm stainless steel), guaranteeing even heat distribution
• Pans filled with water by means of an electric valve operated with a switch on the front of the machine. The filling pipe is located at the back of the machine
• Double-walled lid with drainer at the back to redirect water of condensation back into the well
• Lid balance system by springs. Compensation system to avoid heavy falls. Can be regulated, with the same system for all modules
• Micro breaking switch halts heating when the pan is raised
• High-temperature enamelled cast iron flue protector
• Access to the components from the front
• Machines with IPX5 grade water protection
• Front access lid handle
• The temperature of the bottom of the pan is controlled by a thermostat, between 50 and 310 °C
• Stainless steel pan
• Heating by branched burners located in the base of the pan, together with the thick pan bottom, gives even temperature distribution and even cooking
• Motorised elevation system raises the pan until it is vertical, to empty it
• Gas Type: Natural Gas
• Gas power: 18.00kW
• Gas consumption: 1,880 m3/h
• Regulated: NG G20/G25/G25.1 20/25/25 mbar
• Gas connection: R3/4"
• Water inlet diameter: 3/4"

Dimensions: 800W x 930D x 850H mm

Warranty: 2 Years Parts & Labour plus 2 Years Parts Only when the product is registered with FED within 14 days of invoice.
