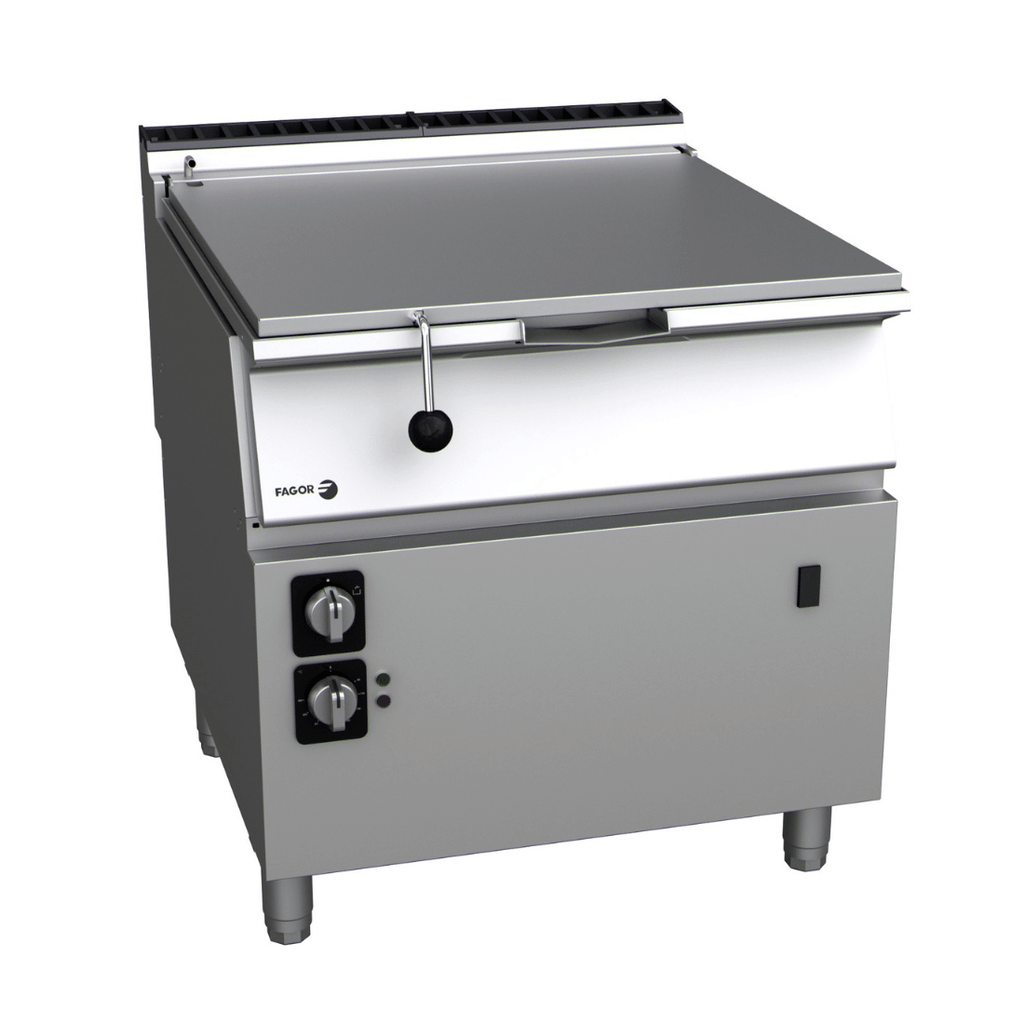

Fagor SB-E910IM - Kore 900 Series 90L Electric Motorised Tilting Bratt Pan

Fagor SB-E910IM - Kore 900 Series 90L Electric Motorised Tilting Bratt Pan

The Fagor SB-E910IM is a 90 litre electric tilting bratt pan for kitchens that sear, braise, stew, shallow fry and boil in volume, such as hotels, clubs, aged care and catering kitchens. Its stainless steel pan has a 10mm thick base heated by shielded elements, with thermostat control from 50°C to 310°C, and a motorised lift that tips the pan right up to empty it. At 800mm wide it is the compact electric model; the SB-E915IM gives you 120 litres in a 1200mm module.

Key features:

• 90 litre stainless steel pan with a 10mm thick base for even heat
• Thermostat control from 50°C to 310°C
• Motorised tilting for easy, controlled emptying
• Heating cuts out automatically when the pan is raised
• Rounded corners, no sharp edges and a wide pouring opening for easy cooking and cleaning
• Perimeter flange stops condensation spilling over the sides
• Water fill through an electric valve, operated by a switch
• Double-walled, spring-balanced lid with a drainer, plus a system to stop it dropping heavily
• IPX5 water protection and an enamelled cast iron flue protector

Specifications:

• Model: Fagor SB-E910IM
• Capacity: 90 litres
• Dimensions: 800 W x 930 D x 850 H mm
• Weight: 196 kg
• Temperature range: 50°C to 310°C (thermostat)
• Power: 15 kW, 415V three-phase (3N~)
• Pan: stainless steel, 10mm thick base, shielded stainless steel heating elements
• Range: Fagor Kore 900 Series
• Packed size for delivery: 1022 x 840 x 1255 mm

Good to know before you buy:

• Power: it needs 415V three-phase power (15 kW) and must be connected by a licensed electrician. We supply the equipment only.
• Water: the fill valve needs a water connection, which should be done by a licensed plumber.
• Access: close to 200 kg, packed about 1255mm high. Check your doorways and how you will move it inside. It is delivered by tailgate truck to the front of your premises.

Compare similar models:

• Fagor SB-E915IM: larger 120 litre electric bratt pan, 1200mm wide, 22.5 kW
• Fagor SB-G910IM: the same 90 litre size with motorised tilting, gas fired
• Fagor M-E915BM: 150 litre electric boiling pan with indirect (water jacket) heating

Common questions:

What can I cook in a bratt pan?
It covers searing, braising, stewing, shallow frying and boiling, with thermostat control from 50°C to 310°C, so one unit can do the work of several pieces of equipment.

What plug does it need?
It doesn't use a standard 10 A plug. It runs on 415V three-phase power and must be connected by a licensed electrician.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician, with the water connected by a licensed plumber.

See all our commercial bratt pans and boiling pans.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
