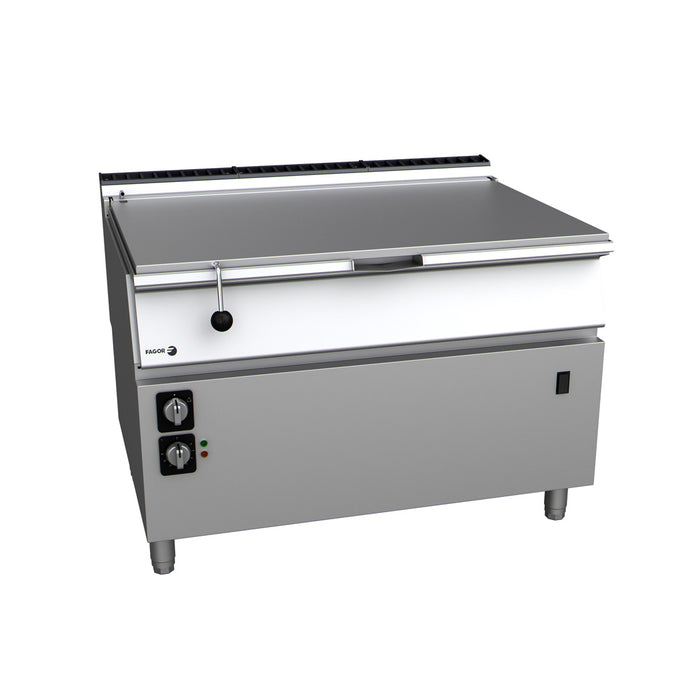

Fagor SB-E915IM - Kore 900 Series 120L Electric Motorised Tilting Bratt Pan

Fagor SB-E915IM - Kore 900 Series 120L Electric Motorised Tilting Bratt Pan

Fagor describes its tilting bratt pans as four machines in one: a fryer for small items, a fry-top for grilling and dry-heat cooking, a boiling pan for wet cooking and a bain-marie for holding. The SB-E915IM is the big electric model in the Kore 900 Series, with a 120 litre stainless steel pan, a 10mm thick base and 22.5 kW of heating. Automatic tilting takes the pan to 90° for complete emptying, and it is 1200mm wide, compared with 800mm for the 90 litre SB-E910IM.

Key features:

• 120 litre stainless steel pan with a 10mm thick base for even heat distribution
• Thermostat control up to 310°C, plus a safety thermostat
• Automatic (motorised) tilting to 90° for total emptying
• Heating switches off automatically when the pan is tilted
• Shielded stainless steel elements under the pan base
• Wide discharge opening and a minimum 3.5mm corner radius for easier cleaning
• Water fill by electric valve, switched from the front panel (filling tap at the back)
• Double-lined, spring-balanced lid with a rear drain that returns condensation to the pan
• IPX5 water protection and front access to components

Specifications:

• Model: Fagor SB-E915IM
• Capacity: 120 litres
• Dimensions: 1200 W x 930 D x 850 H mm
• Weight: 233 kg
• Power: 22.5 kW, 415V three-phase (3N~)
• Temperature control: thermostat, up to 310°C
• Pan: stainless steel, 10mm thick base
• Range: Fagor Kore 900 Series
• Packed size for delivery: 1022 x 1240 x 1140 mm

Good to know before you buy:

• Power: 22.5 kW on 415V three-phase, connected by a licensed electrician. Check your switchboard has the capacity. We supply the equipment only.
• Water: the fill valve needs a water connection at the back, which a licensed plumber should connect.
• Access: it weighs 233 kg and the packed unit is about 1240mm long, so plan the route from the kerb to the kitchen. Delivery is by tailgate truck to the front of your premises.

Compare similar models:

• Fagor SB-E910IM: smaller 90 litre electric bratt pan, 800mm wide, 15 kW
• Fagor SB-G915IM: the same 120 litre size with motorised tilting, gas fired
• Fagor M-E915BM: 150 litre electric boiling pan with indirect heating, for stocks and sauces

Common questions:

Can I deep fry in it?
Fagor says it can be used as a fryer for small-size products, as well as a fry-top, boiling pan and bain-marie.

How far does the pan tilt?
The automatic tilting system takes it to 90°, so it empties completely. Heating stops while it is tilted.

Do you install it?
We supply the equipment only. It must be connected by a licensed electrician, with the water connected by a licensed plumber.

See all our commercial bratt pans and boiling pans.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
