Fagor SB-G915IM - Kore 900 Series 120L Gas Motorised Tilting Bratt Pan

Fagor SB-G915IM - Kore 900 Series 120L Gas Motorised Tilting Bratt Pan

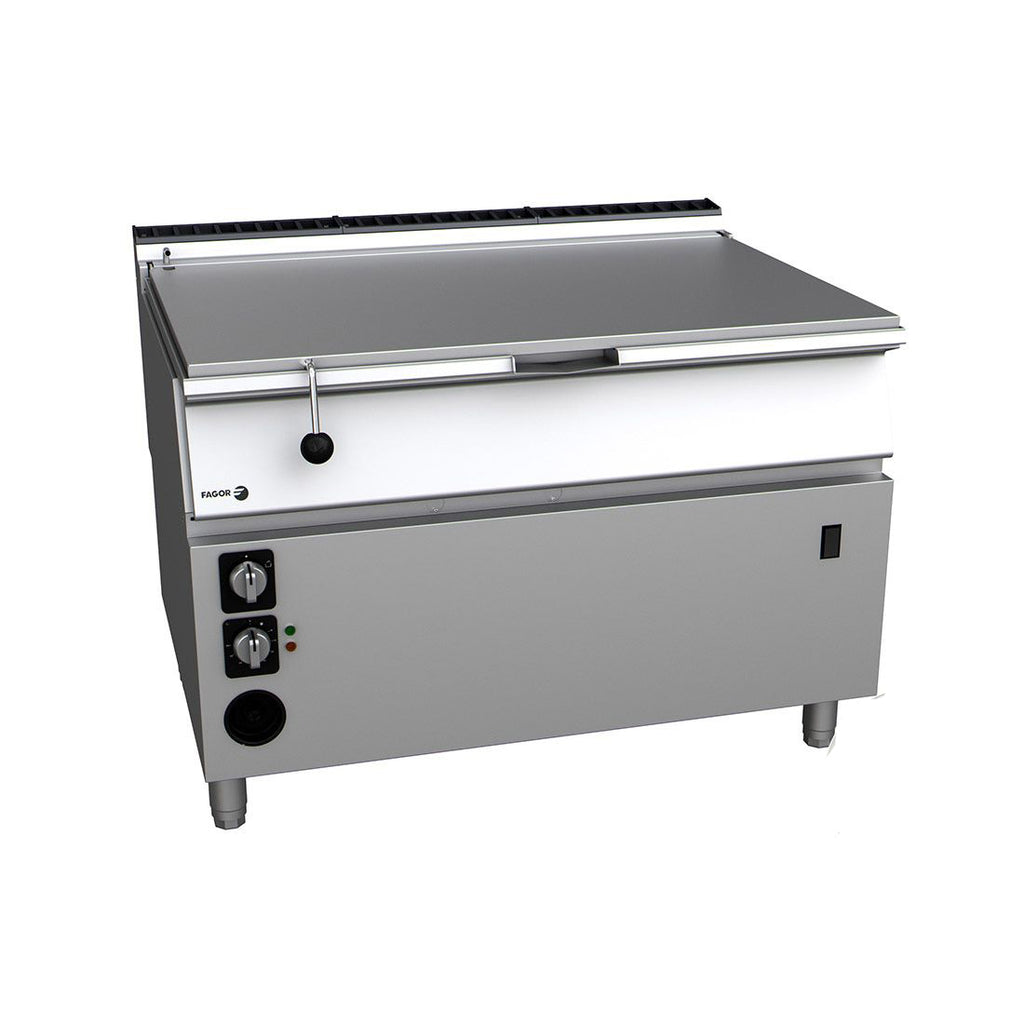

The Fagor SB-G915IM is the largest gas bratt pan in the Kore 900 Series, with a 120 litre pan in a 1200mm wide module and 90 MJ/h of burner power. It suits production kitchens, function centres and caterers that cook curries, stews, sauces and seared meats by the tray-load. A motorised lift raises the pan until it is vertical for complete emptying, and you can order it for Natural Gas or LPG at the same price. For less volume, the SB-G910IM offers 90 litres in an 800mm module.

Key features:

• 120 litre pan with a very thick base for even heat distribution
• Motorised tilting raises the pan until it is vertical, to empty it completely
• Branched burners under the pan, with thermostat control of the base from 50°C to 310°C
• Safety micro switch stops heating when the pan is raised
• Rounded corners, no edges and a wide pouring opening for easy cleaning
• Electric water fill valve with a front switch (filling pipe at the back)
• Double-walled, spring-balanced lid with a rear drainer and adjustable anti-drop system
• IPX5 water protection, front access to components and an enamelled cast iron flue protector
• Available for Natural Gas or LPG (choose when you order, same price)

Specifications:

• Model: Fagor SB-G915IM
• Capacity: 120 litres
• Dimensions: 1200 W x 930 D x 850 H mm
• Weight: 228 kg
• Gas rating: 90 MJ/h (25 kW)
• Gas type: Natural Gas or LPG
• Electrical: 240V, 10 A
• Temperature range: 50°C to 310°C
• Range: Fagor Kore 900 Series
• Packed size for delivery: 1240 x 1030 x 1140 mm

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order (same price), and make sure it matches your gas supply.
• Installation: gas appliances must be installed by a licensed gas fitter, to local regulations and under suitable ventilation or an exhaust canopy. We supply the equipment only.
• Gas supply: at 90 MJ/h, ask your gas fitter to check your meter and pipework can supply it alongside your other gas equipment.
• Water and power: the fill valve needs a water connection by a licensed plumber, plus a 240V, 10 A power supply.
• Access: it weighs 228 kg and is 1240mm long when packed. Check doorways and corners, as delivery is by tailgate truck to the front of your premises.

Compare similar models:

• Fagor SB-G910IM: 90 litre gas motorised bratt pan, 800mm wide, 64.8 MJ/h
• Fagor SB-G910I: 90 litre gas tilting bratt pan, 800mm wide
• Fagor SB-E915IM: the same 120 litre size, electric (22.5 kW, 415V three-phase)
• Fagor M-G915BM: 150 litre gas boiling pan with indirect heating

Common questions:

Natural gas or LPG?
Both are available at the same price. Choose the one that matches your gas supply when you order.

How do I fill it with water?
It has an electric fill valve operated by a switch on the front. The water pipe connects at the back of the machine.

Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter, with the water connected by a licensed plumber.

See all our commercial bratt pans and boiling pans.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
