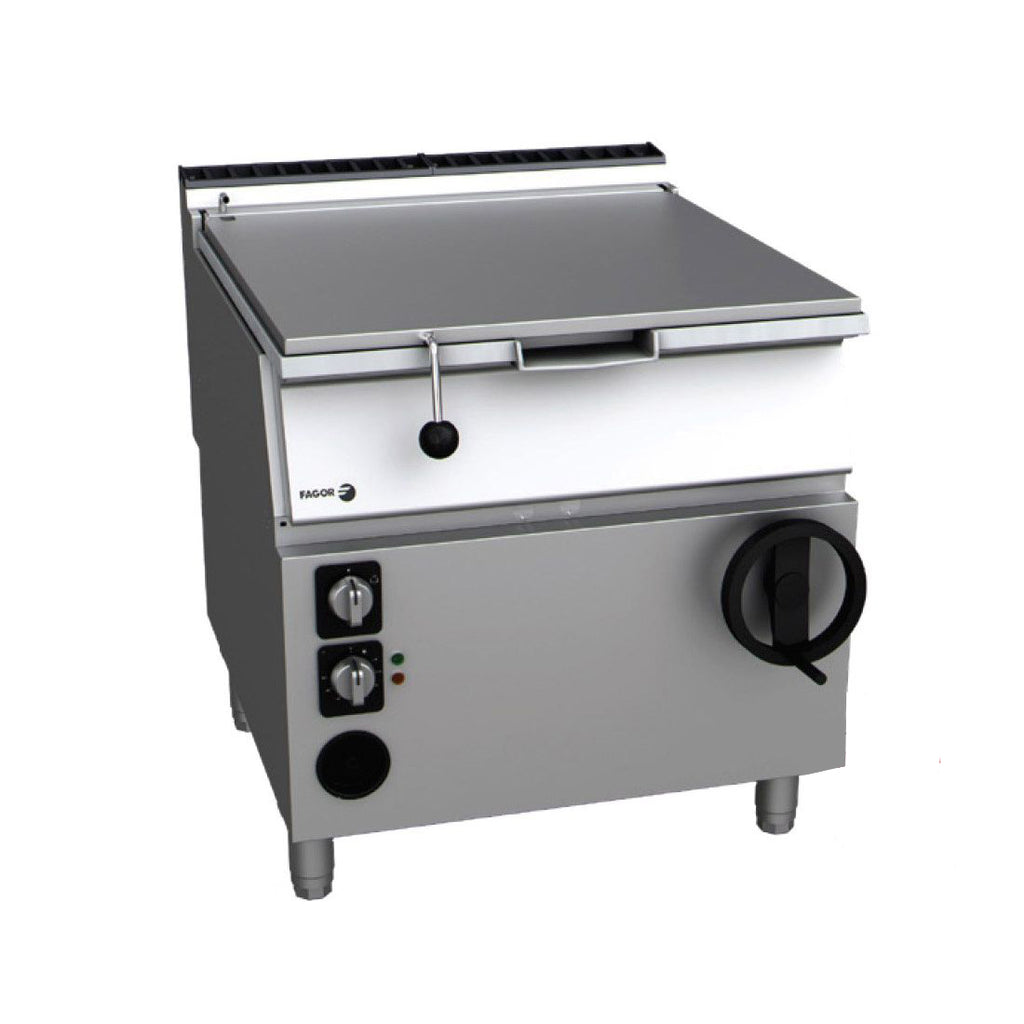

Fagor SB-G910I - Kore 900 Series 90L Gas Tilting Bratt Pan

Fagor SB-G910I - Kore 900 Series 90L Gas Tilting Bratt Pan

The Fagor SB-G910I is a 90 litre gas tilting bratt pan from the Kore 900 Series, 800mm wide and 930mm deep. Use it to sear, braise, stew, shallow fry and boil in volume, then tilt the pan right up to vertical to empty it. It has a 10mm thick stainless steel pan base, thermostat control from 50 to 310°C, a water fill valve and a switch that cuts the heat when the pan is raised. Supplied for natural gas, with LPG available on request.

Features and specifications:

• NG or LPG, 90L capacity
• Laser-cut joints, automatic welding and polishes. Screws hidden from view
• Motorised or crank operated elevation systems which are able to raise the pan until it's vertical, to empty it completely
• Versions with cast iron and stainless steel pans
• Pan design with rounded corners and no edges, and with a wide opening for unloading, making all cooking and cleaning operations easier
• Flange around the perimeter to stop any condensed water from spilling over
• The bottom of the wells is very thick (8mm for iron pans and 10 mm for stainless steel pans), guaranteeing even heat distribution
• Pans filled with water by means of electric valve operated with switch on the front of the machines. The filling pipe is located at the back of the machine
• Double walled lid with drainer at the back to redirect water of condensation back into the well
• Lid balance system by springs
• Compensation system to avoid heavy falls. Can be regulated, with the same system for all modules
• Micro breaking switch halts heating when the pan is raised
• High temperature enamelled cast iron flue protector
• Access to the components from the front
• Machines with IPX5 grade water protection
• Front access lid handle
• Temperature of the bottom of the pan controlled by thermostat, between 50 and 310°C
• The heating by branched burners located in the base of the pan, together with the high thickness of the bottom of the pan, ensure maximum uniformity of temperature distribution in all cases, guaranteeing even cooking

Dimensions: 800W x 930D x 850H mm

Warranty: 2 Years Parts & Labour plus 2 Years Parts Only when the product is registered with FED within 14 days of invoice.
