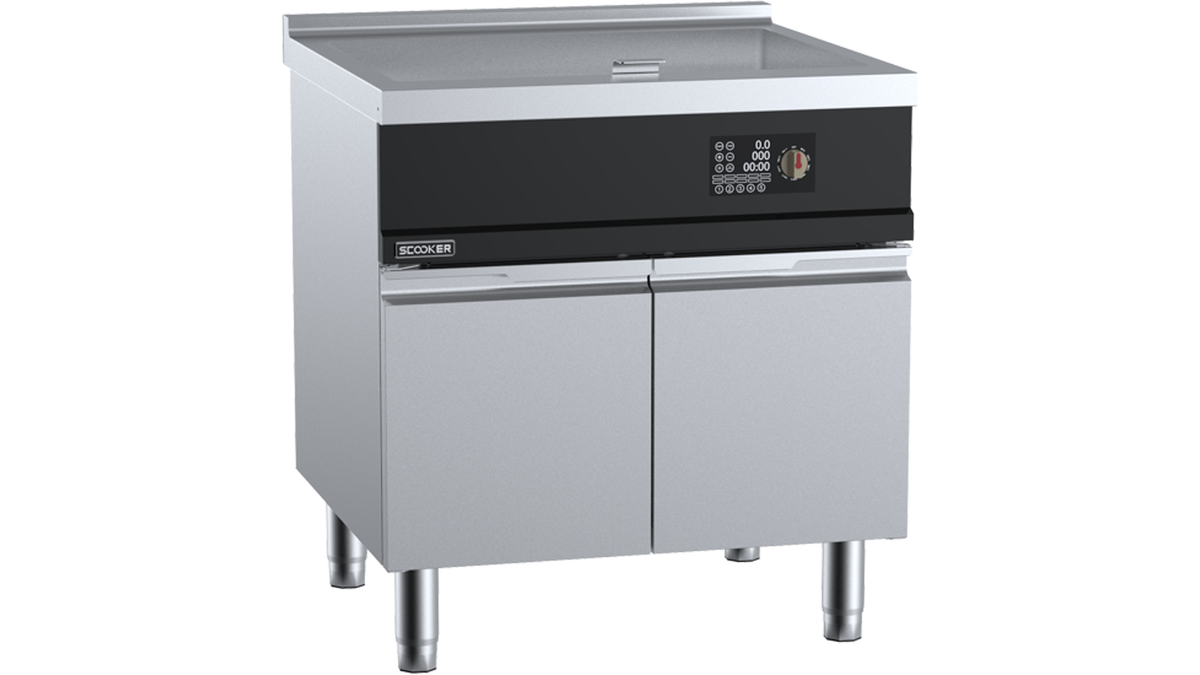

SCooker HLDG8N-C8 - 800mm Induction Multi-Function Cooker 8kW

SCooker HLDG8N-C8 - 800mm Induction Multi-Function Cooker 8kW

The SCooker HLDG8N-C8 is an 800 mm induction multi-function cooker: a fixed pan with sides rather than a flat griddle, rated at 8 kW. It suits a restaurant, hotel or institution that wants one unit for searing, shallow frying, sauces and braises. Its 720 x 530 mm pan is 120 mm deep with a drain, while the same-width HLPP8N-C9 griddle has a flat 680 x 440 mm plate.

Key features:

• Heavy duty 15 mm thick frosted multi-layered steel base
• Temperature range of 80 to 300°C, accurate to within 5°C
• Removable drain plug with a 2 inch hole for draining
• Removable pull-out grease collection tray
• Induction coil design that spreads heat evenly, with an infinitely variable power knob
• IPX5 rated display for output power, cumulative energy use, malfunction codes and menu programming
• Over-temperature cut-out with manual reset, and internal fans to cool the electronics
• One-piece 2 mm top on a heavy duty stainless steel frame, with front access to components

Specifications:

• Model: HLDG8N-C8
• Dimensions: 800 W x 750 D x 905 H mm
• Electrical: 8 kW, 415 V, 3-phase (3P+E), 50/60 Hz, 12 A per phase
• Electrical connection: hard wired or plug and lead
• Weight: 125 kg
• Pan: 720 W x 530 D x 120 H mm
• Electromagnetic compatibility: AS/NZS CISPR 14.1

Good to know before you buy:

• Installation: needs a 3-phase 415 V supply (3P+E) and must be connected by a licensed electrician, to AS/NZS 3000. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for an 800 x 750 x 905 mm unit, about 125 kg.
• Options: B+S also offers an 800 x 50 plinth kit, non-swivel rear castors (set of two) and coloured front and door panels in red or royal blue. Ask us for a price.

Compare similar models:

• 800 mm smooth griddle: flat 20 mm plate, 680 x 440 mm, 9 kW, 120 kg.
• 800 mm grooved griddle: flat grooved 20 mm plate, 680 x 440 mm, 9 kW.
• 800 mm pan noodle cooker: same width, a 50 L round chamber for boiling, 10 kW.
• Induction stock pot cooker: for large batch liquids, with a 170 L pot, 12 kW.

Common questions:

Does it need a water connection?
No. It has an electrical connection only, so there is no water feed to the pan. Plan on filling it by hand and on having somewhere for the 2 inch drain to empty into.

Griddle or multi-function cooker?
If you only cook flat items such as eggs and burgers, a griddle gives you a thicker 20 mm plate and 9 kW at this width. Choose this one if you also want to hold liquids in a pan 120 mm deep.

Is it the same as a tilting bratt pan?
No. It is a fixed pan that empties through the drain, and it stands 905 mm high like the griddles.

See all our commercial bratt pans and boiling pans.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
