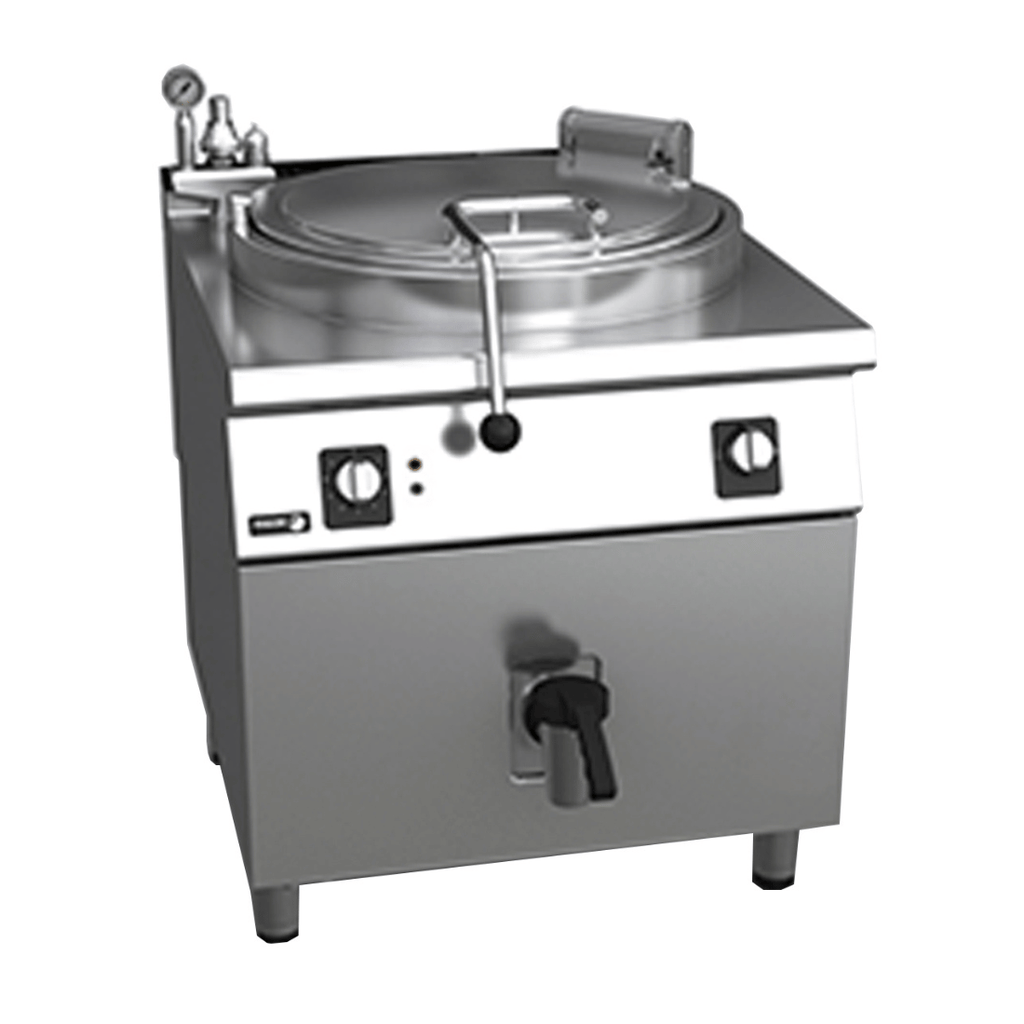

The Fagor M-E915BM is a 150 litre electric boiling pan from the Kore 900 Series, 800mm wide and 930mm deep. It uses indirect heating: the well sits inside a water jacket, so soups, stocks, sauces and custards are cooked by steam heat and are far less likely to catch. It fills through an electric valve and empties through a 2 inch safety valve.

Features and specifications:

• Capacity: 150L
• 2 mm thick 304 S/S surface top
• Laser-cut joints and hidden screws
• Double-walled lid with front handle, with diagonal opening to 75°
• Well stamped into the surface top by robotic welding, manufactured in AISI-304 stainless steel, with the bottom of the well in AISI-316L stainless steel
• Well filled with hot or cold water by an electro valve, activated with a single switch at the front panel
• 2" safety valve
• Robust and reliable 304 S/S drainage filter
• Controls with a protective base and system against water infiltration
• High-temperature enamelled cast iron flue protector
• IPX5 grade water protection
• Heating elements located in the lower part of the machine
• Heating controlled by energy regulator and pressure switch
• Bain-marie chamber around the well, with an automatic filling system when the machine is connected
• Automatic chamber level control with quadruple security: pressure switch to control the pressure in the chamber, overpressure security valve, thermostat to limit overheating in the chamber, and pressure gauge incorporated into the surface top
• Automatic flushing
• Heating at the bottom of the pan acts on the water in the surrounding chamber, meaning that the saturated steam generated at a temperature of 107 °C heats the bottom and sides of the well in a uniform manner
• The temperature reached is lower than that obtained with direct heating
• Stamped pan floor to avoid deformations
• Indicator light

Hard-wired 415V three-phase connection — installation by a licensed electrician.

Dimensions: 800W x 930D x 850H mm

Warranty: 2 Years Parts & Labour plus 2 Years Parts Only when the product is registered with FED within 14 days of invoice.
