Baron Q90SG/E403P - Queen 9 Electric Chargrill 400mm
Baron Q90SG/E403P - Queen 9 Electric Chargrill 400mm
SKU: Q90SG/E403P
Prefer to talk? Call 0447 483 035 Mon–Fri, 9am–5pm (Sydney time)
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply. Warranty claims
- Tax invoice with our ABN for every order
- Secure checkout
Before it arrives
- Size: 400 W x 900 D x 250 H mm. Check doorways and access on the way in.
- Power: 400V three phase (3N), 50–60 Hz, 8.4 kW. Three-phase power needs a licensed electrician to connect.
We supply the equipment only. Connection and installation are by your own licensed trades. Full specifications are in the product details below.
Product details

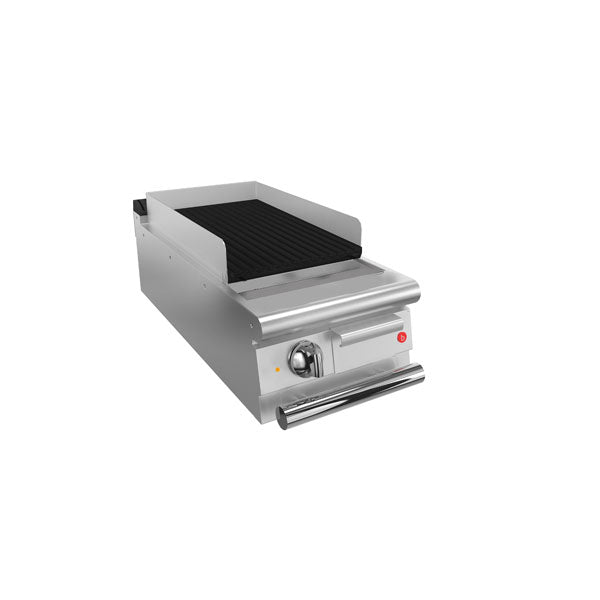

Baron Q90SG/E403P - Queen 9 Electric Chargrill 400mm
The Baron Q90SG/E403P packs a single-zone electric chargrill into a 400mm wide, 900mm deep Queen 9 module. With 8.4 kW behind one reversible cast iron grate and temperatures up to 350°C, it has more power than the 5.2 kW Queen 7 E403P of the same width. It is a neat way to add a grill section to a Queen 9 line in a restaurant or hotel kitchen without gas.
Key features:
- 1 heating zone, 8.4 kW
- Heavy-duty reversible cast iron grate
- Adjustable temperature up to 350°C
- Two-level grid height adjustment
- Stainless steel power-boosting system (PBS) for heat where you cook
- Tilting heating elements for easier cleaning
- Grease channel with drain hole, removable grease and residue drawer, and internal residue drawer
- IPX5 water-jet rated knobs, AISI 304 stainless steel
Specifications:
- Model: Baron Q90SG/E403P
- Heating zones: 1
- Temperature: adjustable up to 350°C
- Dimensions: 400 W x 900 D x 250 H mm (bench model)
- Power: 400V three phase (3N), 50–60 Hz, 8.4 kW
- Grate: reversible cast iron
- Construction: AISI 304 stainless steel, 2 mm (20/10) top
- Origin: Italy
- Packed size for delivery: 440 W x 1020 D x 550 H mm
Good to know before you buy:
- Power: 8.4 kW on three-phase power. It must be connected by a licensed electrician. We supply the equipment only.
- Ventilation: chargrilling produces smoke and grease, so plan for a suitable exhaust canopy.
- Mounting: it is a bench model. A 400mm Queen 9 floor stand (90CAV4) or open cabinet (90VA400) is available to suit.
- Access: the packed unit is 440mm wide and 1020mm deep. It is delivered by tailgate truck to the front of your premises, and standard delivery doesn't include bringing it inside, up stairs or unpacking.
Compare similar models:
- Baron Q90SG/E803P: 800mm, 2 heating zones, 16.8 kW
- Baron Q90SG/E123P: 1200mm, 3 heating zones, 25.2 kW
- Baron Q70SG/E403P: Queen 7 (700mm deep) 400mm version, 5.2 kW
- Baron Q90SGL/G403: 400mm gas lava rock chargrill
Common questions:
Is it suitable for fish as well as meat?
Yes. The cast iron grate is reversible for meat or fish, and Baron also offers stainless steel grates (Q92GTI rod grate, Q92GI grid) for this size.
Can I add a smoker or humidifier?
Yes. The Queen 9 smoker kit (Q9AF) and a 400mm electric grill humidifier kit (Q9KU4E) are available. Ask us for prices.
Do you install it?
We supply the equipment only. It must be connected by a licensed electrician in your area.
See all our commercial grills.
Warranty: 2 years parts and labour (24 months each) through Baron's Australian distributor, Scots Ice. Exclusions apply.
