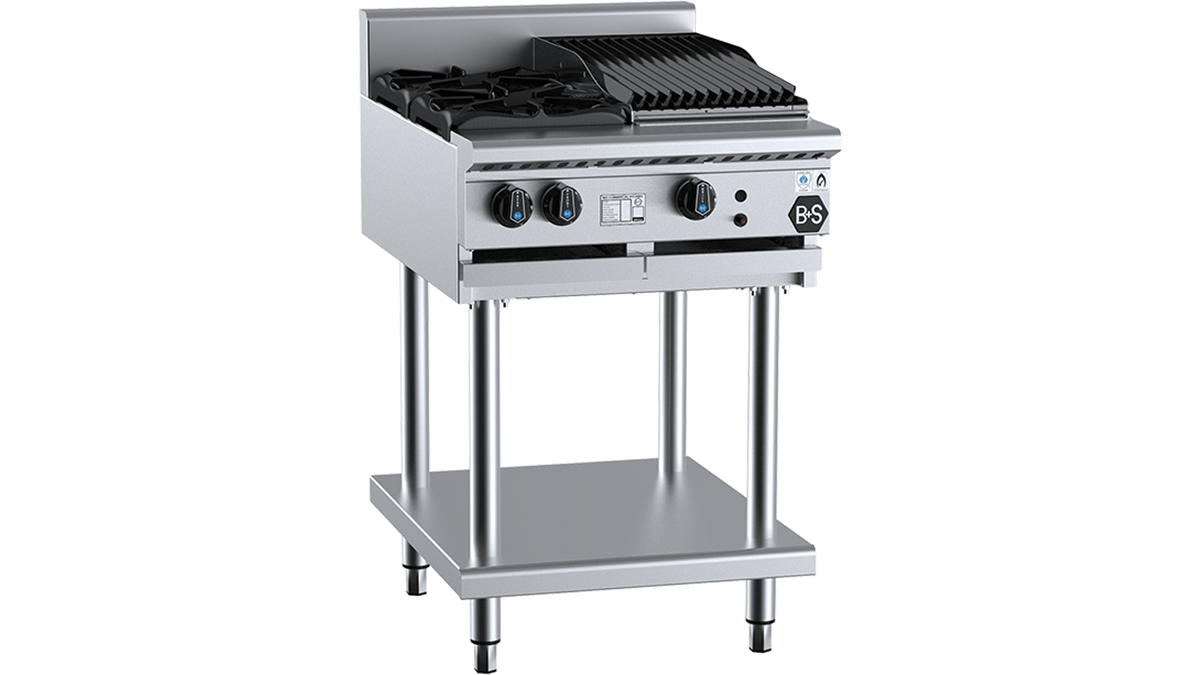

B+S Black BT-SB2-CBR3 - 600mm Gas 2 Burner & Char Broiler on Stand

B+S Black BT-SB2-CBR3 - 600mm Gas 2 Burner & Char Broiler on Stand

The BT-SB2-CBR3 puts two open burners beside a 300mm char broiler on a single 600mm wide stand. It suits a cafe or small restaurant that wants burners and a char grill but only has room for one unit. It is the smallest char broiler combination in the B+S Black range: the BT-SB2-GRP3 has the same layout with a flat grill plate, and the BT-SB2-CBR6 doubles the broiler to 600mm in a 900mm frame.

Key features:

• 2 open burners, each a 31 MJ black enamelled, Italian made burner
• 300mm char broiler with a 34 MJ stainless steel U-burner per 300mm section
• Heavy duty cast iron J-grates and radiant hoods
• Reversible J-grates give you an inclined or a flat cooking surface
• Heavy duty Italian made vitreous enamelled trivets, with a removable pressed top spillage tray and two-piece burners for cleaning
• Flame failure included as standard, with piezo ignition to the pilot on the char broiler burner
• Multi-setting gas valve for greater control of the flame
• AISI 304 grade stainless steel with a heavy duty stainless steel frame and undershelf
• Easy to clean fat spillage trays

Specifications:

• Model: BT-SB2-CBR3
• Dimensions: 600 W x 840 D x 1030 H mm
• Gas: 96 MJ/h natural gas, 80 MJ/h LPG
• Gas connection: 3/4 inch BSP male
• Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
• Gas regulator: included with the unit
• Gas approval: GMK 10686

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 600 x 840 x 1030 mm unit.
• Options: B+S also offers a pilot for the open burners (priced per burner), non-swivel rear castors (set of two), and a 600 x 50 mm plinth kit. Ask us for a price.

Compare similar models:

• BT-SB2-GRP3: same 600mm width, with a 300mm grill plate instead of the char broiler

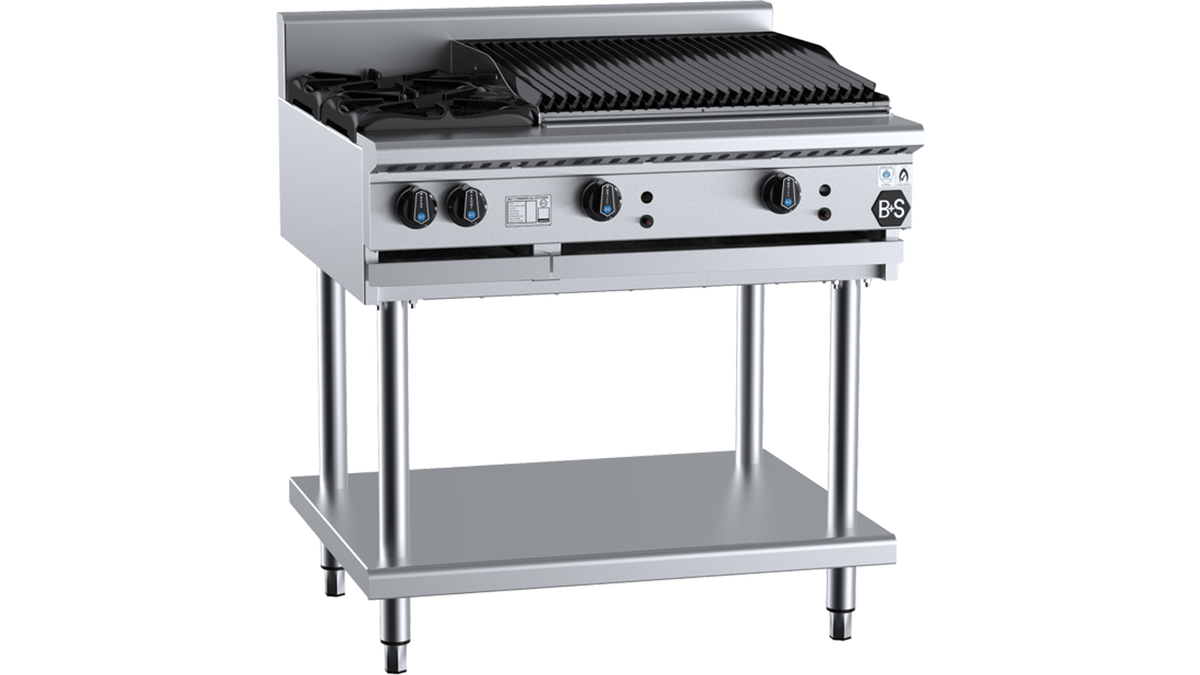

• BT-SB2-CBR6: two burners with a 600mm char broiler, 900mm wide, 130 MJ/h natural gas
• BT-SB4-CBR3: four burners with the same 300mm char broiler, 900mm wide
• BT-SB2-CBR3BM: the same cooking top with no stand, for mounting on a bench

Common questions:

Should I choose this or the grill plate version?
Choose this one to cook on cast iron grates over the burner, and the BT-SB2-GRP3 for a flat steel plate. They take up the same floor space. On natural gas this model draws 96 MJ/h against 84 MJ/h for the grill plate version.

Is there a version with an oven underneath?
Yes. The OV-SB2-CBR3 has two burners and a 300mm char broiler over a gas oven, in the same 600 x 840 x 1030 mm size. It draws 125 MJ/h natural gas or 108 MJ/h LPG.

Where does the fat go?
The grates have drainage channels that direct fat to a spillage tray at the front of the unit.

See all our commercial cooktops.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
