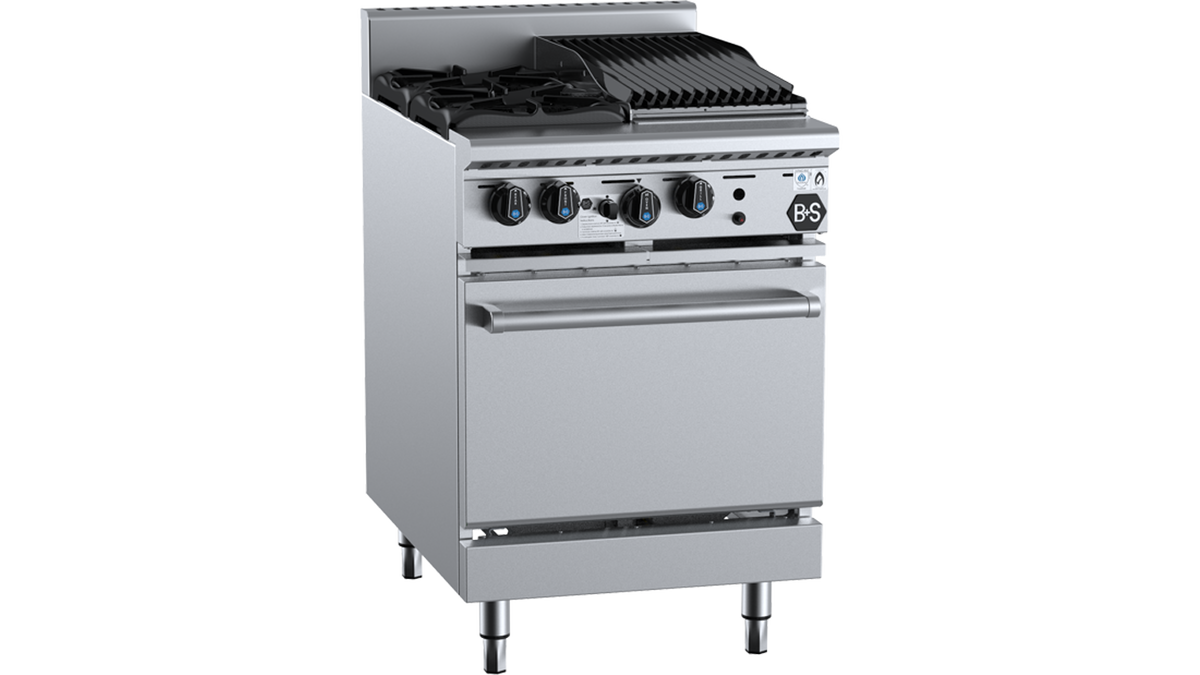

B+S Black OV-SB2-CBR3 - 600mm 2 Burner & Char Broiler Gas Range with Oven

B+S Black OV-SB2-CBR3 - 600mm 2 Burner & Char Broiler Gas Range with Oven

The OV-SB2-CBR3 fits two 31 MJ open burners, a 300mm char broiler and a gas oven into a 600mm wide range. It suits a small cafe or restaurant that wants to boil, grill and bake from one spot. The OV-SB2-GRP3 swaps the grates for a flat plate, and the OV-SB4-CBR3 adds two burners and a wider oven.

Key features:

• 2 x 31 MJ black enamelled, Italian made open burners on vitreous enamelled trivets
• 300mm char broiler with a 34 MJ U-burner, cast iron radiant hood and reversible J-grates for an inclined or flat surface
• 29 MJ stainless steel oven burner with natural convection and a solid mild steel base plate for even heat
• German made thermostat for accurate temperature control
• Insulated drop down door with a spring hinge system
• Flame failure standard, with a multi-setting gas valve
• Heavy duty AISI grade stainless steel frame, fat spillage trays and easy access to components

Specifications:

• Model: OV-SB2-CBR3
• Dimensions: 600 W x 840 D x 1030 H mm
• Gas: 125 MJ/h natural gas, 108 MJ/h LPG
• Burners: 2 x 31 MJ open, 1 x 34 MJ char broiler, 1 x 29 MJ oven
• Internal oven: 630 D x 485 W x 290 H mm (height from lowest rack position)
• Gas connection: 3/4 inch BSP female, regulator included
• Supply pressure: 1.0 kPa natural gas, 2.6 kPa LPG
• Fan forced option: 10 A plug, 1.2 m lead, 30 W fan
• Gas approval: GMK 10686

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order, to match your gas supply.
• Installation: gas appliances must be connected by a licensed gas fitter, to local regulations and under a suitable exhaust canopy. We supply the equipment only.
• Access: delivered by tailgate truck to the front of your premises. Check doorways for a 600 x 840 x 1030 mm unit.
• Options: B+S also offers a fan forced oven, a pilot per burner, non-swivel rear castors and a 600 x 50 mm plinth kit. Ask us for a price.

Compare similar models:

• OV-SB2-GRP3 (600mm): same layout with a 300mm grill plate instead of the char broiler.
• OV-SB4 (600mm): same width with four open burners and no char section.
• BT-SB2-CBR3 (600mm): same top on an open stand with an undershelf and no oven.

Common questions:

Will my trays fit the oven?
The oven is 630 mm deep, 485 mm wide and 290 mm high, measured from the lowest rack position to the top panel. Check your trays against those sizes.

What does the fan forced option need?
It has a 1.2 m lead and 10 A plug, so you need a power point within reach as well as the gas connection.

How is the gas load split?
On natural gas, the two open burners account for 62 MJ/h, the char broiler burner for 34 MJ/h and the oven burner for 29 MJ/h.

See all our commercial stoves and oven ranges.

Warranty: 24-month B+S parts and labour warranty, from the date of installation.
