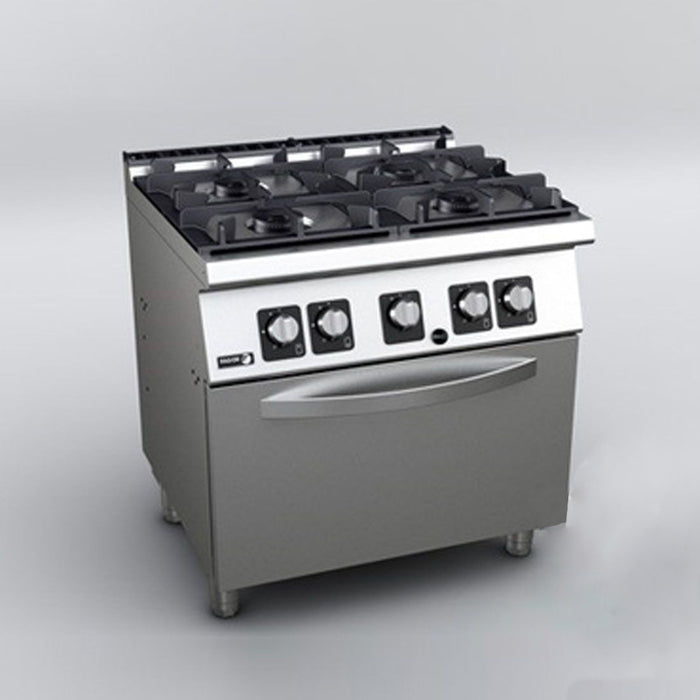

Fagor C-G741H - Kore 700 4 Burner Gas Range with Gas Oven

Fagor C-G741H - Kore 700 4 Burner Gas Range with Gas Oven

The Fagor C-G741H puts four open burners over a GN 2/1 static gas oven in an 800mm wide, 730mm deep Kore 700 range, giving restaurants, cafes, pubs and clubs a full cooking station in one footprint. Each burner is rated at 8 kW and the oven at 8.6 kW, with thermostatic control from 125°C to 310°C. It is the 4 burner sister of the 1200mm C-G761H, and the same burner top comes without an oven as the bench-top C-G740H.

Key features:

• Four double-crown burners, 8 kW each, with nickel-plated cast iron diffusers that spread the flame evenly under the pan
• 397 x 580 mm double grates in RAAF enamelled cast iron; the 75mm gap between the centre bars holds pans as small as 8 cm across
• Low-consumption pilot light and thermocouple built into each burner body
• GN 2/1 static gas oven, 8.6 kW, with a thermostatic valve from 125°C to 310°C and piezo ignition
• All stainless steel oven chamber with a cast iron floor, side-loading trays and anti-tip rails on three levels
• Fibreglass door seal, deep-drawn oven frame and a detachable oven door
• Deep-drawn 1.5mm AISI-304 stainless steel top with laser-cut joints, automatic welding and hidden screws
• Enamelled cast iron flue protector sits flush with the grates, adding usable space for large pots
• Available for Natural Gas or LPG (choose when you order, same price)

Specifications:

• Model: Fagor C-G741H
• Burners: 4 x 8.0 kW open burners
• Oven: GN 2/1 static gas oven, 8.6 kW, 125°C to 310°C, rails on 3 levels
• Total gas rating: 40.6 kW (146.16 MJ/h)
• Gas type: Natural Gas or LPG
• Gas connection: R 3/4 inch
• Dimensions: 800 W x 730 D x 850 H mm
• Weight: 107 kg
• Construction: 1.5mm AISI-304 stainless steel top, stainless steel feet with adjustable height
• Range: Fagor Kore 700 Series
• Packed size for delivery: 840 x 822 x 1255 mm, 125 kg

Good to know before you buy:

• Gas type: choose Natural Gas or LPG when you order (same price), and make sure it matches your gas supply.
• Installation: gas appliances must be installed by a licensed gas fitter, to local regulations and under suitable ventilation or an exhaust canopy. We supply the equipment only.
• Gas supply: at 40.6 kW in total, ask your gas fitter to confirm your meter and pipework can carry it alongside your other gas equipment.
• Access: it arrives packed at 840 x 822 x 1255 mm and 125 kg, delivered by tailgate truck to the front of your premises. Check doorways and the route to your kitchen.

Compare similar models:

• Fagor C-G761H: 1200mm wide, 6 burners over the same GN 2/1 gas oven
• Fagor C-G740H: the same 4 burner top as a bench-top unit, no oven
• Fagor C-E741: Kore 700 electric range with 4 plates and an oven
• Fagor C-G941H: Kore 900 4 burner gas range with oven, 930mm deep

Common questions:

Does the oven need a power point?
No. Fagor's spec sheet lists no electrical connection for this range. The oven burner uses a pilot light, thermocouple and piezo ignition.

What trays fit the oven?
It is a GN 2/1 oven with rails on three levels. Trays slide in sideways, and the rails have an anti-tip system so they don't tip when pulled out.

Do you install it?
We supply the equipment only. It must be connected by a licensed gas fitter in your area.

See all our commercial stoves.

Warranty: 2 years parts and labour, plus an extra 2 years on parts when you register the product with FED within 14 days of invoice.
